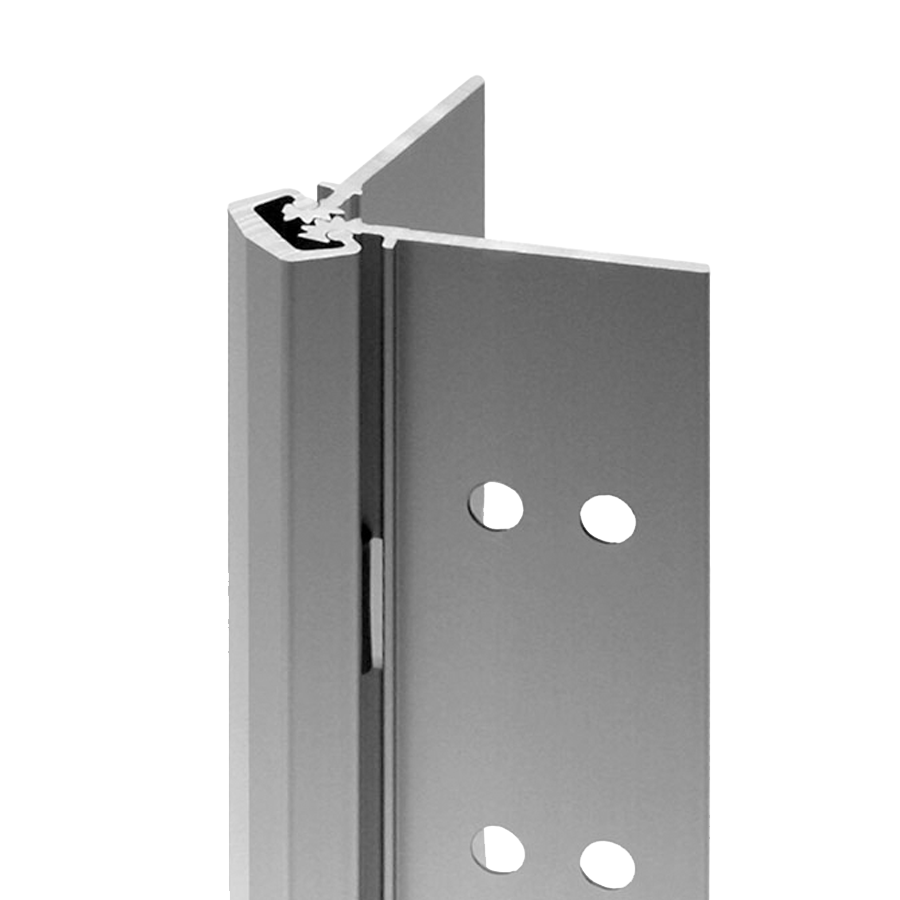

Select Products SL11-83-CL-HD300 ATW-12 90-DEGREE ATW-12 Heavy Duty Geared Continuous Hinge, 12 Wire, 83in, 300lbs Capacity

SELECT Products Limited SL11-83-CL-HD300 ATW-12 is a robust and efficient solution designed for high-traffic door applications. This full mortise heavy-duty geared continuous hinge measures 83 inches in length and supports a remarkable load capacity of up to 300 lbs, making it perfect for demanding environments. With an accessible through-wire power transfer and a 90-degree door opening cover plate, it ensures seamless operation while maintaining security. Crafted from clear anodized aluminum, this hinge boasts durability and longevity, proven to withstand over 25 million cycles-equivalent to 60 years of service on average. The SL11 series is designed with sustainability in mind, minimizing material waste and reducing maintenance costs. Its no door inset and flush mount design further enhance its versatility, making it suitable for various installation types. The hinge is compatible with conventional overhead surface, concealed sliding arm overhead, or floor closers, providing flexibility in your design choices. Available in multiple finishes, including clear, dark bronze, and black anodized aluminum, you can select the perfect look for your project. With a never-ending warranty backing its quality, the SELECT Products Limited SL11-83-CL-HD300 ATW-12 hinge is an investment in reliability and performance for any building professional or knowledgeable homeowner.

ATW-12, Accessible Through-Wire Power Transfer, 12 Wire, Full Mortise Heavy Duty Geared Continuous Hinge, No Door Inset, Flush Mount, 83in, ATW 45-11/32in Centerline From Top of Hinge, 90-Degree Door Opening Cover Plate, Up to 300lbs, High Frequency, 628/US28/CL Clear Anodized Aluminum

The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles - equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They're a hassle-free way to make a greener building.

Features:

• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
• Load/Frequency Rating: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300 lb. without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
• Heavy Duty (LL): Our heavy duty 600 with additional fastener holes for low- to medium-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or extra-wide doors.
• Finishes: All SL11 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL11 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
79" HD600	19	19
83" HD300/HD600	19	19
85" HD300/HD600	19	19
95" HD300/HD600	21	21
120" HD300/HD600	23	23
83" LL	26	26
85" LL	26	26
95" LL	30	30
120" LL	34	34
