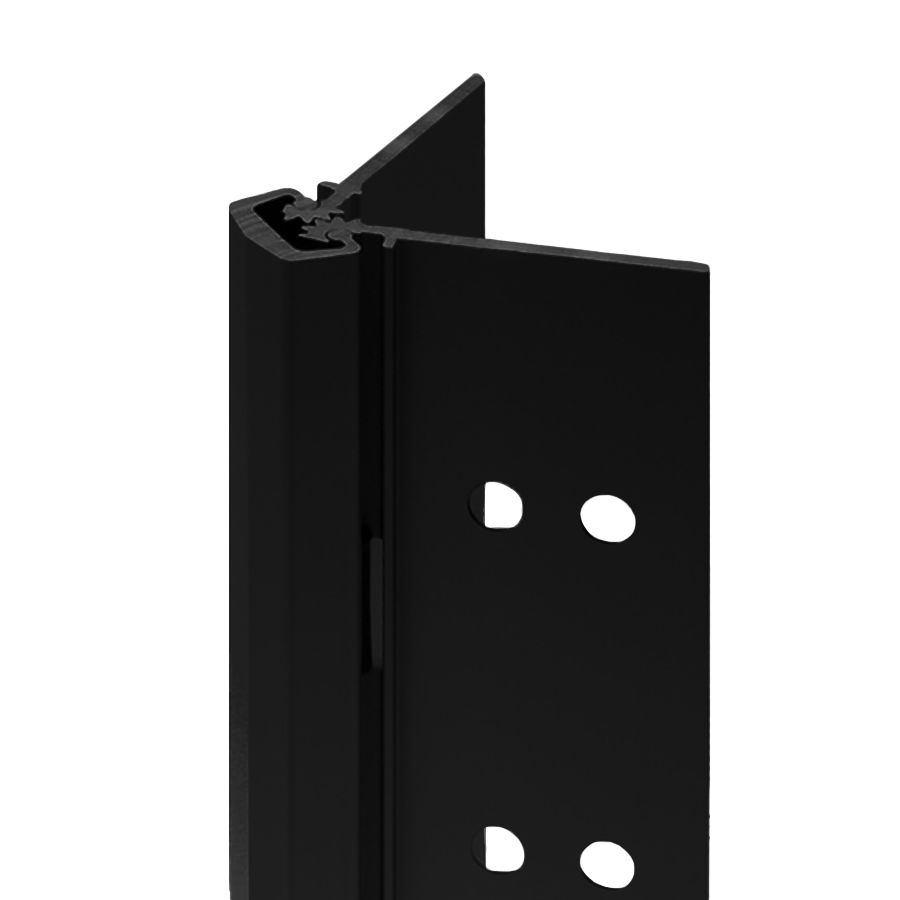

Select Products SL11-95-BK-HD600 ATW-12 90-DEGREE ATW-12 Heavy Duty Geared Continuous Hinge, 12 Wire, 95in, Black Anodized

SELECT Products Limited SL11-95-BK-HD600 ATW-12 is a robust and reliable heavy-duty geared continuous hinge designed to handle the demands of high-traffic environments. With a 90-degree door opening and a weight capacity of up to 600 lbs, this hinge is perfect for applications where durability and strength are essential. The hinge features a full mortise design with no door inset, allowing for a flush mount that integrates seamlessly into your project. Constructed from high-quality aluminum with a sleek black anodized finish, the SL11-95-BK-HD600 ATW-12 boasts a length of 95 inches and a centerline measurement of 52-5/8 inches from the top of the hinge. Its accessible through-wire power transfer capability supports efficient wiring for electronic access systems, enhancing security and functionality. Designed to endure up to 25 million cycles, this hinge ensures longevity, reducing maintenance costs and resource consumption. Custom lengths are available, and the hinge accommodates conventional overhead surface closers, making it versatile for various door configurations. The SL11 line is backed by a continuous warranty, emphasizing SELECT Products Limited's commitment to quality and sustainability. Choose the SL11-95-BK-HD600 ATW-12 for a hassle-free, environmentally friendly solution for your heavy-duty hinge needs.

ATW-12, Accessible Through-Wire Power Transfer, 12 Wire, Full Mortise Heavy Duty Geared Continuous Hinge, No Door Inset, Flush Mount, 95in, ATW 52-5/8in Centerline From Top of Hinge, 90-Degree Door Opening Cover Plate, Up to 600lbs, High Frequency, 315/BK Black Anodized

The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles - equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They're a hassle-free way to make a greener building.

Features:

• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
• Load/Frequency Rating: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300 lb. without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
• Heavy Duty (LL): Our heavy duty 600 with additional fastener holes for low- to medium-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or extra-wide doors.
• Finishes: All SL11 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL11 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
79" HD600	19	19
83" HD300/HD600	19	19
85" HD300/HD600	19	19
95" HD300/HD600	21	21
120" HD300/HD600	23	23
83" LL	26	26
85" LL	26	26
95" LL	30	30
120" LL	34	34
