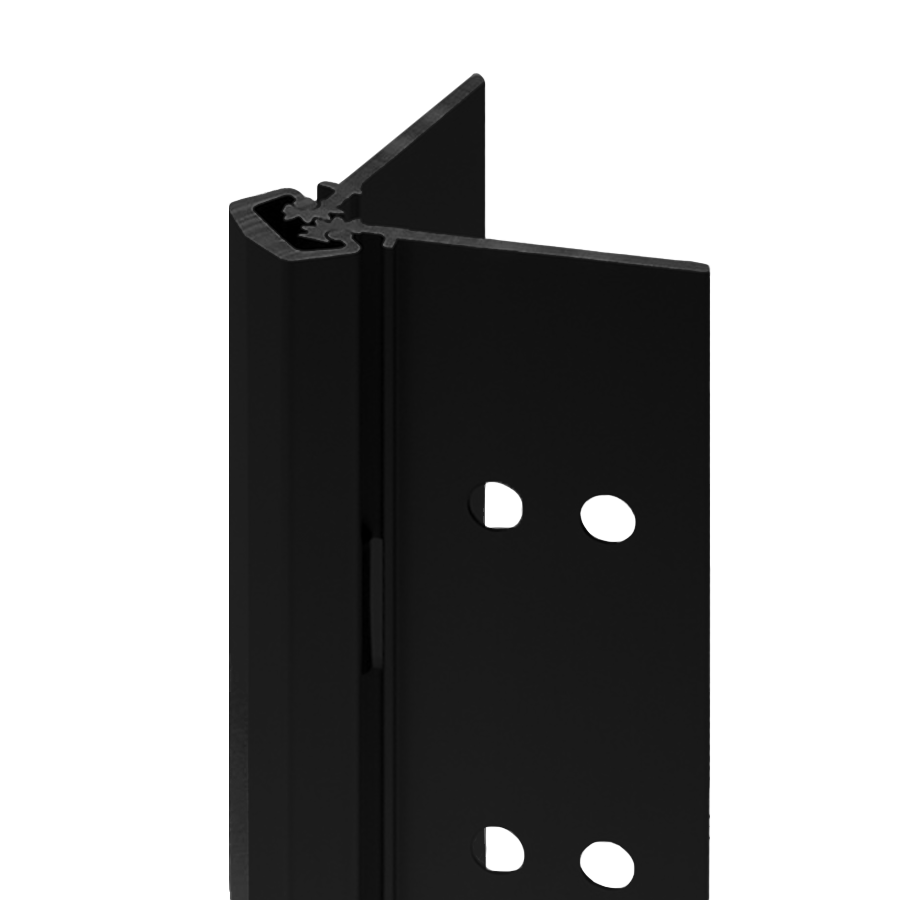

Select Products SL11-95-BK-HD600 Heavy Duty 95in Geared Continuous Hinge, 600lb, High Frequency, Black

SELECT Products Limited SL11-95-BK-HD600 Full Mortise Heavy Duty Geared Continuous Hinge is engineered for high-traffic environments, capable of supporting doors weighing up to 600 lbs. This 95-inch hinge boasts a robust design that stands up to 25 million cycles, equating to over 60 years of reliability for the average high-traffic door. By utilizing this hinge, you not only enhance durability but also contribute to sustainability, as fewer replacements mean reduced waste and lower maintenance costs. Constructed from anodized aluminum, the SL11 hinge is available in black, clear, and dark bronze finishes, with custom options to suit specific project needs. Its heavy-duty rating is ideal for 1-3/4" doors with a maximum width of 48", providing seamless functionality without frame or door reinforcement. For doors exceeding 450 lbs, rivnuts are recommended to ensure structural integrity. The SL11-95-BK-HD600 is compatible with various overhead closers, making it versatile for different applications. With a screw count of 21 for both door and frame, installation is straightforward. This hinge not only offers exceptional performance but is backed by a continuous warranty, reflecting SELECT Products Limited's commitment to quality and reliability. Experience peace of mind with a hinge designed to last.

Full Mortise Heavy Duty Geared Continuous Hinge, 95in, Up to 600lb. High Frequency, BK Black

The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles - equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They're a hassle-free way to make a greener building.

Features:

• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
• Load/Frequency Rating: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300 lb. without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
• Heavy Duty (LL): Our heavy duty 600 with additional fastener holes for low- to medium-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or extra-wide doors.
• Finishes: All SL11 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL11 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
79" HD600	19	19
83" HD300/HD600	19	19
85" HD300/HD600	19	19
95" HD300/HD600	21	21
120" HD300/HD600	23	23
83" LL	26	26
85" LL	26	26
95" LL	30	30
120" LL	34	34
