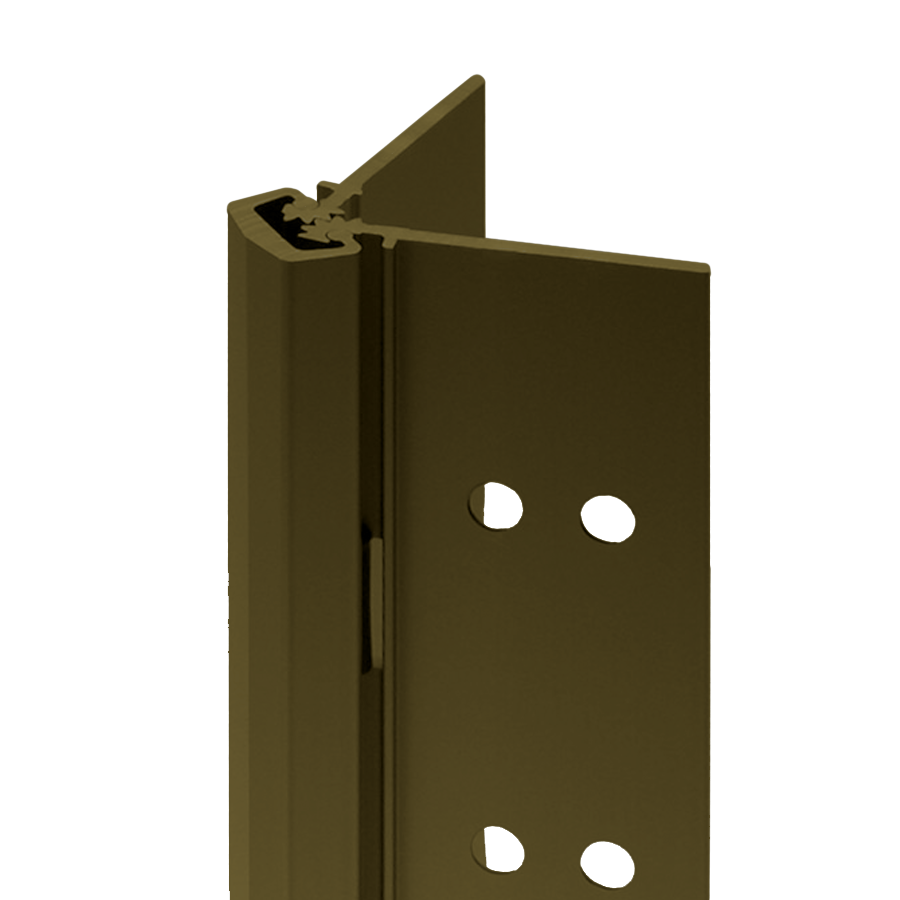

Select Products SL11-95-BR-HD600 ATW-12 180-DEGREE ATW-12 Heavy Duty Geared Continuous Hinge, 12 Wire, 180-Degree Opening, Dark Bronze

SELECT Products Limited SL11-95-BR-HD600 ATW-12 offers a robust solution for high-traffic doors with its full mortise heavy-duty geared continuous hinge. Designed for maximum performance, this hinge accommodates doors weighing up to 600 lbs, making it ideal for demanding environments. The 95-inch length and 180-degree door opening enhance accessibility, while the accessible through-wire power transfer ensures seamless integration with electrical systems. Constructed from durable aluminum, the SL11 hinge is engineered to endure up to 25 million cycles, providing a lifespan equivalent to over 60 years of average use. This longevity not only reduces the frequency of replacements but also minimizes resource consumption and waste, making it a sustainable choice for modern buildings. The dark bronze anodized finish offers both durability and aesthetic appeal. Installation is facilitated with a comprehensive screw count designed for optimal support, including 21 screws for both the door and frame. The SL11 hinge is compatible with various closer types, ensuring versatility in application. Available in clear, dark bronze, and black anodized finishes, this hinge can be customized to meet specific project needs. Choose the SELECT Products Limited SL11-95-BR-HD600 ATW-12 for a reliable, environmentally friendly, and long-lasting hinge solution.

ATW-12, Accessible Through-Wire Power Transfer, 12 Wire, Full Mortise Heavy Duty Geared Continuous Hinge, No Door Inset, Flush Mount, 95in, ATW 52-5/8in Centerline From Top of Hinge, 180-Degree Door Opening Cover Plate, Up to 600lbs, High Frequency, 313/BR Dark Bronze Anodized

The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles - equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They're a hassle-free way to make a greener building.

Features:

• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
• Load/Frequency Rating: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300 lb. without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
• Heavy Duty (LL): Our heavy duty 600 with additional fastener holes for low- to medium-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or extra-wide doors.
• Finishes: All SL11 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL11 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
79" HD600	19	19
83" HD300/HD600	19	19
85" HD300/HD600	19	19
95" HD300/HD600	21	21
120" HD300/HD600	23	23
83" LL	26	26
85" LL	26	26
95" LL	30	30
120" LL	34	34
