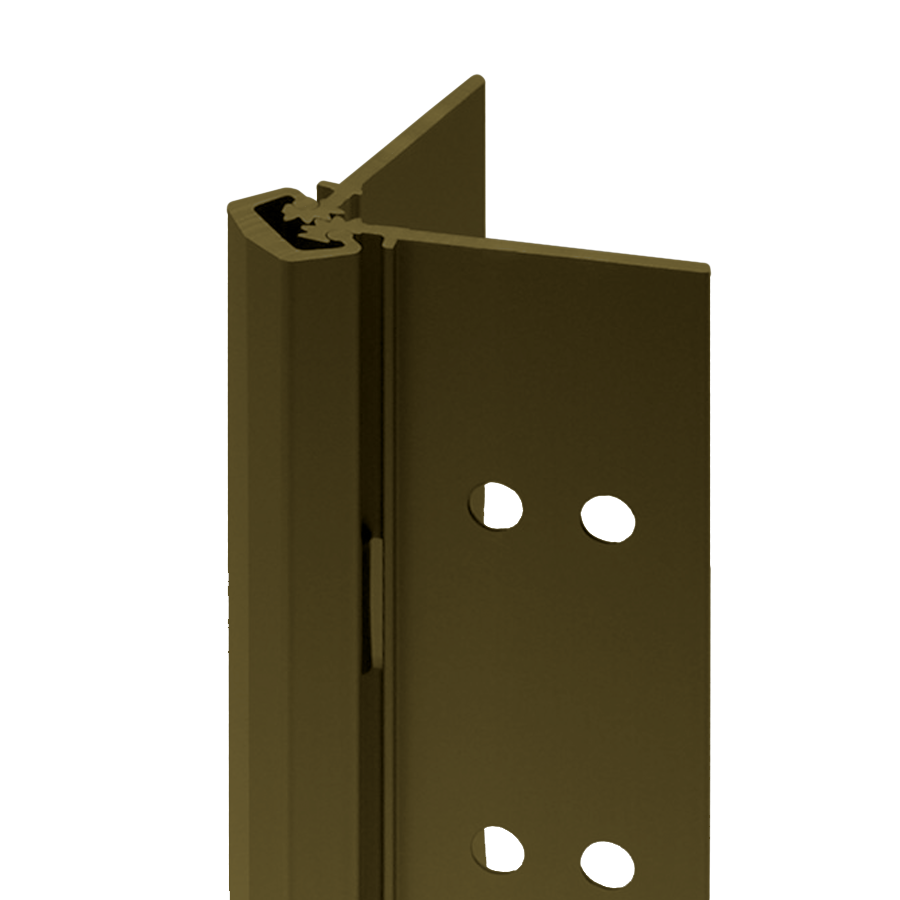

Select Products SL11-95-BR-HD600 ATW-12 90-DEGREE ATW-12 Heavy Duty Geared Continuous Hinge, 12 Wire, 95in, 600lbs, Dark Bronze

SELECT Products Limited SL11-95-BR-HD600 ATW-12 90-Degree Accessible Through-Wire Power Transfer hinge is engineered for durability and high performance, specifically designed for heavy-duty applications. This full mortise, geared continuous hinge boasts a robust construction capable of supporting doors up to 600 lbs, making it ideal for high-traffic environments. Measuring 95 inches in length, this hinge features a 90-degree door opening and a cover plate that enhances its aesthetic appeal. The accessible through-wire power transfer allows for seamless integration with electronic access control systems, ensuring that your security measures are both effective and unobtrusive. With a maximum door width of 48 inches and compatibility with 16-gauge hollow metal or 1/8-inch aluminum doors, it accommodates a variety of installations. The SL11 hinge is available in a sleek 313/BR dark bronze anodized finish, offering not only strength but also a sophisticated look. Designed to endure 25 million cycles-equivalent to over 60 years of reliable use-this hinge minimizes the need for replacements, ultimately reducing waste and maintenance costs. Backed by SELECT's continuous warranty, the SL11-95-BR-HD600 is a smart choice for those seeking a long-lasting and environmentally friendly solution for their building's needs.

ATW-12, Accessible Through-Wire Power Transfer, 12 Wire, Full Mortise Heavy Duty Geared Continuous Hinge, No Door Inset, Flush Mount, 95in, ATW 52-5/8in Centerline From Top of Hinge, 90-Degree Door Opening Cover Plate, Up to 600lbs, High Frequency, 313/BR Dark Bronze Anodized

The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles - equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They're a hassle-free way to make a greener building.

Features:

• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
• Load/Frequency Rating: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300 lb. without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
• Heavy Duty (LL): Our heavy duty 600 with additional fastener holes for low- to medium-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or extra-wide doors.
• Finishes: All SL11 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL11 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
79" HD600	19	19
83" HD300/HD600	19	19
85" HD300/HD600	19	19
95" HD300/HD600	21	21
120" HD300/HD600	23	23
83" LL	26	26
85" LL	26	26
95" LL	30	30
120" LL	34	34
