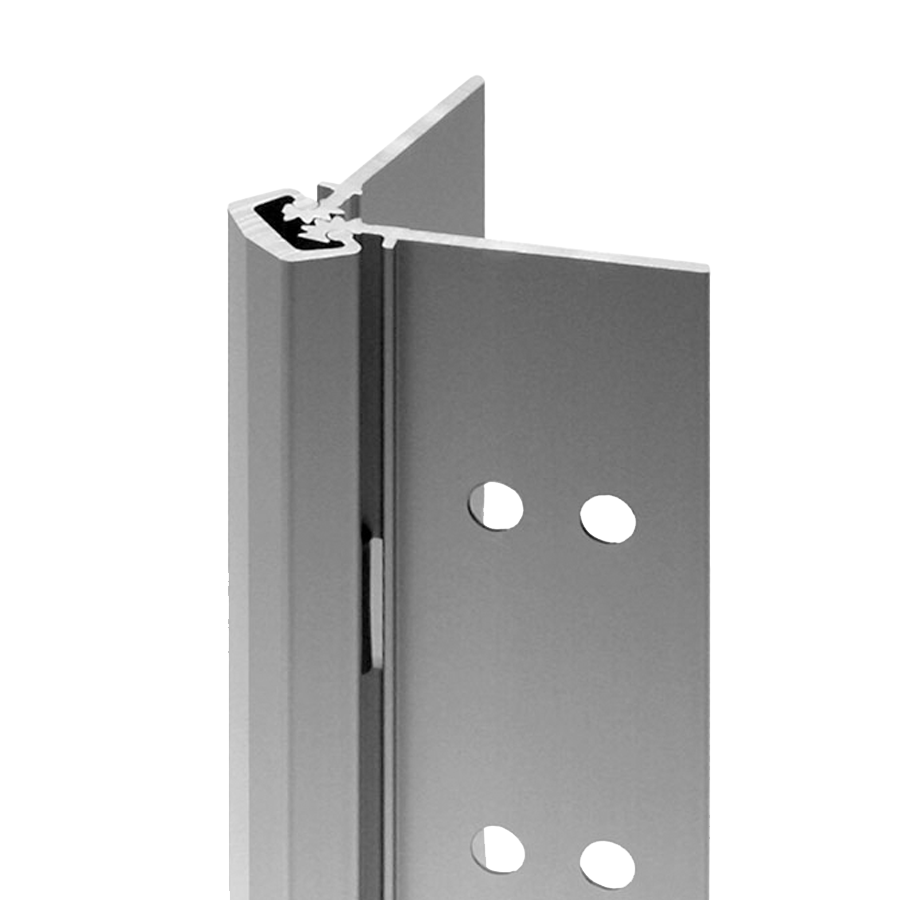

Select Products SL11-95-CL-HD300 95in Heavy Duty Geared Continuous Hinge, Up to 300lb, CL Clear

SELECT Products Limited SL11-95-CL-HD300 Full Mortise Heavy Duty Geared Continuous Hinge is the ideal solution for high-traffic door applications, designed to support doors weighing up to 300 pounds without requiring additional frame or door reinforcement. Measuring 95 inches in length, this hinge is crafted from aluminum and boasts a high-frequency rating, ensuring longevity and durability even in the busiest environments. Engineered to withstand an impressive 25 million cycles, equivalent to over 60 years of typical use, the SL11 hinge minimizes the need for replacements, thus reducing material waste and maintenance costs. With a clear anodized finish, it seamlessly integrates into various architectural styles while offering custom anodized or painted options for specific aesthetic needs. This continuous hinge is compatible with conventional overhead surface closers, concealed sliding arm overhead closers, and floor closers, providing flexibility in installation. The SL11 hinge comes with a comprehensive screw count for secure mounting, ensuring reliable performance. In addition to its robust functionality, SELECT Products backs the SL11 hinge with a never-ending warranty, emphasizing its commitment to quality and sustainability. For professionals seeking a dependable, eco-friendly solution for high-frequency doors, the SL11-95-CL-HD300 is a standout choice.

Full Mortise Heavy Duty Geared Continuous Hinge, 95in, Up to 300lb. High Frequency, CL Clear

The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles - equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They're a hassle-free way to make a greener building.

Features:

• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
• Load/Frequency Rating: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300 lb. without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
• Heavy Duty (LL): Our heavy duty 600 with additional fastener holes for low- to medium-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or extra-wide doors.
• Finishes: All SL11 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL11 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
79" HD600	19	19
83" HD300/HD600	19	19
85" HD300/HD600	19	19
95" HD300/HD600	21	21
120" HD300/HD600	23	23
83" LL	26	26
85" LL	26	26
95" LL	30	30
120" LL	34	34
