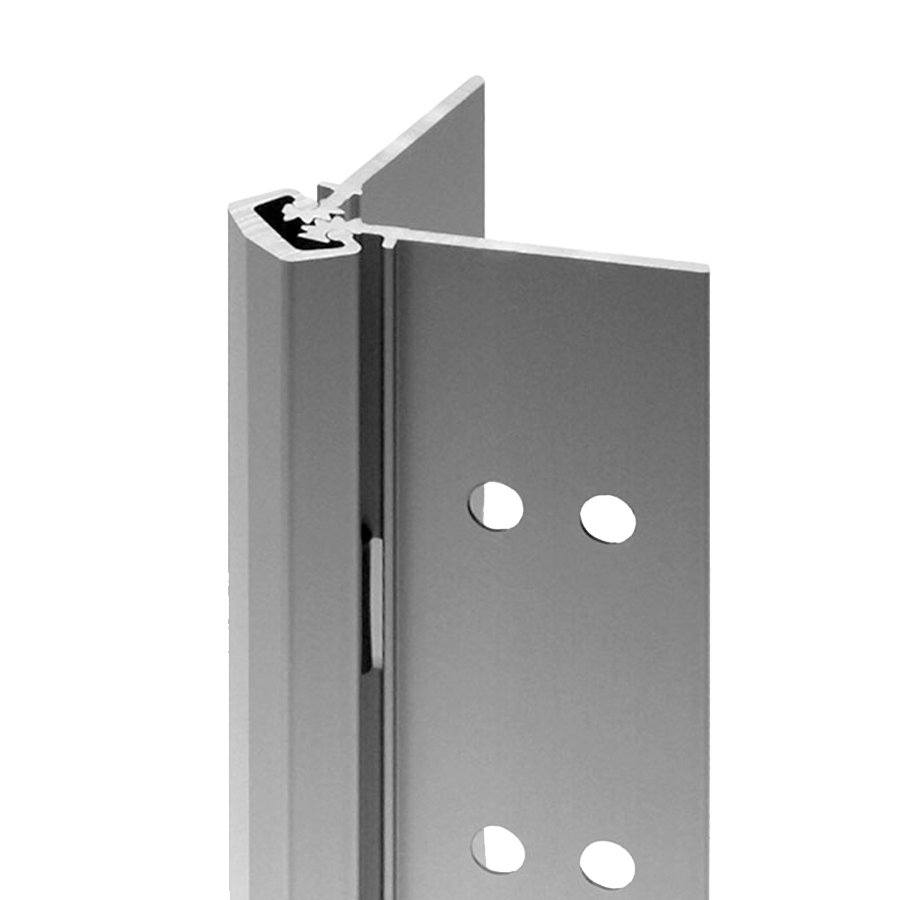

Select Products SL11-95-CL-HD600 95in Heavy Duty Geared Continuous Hinge, Up to 600lb, High Frequency, CL Clear

SELECT Products Limited SL11-95-CL-HD600 Full Mortise Heavy Duty Geared Continuous Hinge offers an unparalleled solution for high-traffic doors, engineered to support loads of up to 600 pounds. This 95-inch hinge is designed for durability, boasting a remarkable lifespan of 25 million cycles-equivalent to over 60 years of typical use. This longevity not only reduces the frequency of replacements but also conserves resources and minimizes environmental impacts, making it an excellent choice for sustainable building practices. Constructed from high-quality aluminum, the hinge is available in multiple finishes, including clear, dark bronze, and black anodized aluminum, with custom options available to meet specific aesthetic needs. The SL11 series accommodates both conventional and concealed closers, ensuring compatibility with various door setups. Ideal for 1-3/4" doors with a maximum width of 48", the SL11-95 is perfect for applications requiring heavy-duty support without frame or door reinforcements. The hinge comes equipped with the necessary screws for installation, ensuring a straightforward setup process. Backed by a never-ending continuous warranty, the SELECT Products SL11-95-CL-HD600 hinge promises reliable performance and peace of mind, making it the go-to choice for professionals seeking quality and efficiency in security and access control solutions.

Full Mortise Heavy Duty Geared Continuous Hinge, 95in, Up to 600lb. High Frequency, CL Clear

The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles - equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They're a hassle-free way to make a greener building.

Features:

• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
• Load/Frequency Rating: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300 lb. without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
• Heavy Duty (LL): Our heavy duty 600 with additional fastener holes for low- to medium-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or extra-wide doors.
• Finishes: All SL11 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL11 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
79" HD600	19	19
83" HD300/HD600	19	19
85" HD300/HD600	19	19
95" HD300/HD600	21	21
120" HD300/HD600	23	23
83" LL	26	26
85" LL	26	26
95" LL	30	30
120" LL	34	34
