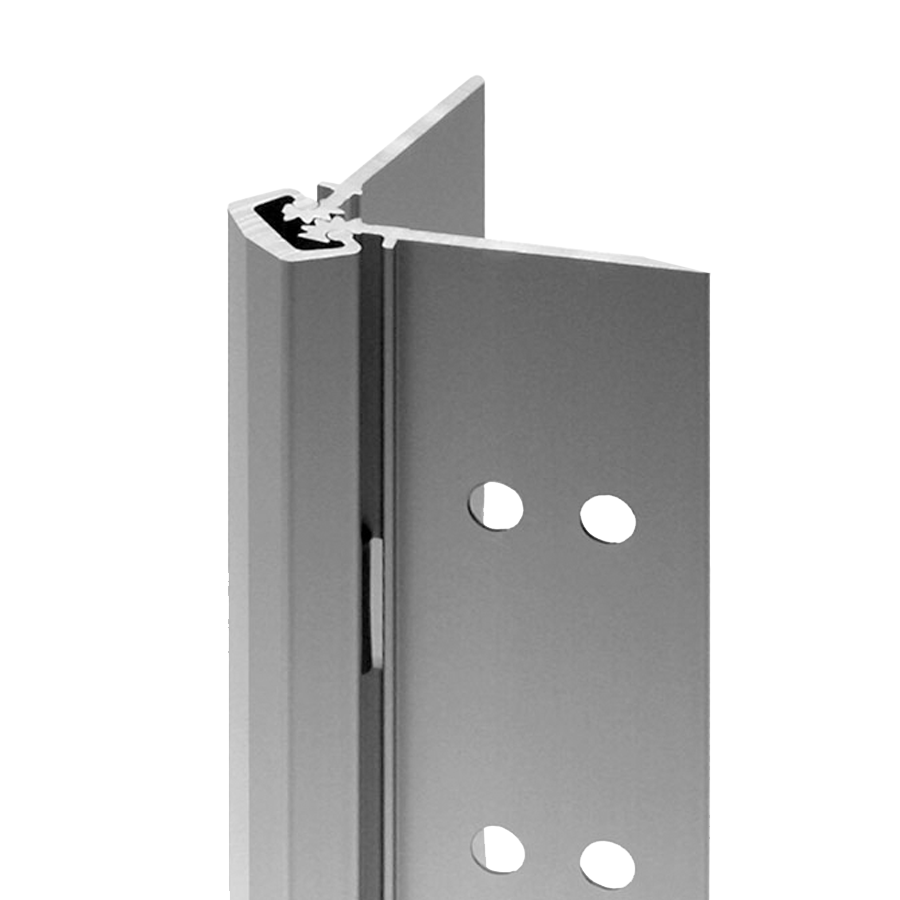

Select Products SL12-95-CL-HD Full Mortise Heavy Duty Geared Continuous Hinge, Beveled Frame Leaf, 95in, Clear

SELECT Products Limited SL12-95-CL-HD Full Mortise Heavy Duty Geared Continuous Hinge is engineered for durability and efficiency, making it an ideal choice for high-traffic environments. Crafted from extruded 6063 T6 aluminum alloy, this 95-inch hinge features self-lubricating polyester thrust bearings, ensuring a smooth operation that can withstand up to 25 million cycles-equivalent to over 60 years of reliable use. Designed for 1-3/4" doors with a maximum width of 48" in 16-gauge hollow metal or 1/8" aluminum, this heavy-duty hinge supports doors weighing up to 600 lbs. It is available in clear and dark bronze anodized finishes, with custom options upon request. The SL12 hinge comes with an impressive screw count of 29 for both door and frame, ensuring a secure installation. Compatible with various closing mechanisms, including conventional overhead surface and concealed sliding arm closers, the SL12 hinge is versatile enough to suit your project's specific needs. With its long lifespan and reduced maintenance requirements, this hinge not only enhances functionality but also contributes to a greener building, as fewer resources are used over time. Trust SELECT Products Limited for a hassle-free solution that combines performance with sustainability.

Full Mortise Heavy Duty Geared Continuous Hinge, Beveled Frame Leaf, 95in, Clear

The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles - equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They're a hassle-free way to make a greener building.

Features:

• Material: Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
• Load/Frequency Rating: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
• Finishes: All SL12 hinges are stocked in clear and dark bronze anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL12 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
83" HD600	25	25
95" HD600	29	29
120" HD600	33	33
