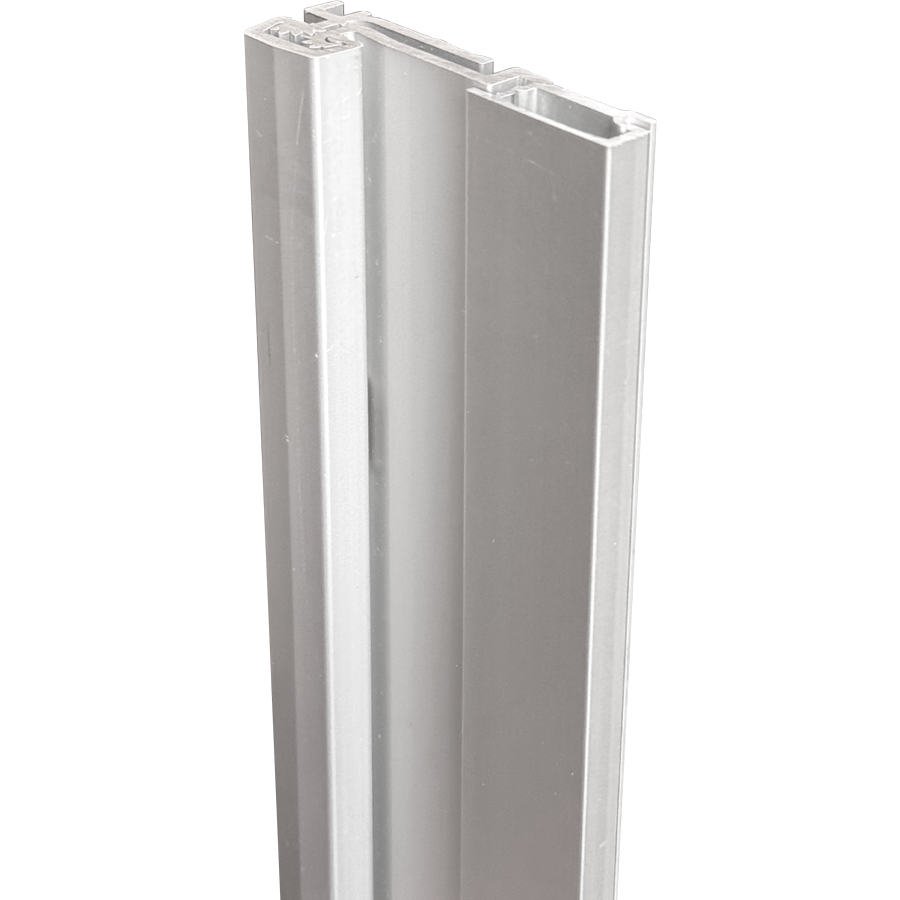

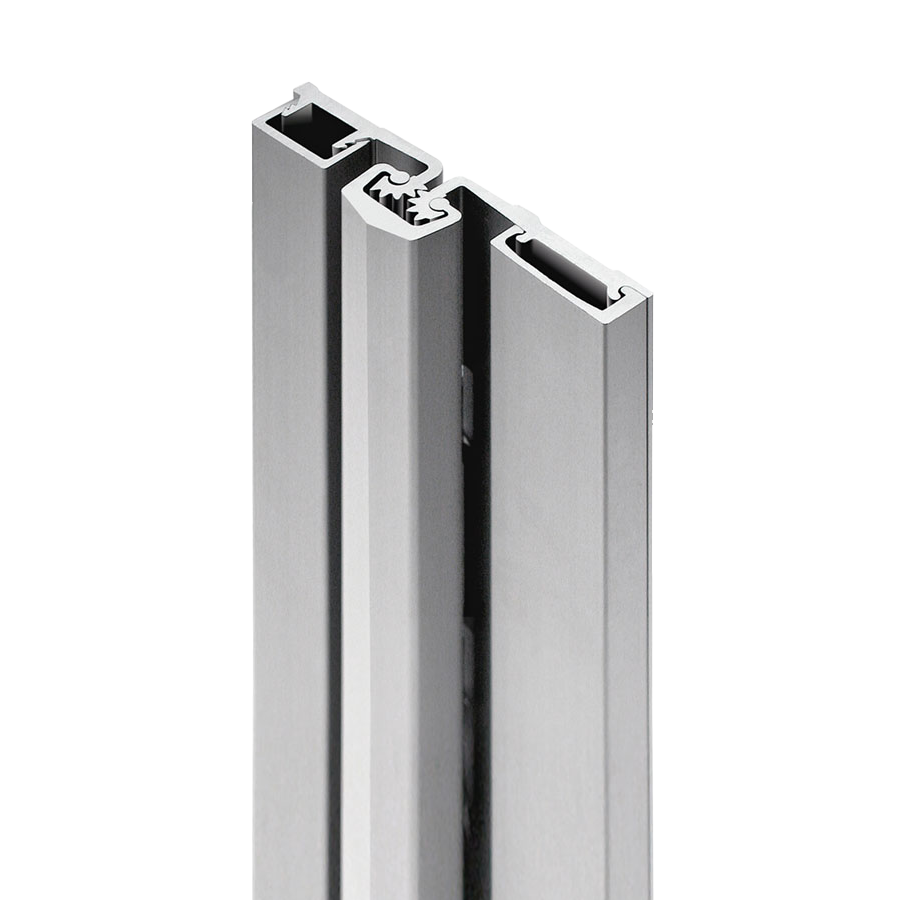

Select Products SL21-83-CL-HD300 Swing Clear Heavy Duty Full Surface Geared Continuous Hinge, 83in, 300lb

SELECT Products Limited SL21-83-CL-HD300 Swing Clear Heavy Duty Full Surface Geared Continuous Hinge offers exceptional durability and performance for high-frequency applications. Crafted from extruded 6063 T6 aluminum alloy, this hinge features self-lubricating polyester thrust bearings, ensuring smooth operation even under heavy use. Designed for nominal door heights, the SL21 hinge is available in lengths of 83", 85", 95", and 120". It supports doors weighing up to 300 lbs without requiring additional frame or door reinforcement, making it ideal for both commercial and residential installations. For doors exceeding 450 lbs, consider the Heavy Duty 600 option, which recommends using Rivnuts in the frame for added stability. The SL21 hinge comes in both clear and dark bronze anodized finishes, with custom options available upon request. It's essential to note that any field painting or anodizing will void the SELECT hinge warranty. Compatible with conventional overhead surface closers, concealed sliding arm overhead closers, and floor closers, this hinge provides versatile installation options. With a screw count of 10 for door screws and 14 for frame screws, the SL21-83-CL-HD300 is engineered to deliver reliable performance in demanding environments. Elevate your door hardware with this robust solution from SELECT Products Limited.

Swing Clear Heavy Duty Full Surface Geared Continuous Hinge, 83in, Up to 300lb. High Frequency, CL Clear

Features:

• Material: Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights.
• Load/Frequency Rating: For 1-3/8" – 1-3/4" doors standard; long barrel nuts available for 2" – 2-1/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300lb without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600lb Rivnuts are recommended in the frame when the door exceeds 450lb
• Finishes: All SL21 hinges are stocked in clear and dark bronze anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL21 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
83" HD300/HD600	10	14
85" HD300/HD600	10	14
95" HD300/HD600	11	15
120" HD300/HD600	14	18
