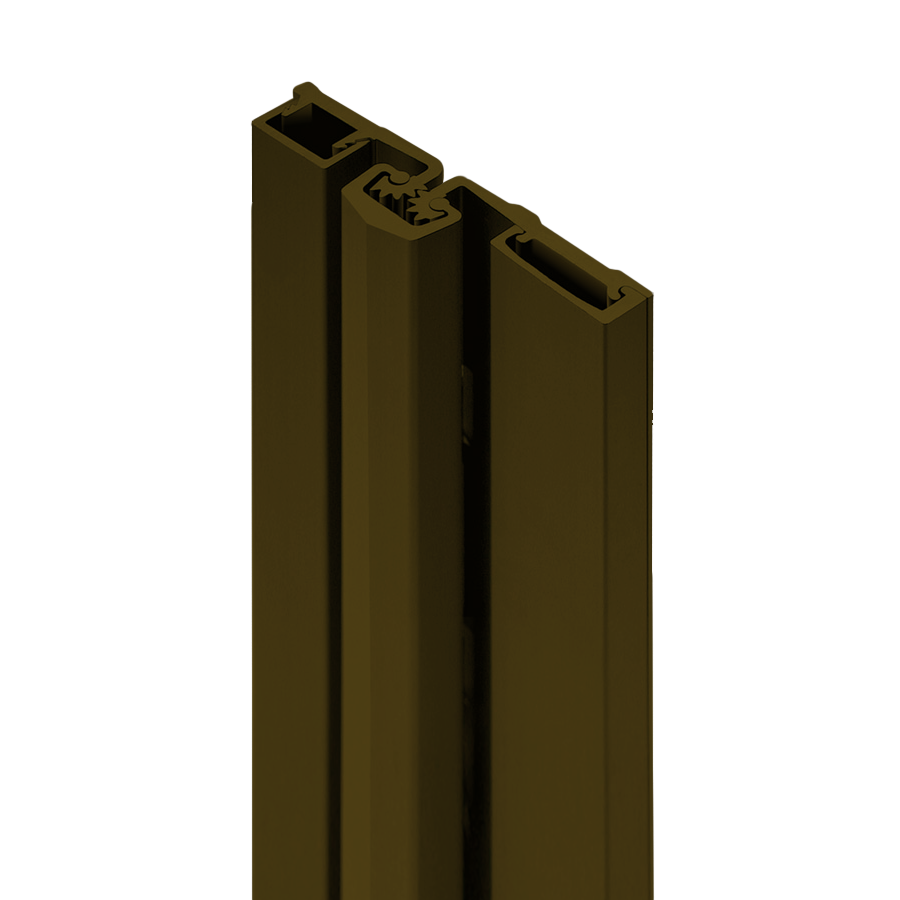

Select Products SL21-95-BR-HD600 Swing Clear Heavy Duty Continuous Hinge, 95in, 600lb, BR Dark Bronze

SELECT Products Limited SL21-95-BR-HD600 Swing Clear Heavy Duty Full Surface Geared Continuous Hinge is engineered for high-performance and durability, capable of supporting doors weighing up to 600 pounds. Crafted from extruded 6063 T6 aluminum alloy, this hinge features self-lubricating polyester thrust bearings for smooth operation, making it an ideal choice for high-frequency applications. Measuring 95 inches in length, this heavy-duty hinge is suitable for standard 1-3/8" to 1-3/4" doors; for heavier doors, long barrel nuts are available to accommodate 2" to 2-1/4" door thicknesses. With a maximum door width of 48 inches, the SL21 hinge ensures reliability without the need for additional frame or door reinforcement at lower weights, while Rivnuts are recommended for doors exceeding 450 pounds. Available in striking dark bronze anodized aluminum, the SL21 hinges can also be customized with anodized or painted finishes, although field-applied finishes void the warranty. Compatible with various overhead closers, this hinge is a versatile solution for both commercial and residential applications. Please note, shipping is available via common carrier only, ensuring careful handling of your order. Choose the SELECT SL21-95-BR-HD600 for exceptional strength and reliability in your door hardware solutions.

Swing Clear Heavy Duty Full Surface Geared Continuous Hinge, 95in, Up to 600lb. High Frequency, BR Dark Bronze

Features:

• Material: Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights.
• Load/Frequency Rating: For 1-3/8" – 1-3/4" doors standard; long barrel nuts available for 2" – 2-1/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300lb without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600lb Rivnuts are recommended in the frame when the door exceeds 450lb
• Finishes: All SL21 hinges are stocked in clear and dark bronze anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL21 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
83" HD300/HD600	10	14
85" HD300/HD600	10	14
95" HD300/HD600	11	15
120" HD300/HD600	14	18
