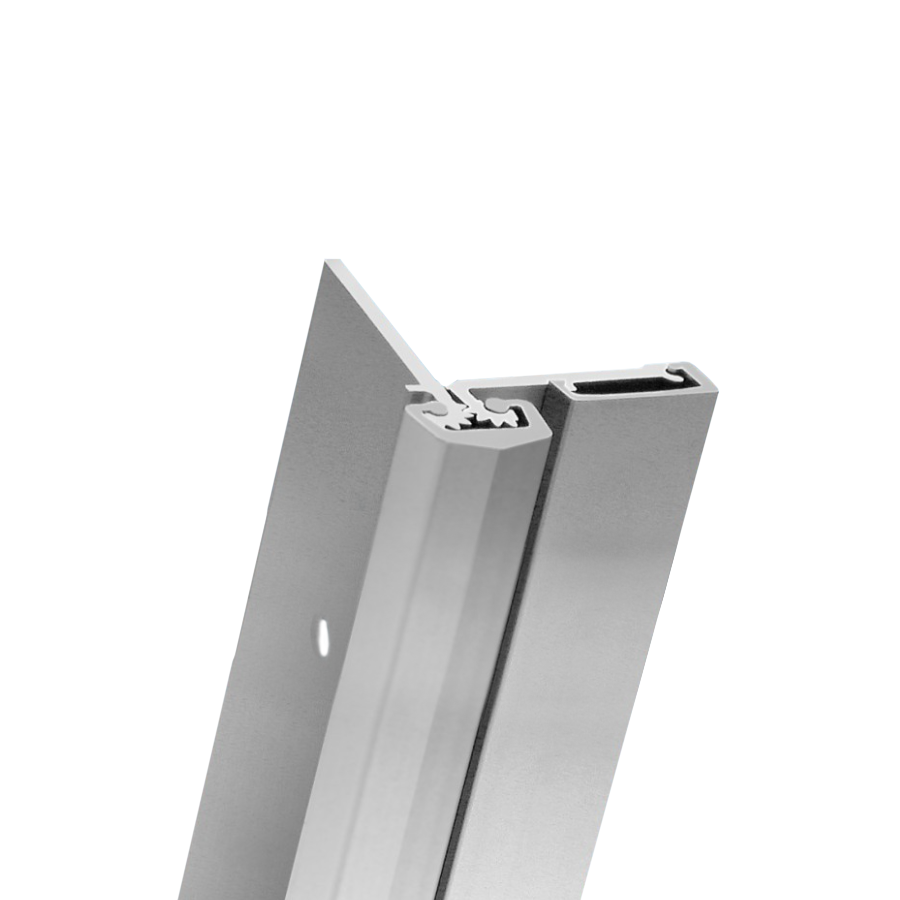

Select Products SL53-83-CL-HD600 Heavy Duty Geared Continuous Hinge, 83in, Up to 600lb, CL Clear

SELECT Products Limited SL53-83-CL-HD600 Half Surface Heavy Duty Geared Continuous Hinge is engineered for durability and high-frequency use, accommodating doors weighing up to 600 pounds. Constructed from extruded 6063 T6 aluminum alloy, this hinge features self-lubricating polyester thrust bearings that enhance performance and longevity. With a standard length of 83 inches, it is also available in 85, 95, and 120 inches to suit various door heights. Designed specifically for 1-3/8" to 1-3/4" doors, the SL53 hinge can be adapted for thicker doors with long barrel nuts. For doors exceeding 450 pounds, Rivnuts are recommended to ensure secure installation. The hinge is stocked in clear, dark bronze, and black anodized finishes, with custom options available to meet your aesthetic needs-though field-applied finishes will void the warranty. This versatile hinge allows compatibility with conventional overhead surface closers, concealed sliding arm overhead, or floor closers, providing flexibility for various applications. The SL53-83-CL-HD600 is a reliable choice for professionals seeking robust performance and longevity in high-traffic environments, ensuring smooth operation and security for heavy doors. With a screw count of 10 for the door and 19 for the frame, installation is straightforward and efficient.

Half Surface Heavy Duty Geared Continuous Hinge, 83in, Up to 600lb. High Frequency, CL Clear

Features:

• Material: Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights.
• Load/Frequency Rating: For 1-3/8" – 1-3/4" doors standard; long barrel nuts available for 2" – 2-1/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 600: For high-frequency doors up to 600lb Rivnuts are recommended in the frame when the door exceeds 450lb
• Finishes: All SL53 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL53 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
83" HD600	10	19
85" HD600	10	19
95" HD600	11	21
120" HD600	14	23
