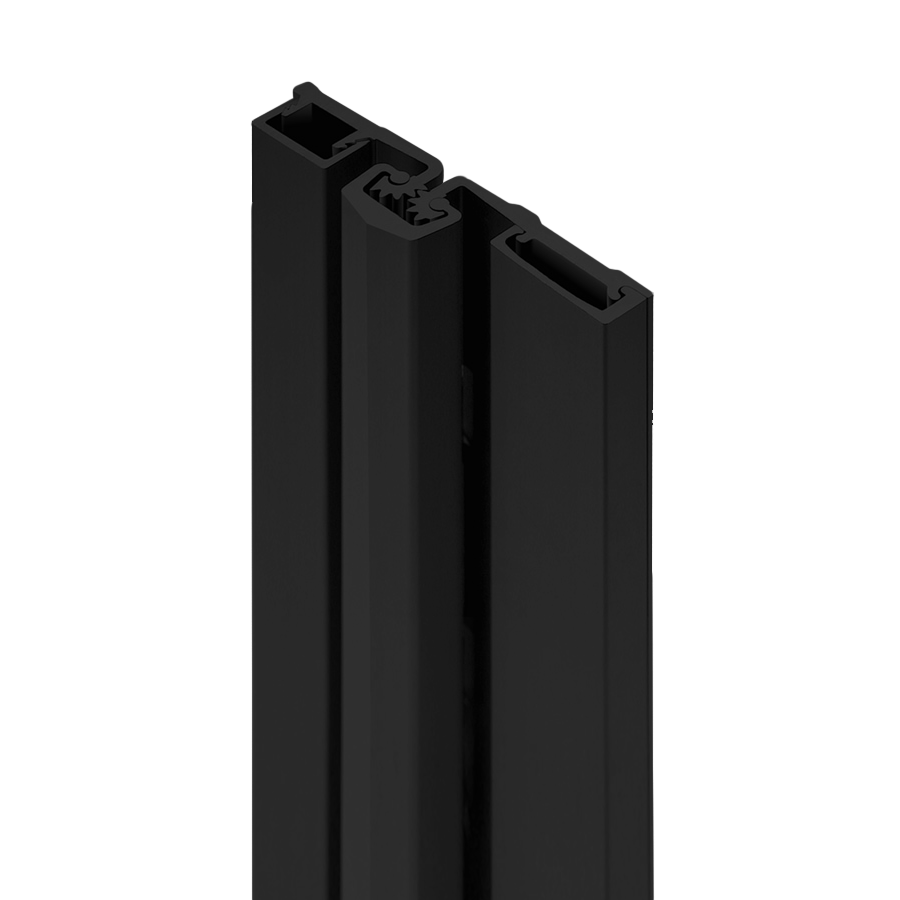

Select Products SL57-120-BK-HD600 Heavy Duty Geared Continuous Hinge, 120in, 600lb, High Frequency, Black

SELECT Products Limited SL57-120-BK-HD600 Full Surface Heavy Duty Geared Continuous Hinge is designed to provide exceptional durability and support for high-frequency applications. Crafted from extruded 6063 T6 aluminum alloy, this hinge features self-lubricating polyester thrust bearings, ensuring smooth operation and longevity under heavy use. With a length of 120 inches, the SL57-120-BK-HD600 is engineered to accommodate doors weighing up to 600 pounds, making it ideal for both commercial and residential settings. It is suitable for standard door heights of 1-3/8" to 1-3/4", with long barrel nuts available for thicker doors. The hinge is designed to be used with various closers, including conventional overhead and concealed sliding arm types. Available in a sleek black anodized finish, this hinge not only delivers strength but also enhances the aesthetic appeal of your doors. Stocked in multiple finishes, including clear and dark bronze, it can be customized to meet specific design needs. For optimal installation, the hinge requires 14 door screws and 18 frame screws, ensuring a secure fit. Choose the SELECT Products Limited SL57-120-BK-HD600 for a reliable and robust solution that stands up to the demands of high-frequency door usage.

Full Surface Heavy Duty Geared Continuous Hinge, 120in, Up to 600lb. High Frequency, BK Black

Features:

• Material: Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights.
• Load/Frequency Rating: For 1-3/8" – 1-3/4" doors standard; long barrel nuts available for 2" – 2-1/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300lb without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600lb. Rivnuts are recommended in the frame when the door exceeds 450lb.
• Finishes: All SL57 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL57 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
83" HD300/HD600	10	14
85" HD300/HD600	10	14
95" HD300/HD600	11	15
120" HD300/HD600	14	18
