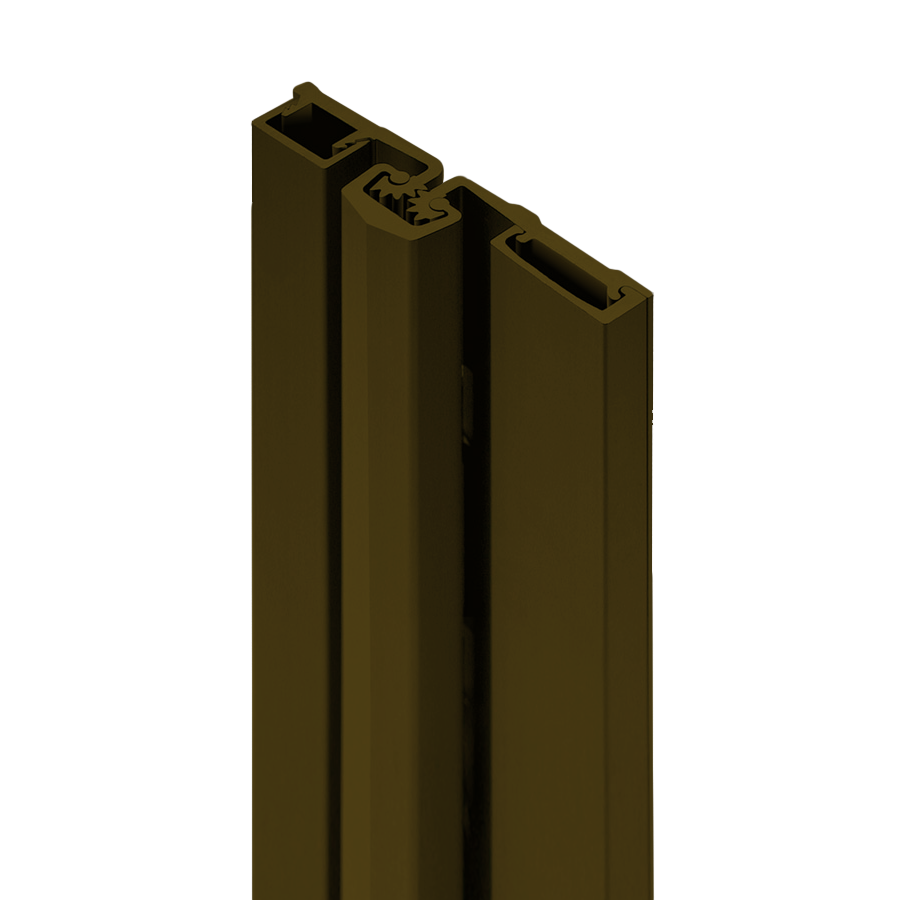

Select Products SL57-120-BR-HD600 Heavy Duty Geared Continuous Hinge, 120in, 600lb, BR Dark Bronze

SELECT Products Limited SL57-120-BR-HD600 Full Surface Heavy Duty Geared Continuous Hinge is engineered to meet the demands of high-frequency applications with a robust load capacity of up to 600 pounds. Constructed from extruded 6063 T6 aluminum alloy, this hinge features self-lubricating polyester thrust bearings for smooth operation and longevity. With a standard length of 120 inches, it is ideal for 1-3/8" to 1-3/4" doors, while long barrel nuts can accommodate thicker door materials ranging from 2" to 2-1/4". Designed for versatility, the SL57 hinge can support both conventional overhead surface closers and concealed sliding arm overhead closers, making it suitable for a wide array of installation scenarios. The hinge is available in an attractive dark bronze anodized finish, with options for clear and black anodized aluminum as well. Custom finishes can be requested but please note that field-applied paint or anodization will void the warranty. For optimal performance, rivnuts are recommended in the frame for doors exceeding 450 pounds, ensuring maximum stability. With a screw count that varies according to hinge length and duty rating, the SL57-120-BR-HD600 is a reliable choice for professionals seeking durable and high-performance hardware.

Full Surface Heavy Duty Geared Continuous Hinge, 120in, Up to 600lb. High Frequency, BR Dark Bronze

Features:

• Material: Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights.
• Load/Frequency Rating: For 1-3/8" – 1-3/4" doors standard; long barrel nuts available for 2" – 2-1/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300lb without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600lb. Rivnuts are recommended in the frame when the door exceeds 450lb.
• Finishes: All SL57 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL57 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
83" HD300/HD600	10	14
85" HD300/HD600	10	14
95" HD300/HD600	11	15
120" HD300/HD600	14	18
