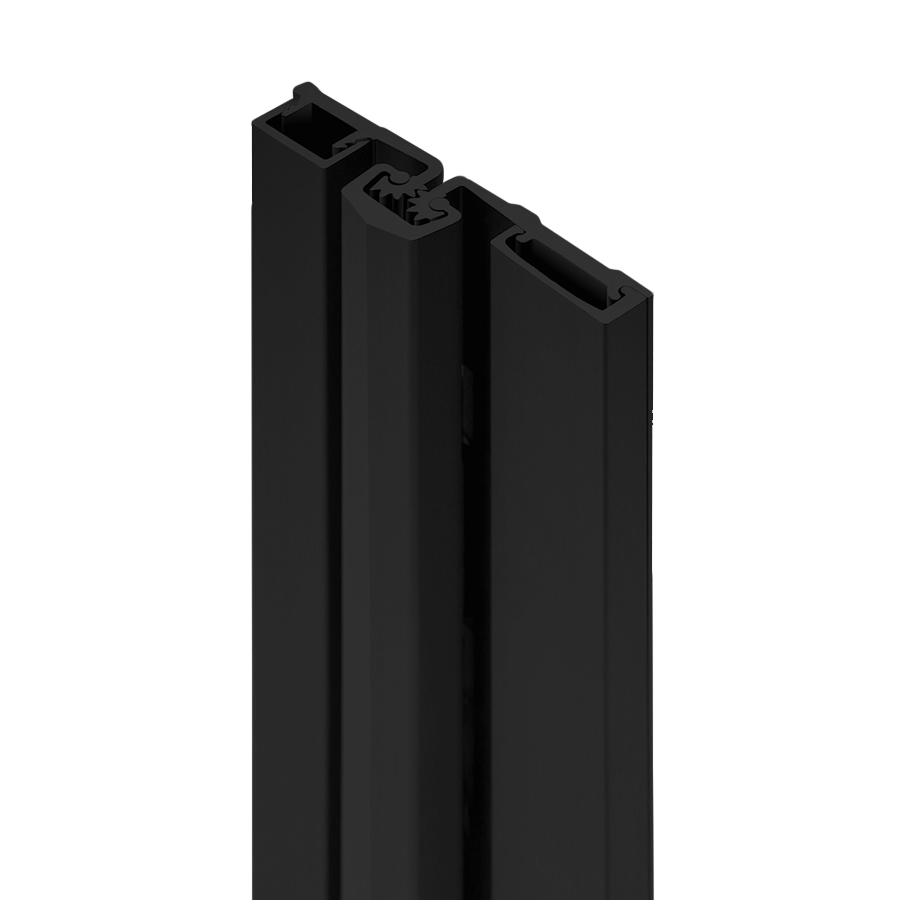

Select Products SL57-83-BK-HD600 Heavy Duty Geared Continuous Hinge, 83in, 600lb, High Frequency, Black

SELECT Products Limited SL57-83-BK-HD600 Full Surface Heavy Duty Geared Continuous Hinge is engineered for durability and reliability, making it an ideal choice for high-frequency applications. Crafted from extruded 6063 T6 aluminum alloy, this hinge incorporates self-lubricating polyester thrust bearings, ensuring smooth operation even under demanding conditions. Designed for doors between 1-3/8" and 1-3/4" thick, it can support weights of up to 600 pounds, making it suitable for heavy-duty environments. Available in lengths of 83", 85", 95", and 120", the SL57 hinge accommodates various door heights and widths, with a maximum door width of 48" in 16 gauge hollow metal or 1/8" aluminum. The hinge is finished in a sleek black anodized aluminum, with additional custom finishes available upon request. For optimal performance, conventional overhead surface closers, concealed sliding arm overhead, or floor closers can be paired with this hinge. It is important to note that when using doors exceeding 450 pounds, the installation of rivnuts in the frame is recommended for enhanced stability. With a screw count of 10 for the door and 14 for the frame, the SL57-83-BK-HD600 is not only versatile but also easy to install, making it a preferred choice for professionals and knowledgeable homeowners alike.

Full Surface Heavy Duty Geared Continuous Hinge, 83in, Up to 600lb. High Frequency, BK Black

Features:

• Material: Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights.
• Load/Frequency Rating: For 1-3/8" – 1-3/4" doors standard; long barrel nuts available for 2" – 2-1/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300lb without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600lb. Rivnuts are recommended in the frame when the door exceeds 450lb.
• Finishes: All SL57 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL57 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
83" HD300/HD600	10	14
85" HD300/HD600	10	14
95" HD300/HD600	11	15
120" HD300/HD600	14	18
