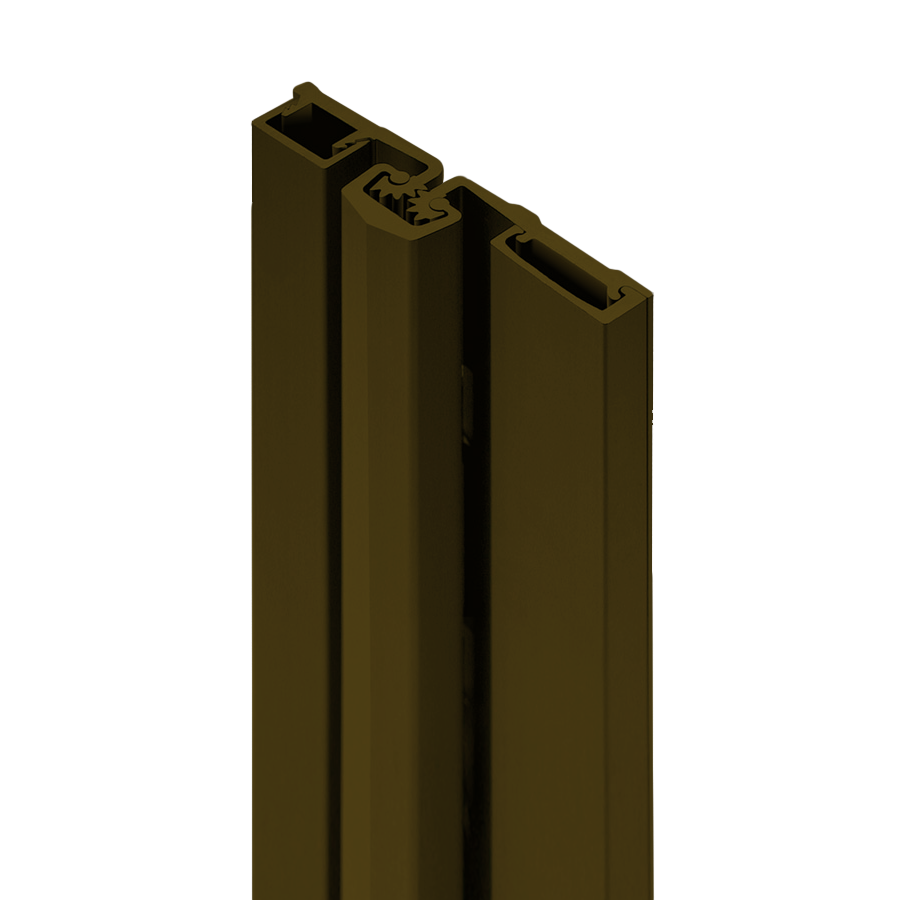

Select Products SL57-83-BR-HD300 Heavy Duty Geared Continuous Hinge, 83in, 300lb, High Frequency, BR Bronze

SELECT Products Limited SL57-83-BR-HD300 Full Surface Heavy Duty Geared Continuous Hinge is engineered for high-frequency applications, supporting doors weighing up to 300 lbs without the need for additional frame or door reinforcement. Made from durable extruded 6063 T6 aluminum alloy, this hinge features self-lubricating polyester thrust bearings, ensuring smooth operation over time. With an impressive length of 83 inches, the SL57 hinge is also available in various lengths, including 85", 95", and 120", making it suitable for nominal door heights. It accommodates standard door thicknesses from 1-3/8" to 1-3/4", and long barrel nuts can be provided for thicker doors up to 2-1/4". The hinge is compatible with conventional overhead surface closers, concealed sliding arm overhead closers, or floor closers, providing versatile installation options. The SL57-83-BR-HD300 comes in a sophisticated dark bronze finish, with additional custom anodized or painted finishes available (note that field application of finishes voids the warranty). For secure installation, the hinge requires 10 door screws and 14 frame screws. This hinge is a reliable choice for building professionals seeking durability and functionality in continuous hinge solutions.

Full Surface Heavy Duty Geared Continuous Hinge, 83in, Up to 300lb. High Frequency, BR Dark Bronze

Features:

• Material: Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights.
• Load/Frequency Rating: For 1-3/8" – 1-3/4" doors standard; long barrel nuts available for 2" – 2-1/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300lb without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600lb. Rivnuts are recommended in the frame when the door exceeds 450lb.
• Finishes: All SL57 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL57 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
83" HD300/HD600	10	14
85" HD300/HD600	10	14
95" HD300/HD600	11	15
120" HD300/HD600	14	18
