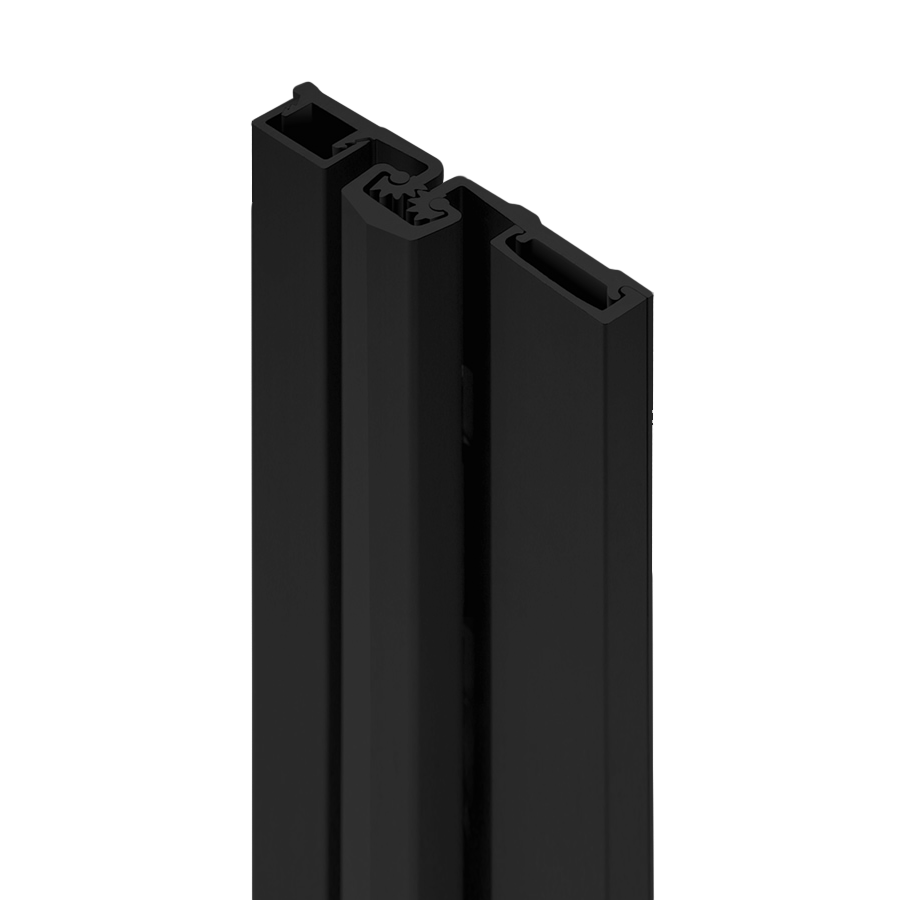

Select Products SL57-95-BK-HD600 95in Heavy Duty Geared Continuous Hinge, Up to 600lb, High Frequency, Black

SELECT Products Limited SL57-95-BK-HD600 Full Surface Heavy Duty Geared Continuous Hinge is engineered for durability and high performance, supporting doors weighing up to 600 lbs. Constructed from extruded 6063 T6 aluminum alloy, this hinge features self-lubricating polyester thrust bearings for smooth operation, ensuring longevity in high-frequency applications. Available in standard lengths of 83", 85", 95", and 120", the SL57 hinge accommodates nominal door heights and is ideal for 1-3/8" to 1-3/4" doors, with options for longer barrel nuts for thicker doors. The heavy-duty rating ensures that even without frame or door reinforcement, it can reliably manage considerable weight. For doors exceeding 450 lbs, it is advisable to utilize rivnuts in the frame for added support. This product is stocked in a sleek black anodized finish, with options for custom anodization or painting, though field-applied finishes may void the warranty. Compatible with various closers, including conventional overhead and concealed sliding arm types, the SL57 hinge offers flexibility for your specific installation needs. With a robust screw count ensuring secure mounting-11 screws for doors of this length-the SL57 hinge is a reliable choice for professionals seeking quality and performance in continuous hinge solutions.

Full Surface Heavy Duty Geared Continuous Hinge, 95in, Up to 600lb. High Frequency, BK Black

Features:

• Material: Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights.
• Load/Frequency Rating: For 1-3/8" – 1-3/4" doors standard; long barrel nuts available for 2" – 2-1/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300lb without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600lb. Rivnuts are recommended in the frame when the door exceeds 450lb.
• Finishes: All SL57 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL57 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
83" HD300/HD600	10	14
85" HD300/HD600	10	14
95" HD300/HD600	11	15
120" HD300/HD600	14	18
