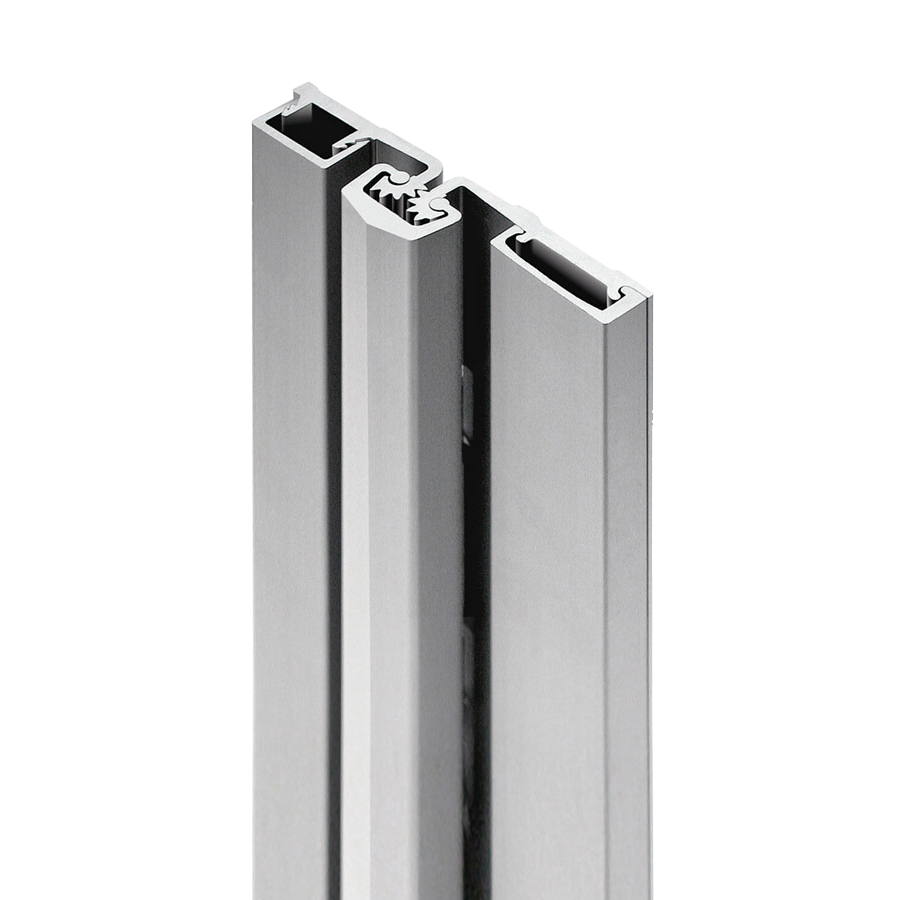

Select Products SL57-95-CL-HD600 95in Heavy Duty Geared Continuous Hinge, Up to 600lb, High Frequency, CL Clear

SELECT Products Limited SL57-95-CL-HD600 Full Surface Heavy Duty Geared Continuous Hinge is engineered for high-frequency applications, accommodating doors weighing up to 600 pounds. Crafted from extruded 6063 T6 aluminum alloy, this hinge features self-lubricating polyester thrust bearings, ensuring smooth operation and durability over time. Measuring 95 inches in length, this hinge is suitable for nominal door heights and can be used with 1-3/8" to 1-3/4" doors. For larger doors, long barrel nuts are available for those ranging from 2" to 2-1/4". The SL57 hinge is designed for robust performance, with a heavy-duty rating that supports high-frequency usage without the need for frame or door reinforcement for weights up to 300 pounds. When dealing with heavier doors, rivnuts are recommended in the frame for added stability. Available finishes include clear, dark bronze, and black anodized aluminum, with custom options upon request. Installation versatility is offered, as this hinge can accommodate conventional overhead surface closers and concealed sliding arm overhead closers. However, pivot-type floor closers must be replaced if conflicting with the hinge's design. Ideal for commercial settings, the SL57 hinge delivers reliability and strength where it matters most.

Full Surface Heavy Duty Geared Continuous Hinge, 95in, Up to 600lb. High Frequency, CL Clear

Features:

• Material: Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights.
• Load/Frequency Rating: For 1-3/8" – 1-3/4" doors standard; long barrel nuts available for 2" – 2-1/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300lb without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600lb. Rivnuts are recommended in the frame when the door exceeds 450lb.
• Finishes: All SL57 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL57 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
83" HD300/HD600	10	14
85" HD300/HD600	10	14
95" HD300/HD600	11	15
120" HD300/HD600	14	18
