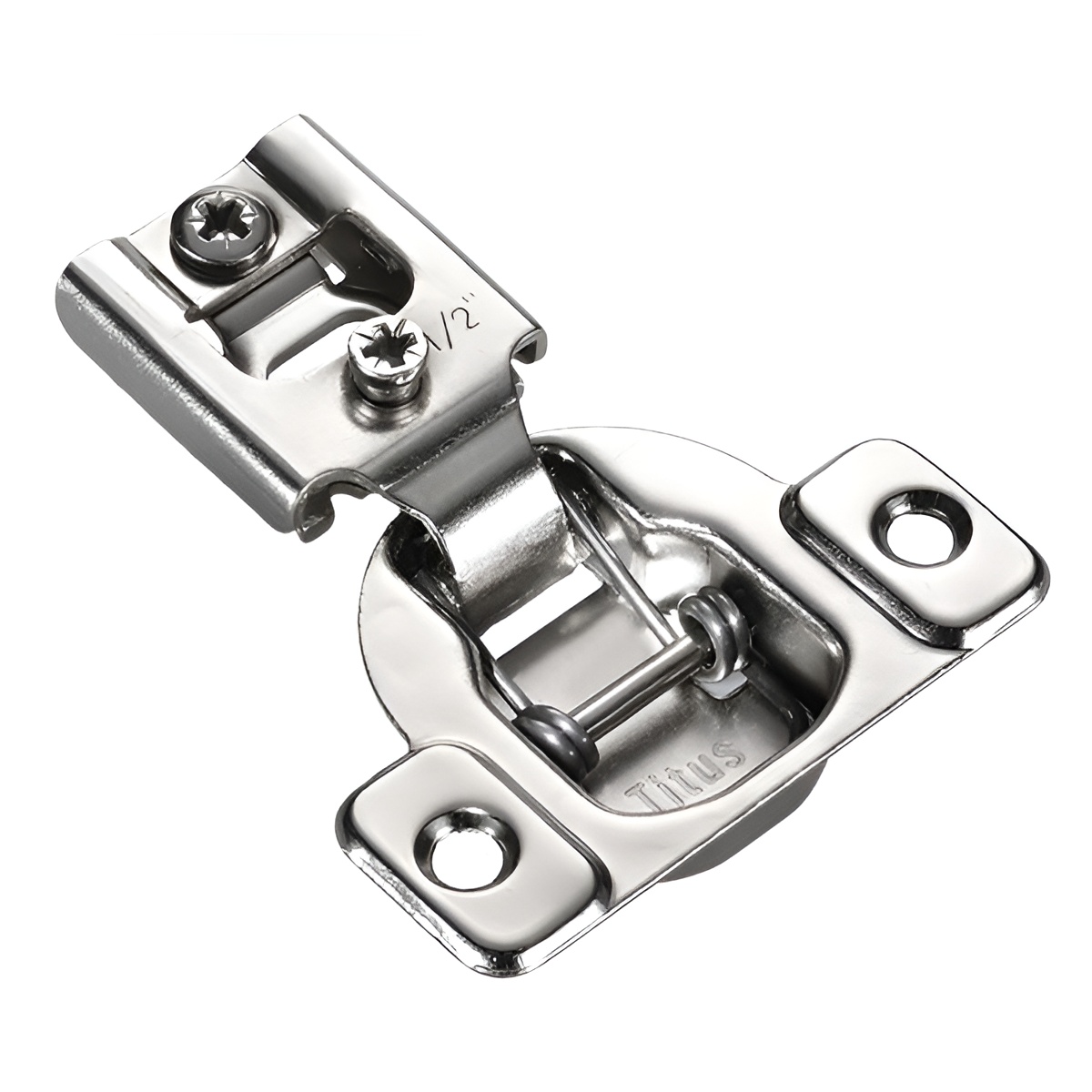

Titus 970.9816.050 105 Compact 3-Way 2-Cam 1/2" OL Dowel

TITUS / LAMA 970.9816.050 105Compact 3way 2Cam 1/2inOL Dowel offers a remarkable solution for your cabinet door needs with its efficient design and reliable performance. This self-closing European hinge features a 105° opening angle, ensuring ample access to cabinet interiors. The 12mm (1/2") cup depth and 35mm cup diameter make it compatible with a variety of cabinet styles, while the 8mm dowels provide secure installation. Designed to work seamlessly with door thicknesses ranging from 5/8" to 3/4", this hinge also includes precise drilling distances of 2.5mm (7/64") to 3mm (1/8"), allowing for easy adaptation to your specific cabinetry. The 4.8mm (3/16") gap between the door and frame ensures a clean, professional look. The TITUS hinge is equipped with cam adjustments for side-to-side movement of +/- 1.2mm and in-and-out adjustments of +1.8/-0.7mm. For up-and-down positioning, it features screw adjustments of +/- 2.5mm, providing the flexibility needed for perfect alignment. Lightweight at just 0.09 lbs, it is easy to handle and install. Elevate your cabinetry with the reliability and functionality of the TITUS 970.9816.050 hinge.

105Compact 3way 2Cam 1/2inOL Dowel

• Cam Adjustments
• Drilling distance 2.5mm (7/64") to 3mm (1/8")
• Works with 5/8" to 3/4" door thickness
• 35mm cup diameter
• 8mm dowels
• Screw Adjustment - Up and down +/- 2.5mm
• 12mm cup depth (1/2")
• 4.8mm (3/16") gap between door & frame
• Self-close
• 105° opening
• Side to side +/- 1.2mm with an In and out +1.8 / -0.7mm
