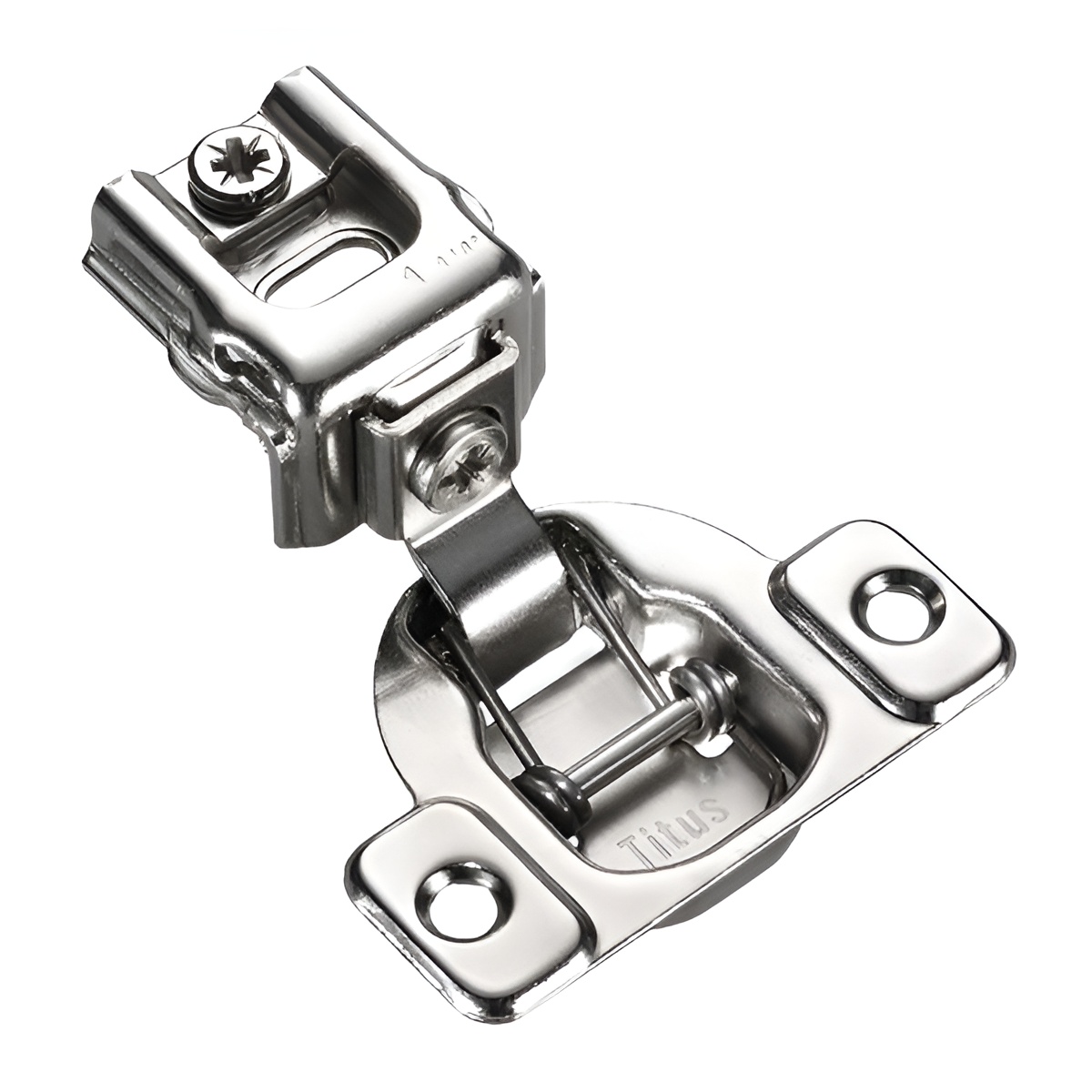

Titus 970.9819.050 105 Compact 3-Way 2-Cam 1.25" OL Screw

TITUS / LAMA 970.9819.050 105Compact 3way2Cam 1-1/4inOL Screw offers a reliable solution for your cabinet hardware needs, combining functionality with ease of installation. This European hinge features a 105° opening angle, allowing for maximum access to your cabinet interiors. With a cup depth of 12mm (1/2") and a cup diameter of 35mm, it is designed to accommodate door thicknesses ranging from 5/8" to 3/4". The self-close mechanism ensures that doors close gently and securely, enhancing the overall user experience. Adjustments are effortless with cam settings that allow for side-to-side movement of +/- 1.2mm, and in-and-out adjustments of +1.8mm to -0.7mm. Additionally, the screw adjustment feature provides up-and-down movement of +/- 2.5mm, ensuring a precise fit every time. This hinge is compatible with an 8mm dowel and requires a drilling distance of 2.5mm (7/64") to 3mm (1/8"), maintaining a gap of 4.8mm (3/16") between the door and frame. Weighing just 0.11 lbs, it is lightweight yet sturdy, making it an excellent choice for both professionals and knowledgeable homeowners looking to enhance their cabinetry with quality hardware.

105Compact 3way2Cam 1-1/4inOL Screw

• Cam Adjustments
• Drilling distance 2.5mm (7/64") to 3mm (1/8")
• Works with 5/8" to 3/4" door thickness
• 35mm cup diameter
• 8mm dowels
• Screw Adjustment - Up and down +/- 2.5mm
• 12mm cup depth (1/2")
• 4.8mm (3/16") gap between door & frame
• Self-close
• 105° opening
• Side to side +/- 1.2mm with an In and out +1.8 / -0.7mm
