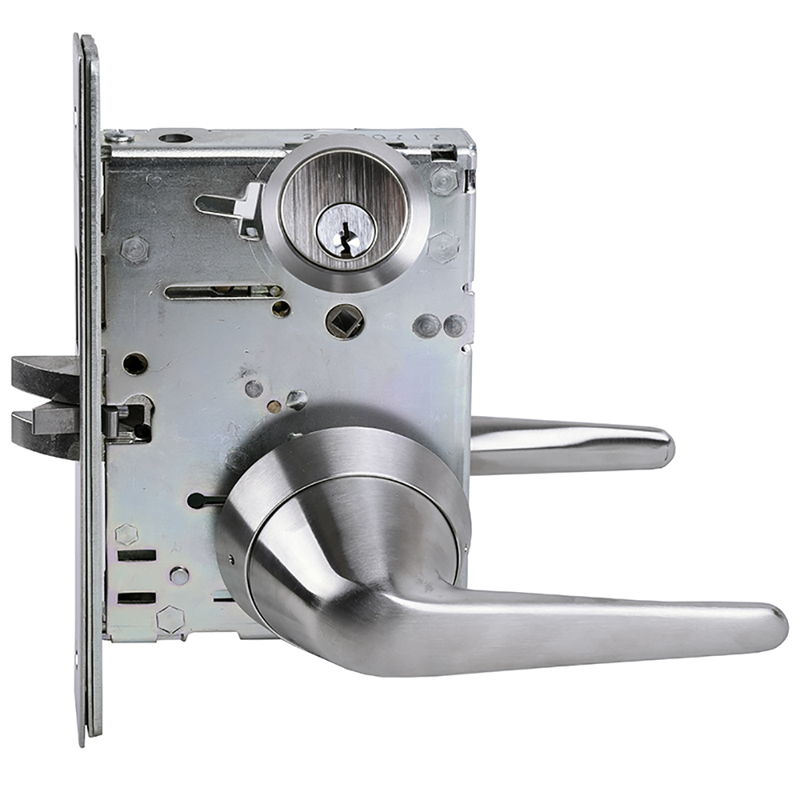

TownSteel MRX-S-L-04-630 Ligature-Resistant Mortise LockTownSteel MRX-S-L-04-630 Ligature Resistant Mort Lock combines superior security with innovative design, making it an ideal choice for environments that prioritize safety and accessibility. This heavy-duty, Grade 1 mortise lockset is specifically engineered for entry and office applications, featuring a ligature-resistant lever design that enhances safety without compromising usability. Optimized for 1-3/4" door thickness, the MRX-S-L-04-630 includes a robust 2-3/4" backset, complemented by a durable stainless steel turn piece, faceplate, and strike. With a satin stainless steel finish (630/US32D), this lock not only provides a sleek, modern appearance but also ensures long-lasting performance. The lock is ANSI-certified for entry/office functions and is ADA-compliant, making it accessible for all users. It features a dead latch design, ensuring reliable operation and security. TownSteel's extensive range of ligature-resistant locks, including various trim options, supports diverse applications, from classrooms to storerooms. With a limited 5-year warranty, the TownSteel MRX-S-L-04-630 Ligature Resistant Mort Lock is a dependable choice for those seeking enhanced security in challenging environments. This lock meets the demands of both building professionals and knowledgeable homeowners looking for a combination of safety and style.
Ligature Resistant Mort Lock
Heavy Duty Anti-Ligature Level Mortise Lockset, Grade 1, Entry/Office, Keyed, ANSI, Sectional Lever Trim, Satin Stainless Steel
Levered ligature-resistant stainless steel mortise lock optimized for 1-3/4" door thickness. Features 2-3/4" backset, stainless steel turn piece, faceplate and strike.
Grade 1 Heavy Duty Locks available in several trims.
TownSteel boasts the most complete line of ligature resistant locks available today in the commercial contract hardware industry, including these ligature resistant mortise locks.
Available types include (but are not limited to):
- Single Dummy
- Double Dummy
- Passage/Closet
- Privacy
- Entry/Office
- Classroom
- Storeroom
- Asylum
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F04 - Entry/Office
Application: Ligature Resistant
Cylinder Type: Mortise Cylinder
Door Thickness: 1-3/4 In.
Finish: 630/US32D
Function: 04-Entry or Office
Grade: Grade 1
Leverknob Design: Ligature Resistant Lever
Limited Warranty: 5 Years
Lock Face Size: 8 In. x 1-1/4 In.
Pack Qty: 1
Roseescutcheon Design: Rose
Screws: Combination
Series: TownSteel Ligature Resistant Mortise Locks
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8 In.
Std Strike Type: ASA
Std Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
