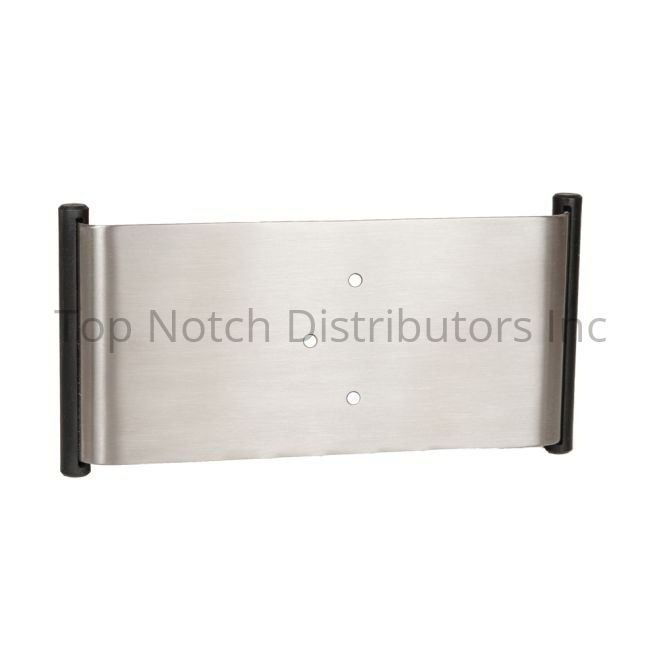

Trimco 1069-A.630 Sliding Door Pull ADA, 630/US32D Stainless Steel offers a modern solution for pocket door applications that comply with the Americans with Disabilities Act (ADA) standards. This pocket door pull is designed with stylish black nylon handles, ensuring both functionality and aesthetic appeal for various environments, from assisted living facilities to upscale hospitality venues. The 1069 series is particularly versatile, accommodating frame widths from 4-3/4" to 5-1/2" and compatible with both 1-3/8" and 1-3/4" wood doors. Its ease of installation and operation allows users to engage the pull using their heel, the edge of their hand, or with their arm, making it exceedingly user-friendly. Multiple functions are available, including passage, latching (non-locking), and full privacy options, ensuring that it meets the diverse needs of any setting. Constructed from durable satin stainless steel, this pull not only provides strength but also a refined look that fits seamlessly into any décor. Ideal for healthcare facilities, educational institutions, and office buildings, the Trimco 1069-A.630 is a reliable choice for enhancing accessibility and convenience in high-traffic areas.

Sliding Door Pull ADA, 630/US32D Stainless Steel

The 1069 series pocket door pulls are uniquely designed to meet American with Disabilities Act (ADA) requirements for pocket door applications. With a contemporary design and stylish black nylon handles the 1069 series is built for the most demanding applications while remaining aesthetically pleasing. The 1069 series is available in multiple functions and is fully customizable for most pocket door applications with wood doors.

Features:

• Complete pocket door ADA solution.
• Stylish black nylon handles standard.
• Easy installation and operation. Operates with heel, edge of hand or with the arm.
• Standard is for frame width up to 5.5" can be made for any frame width.
• Can be used on a 1-3/8" door, as well as a 1-3/4" door.
• Multiple functions for different applications.
• Exterior emergency access on full privacy.
• For wood doors only

Functions:

• 1069: ADA Pocket door pull, passage
• 1069L: ADA Pocket door pull, latching (non-locking)
• 1069FP: ADA Pocket door pull, full privacy

Applications:

• Assisted living
• Hospitals and health care facilities
• Office buildings
• Universities and higher education
• Hospitality
• K-12 Schools
• Senior living

Finishes:

• 605 - Polished brass
• 606 - Satin brass, clear coated
• 609 - Satin brass, blackened, satin relieved, clear coated
• 612 - Satin bronze, clear coated
• 613 - Dark oxidized satin Bronze, oil rubbed
• 622 - Satin black coated
• 628 - Satin aluminum, clear anodized
• 629 - Polished stainless Steel
• 630 - Satin stainless steel
