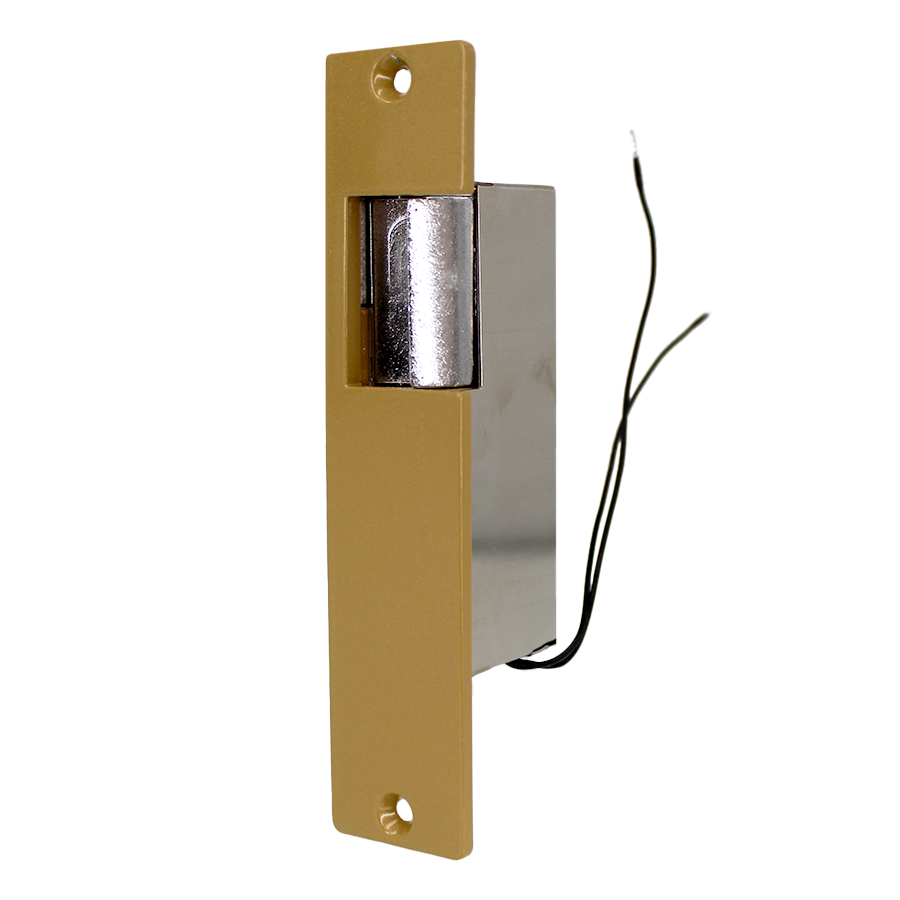

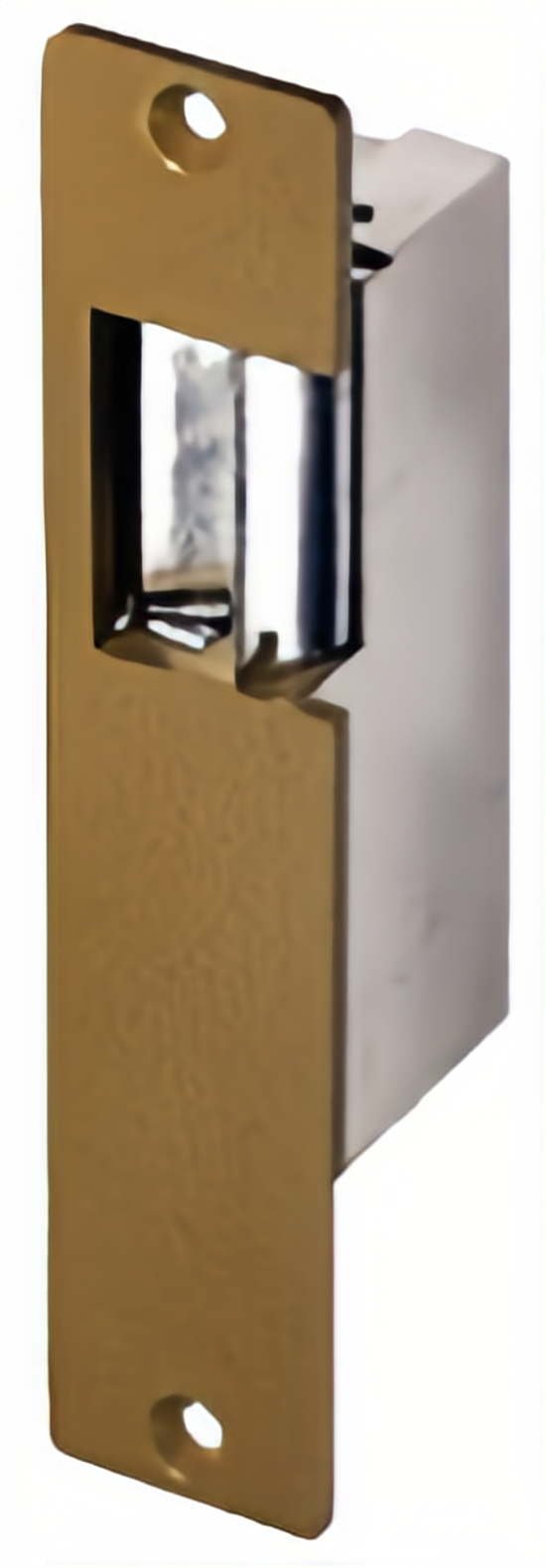

Trine 001-8-16VAC Electric Strike, 8-16VAC, Fail Secure, 5-7/8" x 1-1/4" Faceplate, Brass Coat

Trine Access Technology 001-8-16VAC Electric Strike offers a reliable and secure solution for both new and replacement installations in wood and metal jambs. Designed to work seamlessly with locksets featuring up to a 5/8" throw, this electric strike is perfect for ensuring safety without compromising on accessibility. With a robust faceplate measuring 5-7/8" x 1-1/4", the 001-8-16VAC supports a mortise backset of 1-9/16", making it suitable for various applications. The strike is engineered with a fail-secure mode, ensuring that during power loss, the door remains locked, providing peace of mind. Electrical versatility is a standout feature, as this model operates on 8-16VAC or 4-6VDC, with options for continuous or intermittent duty depending on the voltage. The sound options include a buzzing alert or silent operation, catering to different installation needs. Finished in a durable brass powder coat, this electric strike not only performs excellently but also enhances the aesthetic appeal of your entry points. Non-handed design simplifies installation, making it compatible with both cylindrical and mortise lock categories. Elevate your security with the Trine Access Technology 001-8-16VAC Electric Strike-where functionality meets reliability.

Electric Strike, 8-16VAC, Fail Secure, 5-7/8in x 1-1/4in Faceplate, up to 5/8in Throw, Brass Powder Coat

For use in new or replacement installations in wood and metal jambs. For use with locksets having up to 5/8" throw, based on 1/8" door gap.

Features:

• Face Plate: 5-7/8" x 1-1/4"
• Mortise Backset: 1-9/16"
• Cavity Depth: 1/2"
• Cavity Width: 9/16"
• Cavity Height: 1-1/2"
• Options: RS (fail safe) -- on DC only -- add "RS" to model #

Electrical Characteristics:

• 8-16VAC/4-6VDC:
• Amps: 1.3-2.7
• Ohms (Ω): 1.4
• Duty: Intermittent
• Sound: Buzz
• Wire Color: Black
• 12DC:
• Amps: 0.40
• Ohms (Ω): 30.0
• Duty: Continuous
• Sound: Silent
• Wire Color: Red/White
• 24AC:
• Amps: 1.40
• Ohms (Ω): 4.7
• Duty: Intermittent
• Sound: Buzz
• Wire Color: Red
• 24DC:
• Amps: 0.19
• Ohms (Ω): 125.0
• Duty: Continuous
• Sound: Silent
• Wire Color: Black/White

Finishes:

• 001 - Brass powder coated
• 001C - Satin Chrome
