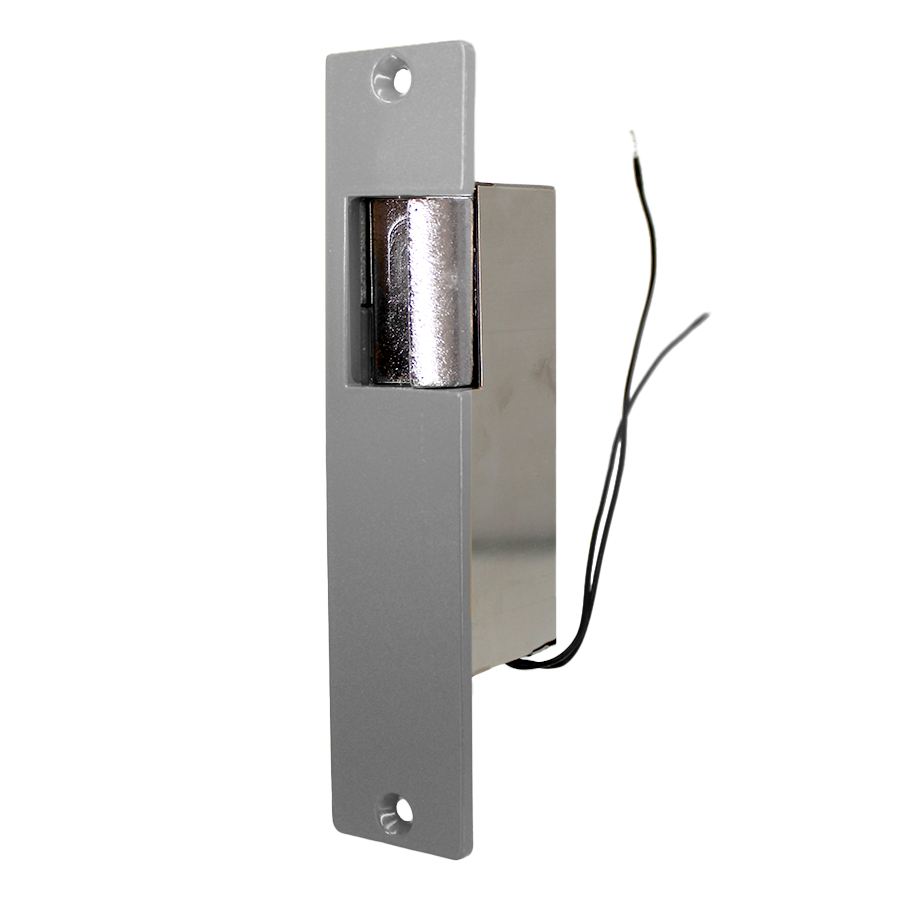

Trine 001C-24VDC 24VDC Electric Strike, Fail Secure/Safe, 5-7/8" x 1-1/4", Satin Chrome

Trine Access Technology 001C-24VDC Electric Strike delivers reliable access control solutions for both new and replacement installations in wood and metal jambs. Designed for compatibility with locksets featuring a throw of up to 5/8 inches, this electric strike ensures seamless integration based on a standard 1/8-inch door gap. The sleek satin chrome finish and dimensions of 5-7/8 inches by 1-1/4 inches for the faceplate make this electric strike an attractive and functional choice for any setting. With a mortise backset of 1-9/16 inches and a cavity depth of 1/2 inch, it provides a robust solution for various door types. Electrical specifications include a 24V DC option with continuous duty, ensuring silent operation, while the fail secure functionality adds an extra layer of security. The unit operates efficiently across various voltages, including 8-16VAC and 12DC, and is suitable for both intermittent and continuous duty cycles. Non-handed design allows for versatile installation, making it a practical choice for building professionals and knowledgeable homeowners alike. Enhance your access control system with the durability and performance of the Trine Access Technology 001C-24VDC Electric Strike.

Electric Strike, 24VDC, Fail Secure/Fail Safe, 5-7/8in x 1-1/4in Faceplate, up to 5/8in Throw, Satin Chrome

For use in new or replacement installations in wood and metal jambs. For use with locksets having up to 5/8" throw, based on 1/8" door gap.

Features:

• Face Plate: 5-7/8" x 1-1/4"
• Mortise Backset: 1-9/16"
• Cavity Depth: 1/2"
• Cavity Width: 9/16"
• Cavity Height: 1-1/2"
• Options: RS (fail safe) -- on DC only -- add "RS" to model #

Electrical Characteristics:

• 8-16VAC/4-6VDC:
• Amps: 1.3-2.7
• Ohms (Ω): 1.4
• Duty: Intermittent
• Sound: Buzz
• Wire Color: Black
• 12DC:
• Amps: 0.40
• Ohms (Ω): 30.0
• Duty: Continuous
• Sound: Silent
• Wire Color: Red/White
• 24AC:
• Amps: 1.40
• Ohms (Ω): 4.7
• Duty: Intermittent
• Sound: Buzz
• Wire Color: Red
• 24DC:
• Amps: 0.19
• Ohms (Ω): 125.0
• Duty: Continuous
• Sound: Silent
• Wire Color: Black/White

Finishes:

• 001 - Brass powder coated
• 001C - Satin Chrome
