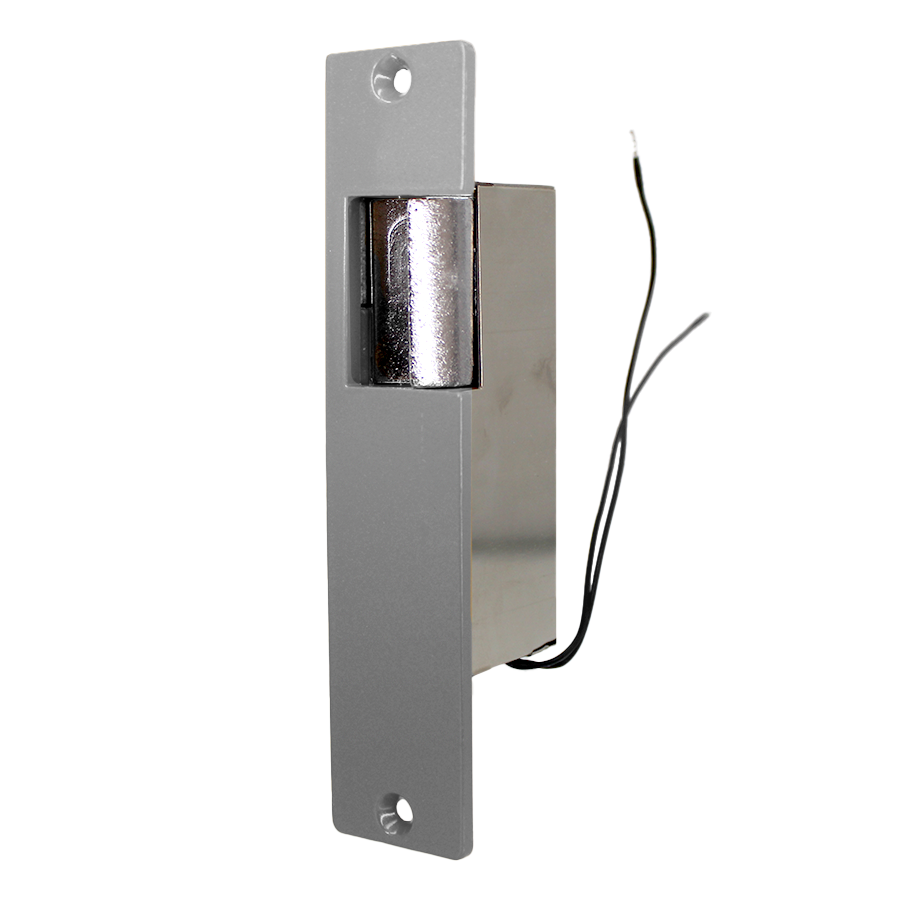

Trine 001C-8-16VAC Electric Strike, 8-16VAC, Fail Secure, Satin Chrome, 5-7/8in x 1-1/4in

Trine Access Technology 001C-8-16VAC Electric Strike offers a robust solution for access control in both wood and metal jambs. Designed for new or replacement installations, this fail secure electric strike operates with locksets featuring a throw of up to 5/8 inches, effectively accommodating a standard 1/8-inch door gap. With a faceplate measuring 5-7/8 inches by 1-1/4 inches, the 001C model is versatile for various applications. Its mortise backset is 1-9/16 inches, while the cavity dimensions are 1/2 inches deep, 9/16 inches wide, and 1-1/2 inches high. This non-handed unit provides ease of installation regardless of door swing direction. The electric strike supports a voltage range of 8-16VAC, ensuring compatibility with multiple systems. It features different electrical characteristics depending on the power source, with options for intermittent or continuous duty, making it adaptable for different security setups. The satin chrome finish adds a sleek, modern touch to any door hardware. Whether upgrading security in a residential or commercial setting, the Trine 001C-8-16VAC Electric Strike is an excellent choice for reliable access control, offering both functionality and aesthetic appeal.

Electric Strike, 8-16VAC, Fail Secure, 5-7/8in x 1-1/4in Faceplate, up to 5/8in Throw, Satin Chrome

For use in new or replacement installations in wood and metal jambs. For use with locksets having up to 5/8" throw, based on 1/8" door gap.

Features:

• Face Plate: 5-7/8" x 1-1/4"
• Mortise Backset: 1-9/16"
• Cavity Depth: 1/2"
• Cavity Width: 9/16"
• Cavity Height: 1-1/2"
• Options: RS (fail safe) -- on DC only -- add "RS" to model #

Electrical Characteristics:

• 8-16VAC/4-6VDC:
• Amps: 1.3-2.7
• Ohms (Ω): 1.4
• Duty: Intermittent
• Sound: Buzz
• Wire Color: Black
• 12DC:
• Amps: 0.40
• Ohms (Ω): 30.0
• Duty: Continuous
• Sound: Silent
• Wire Color: Red/White
• 24AC:
• Amps: 1.40
• Ohms (Ω): 4.7
• Duty: Intermittent
• Sound: Buzz
• Wire Color: Red
• 24DC:
• Amps: 0.19
• Ohms (Ω): 125.0
• Duty: Continuous
• Sound: Silent
• Wire Color: Black/White

Finishes:

• 001 - Brass powder coated
• 001C - Satin Chrome
