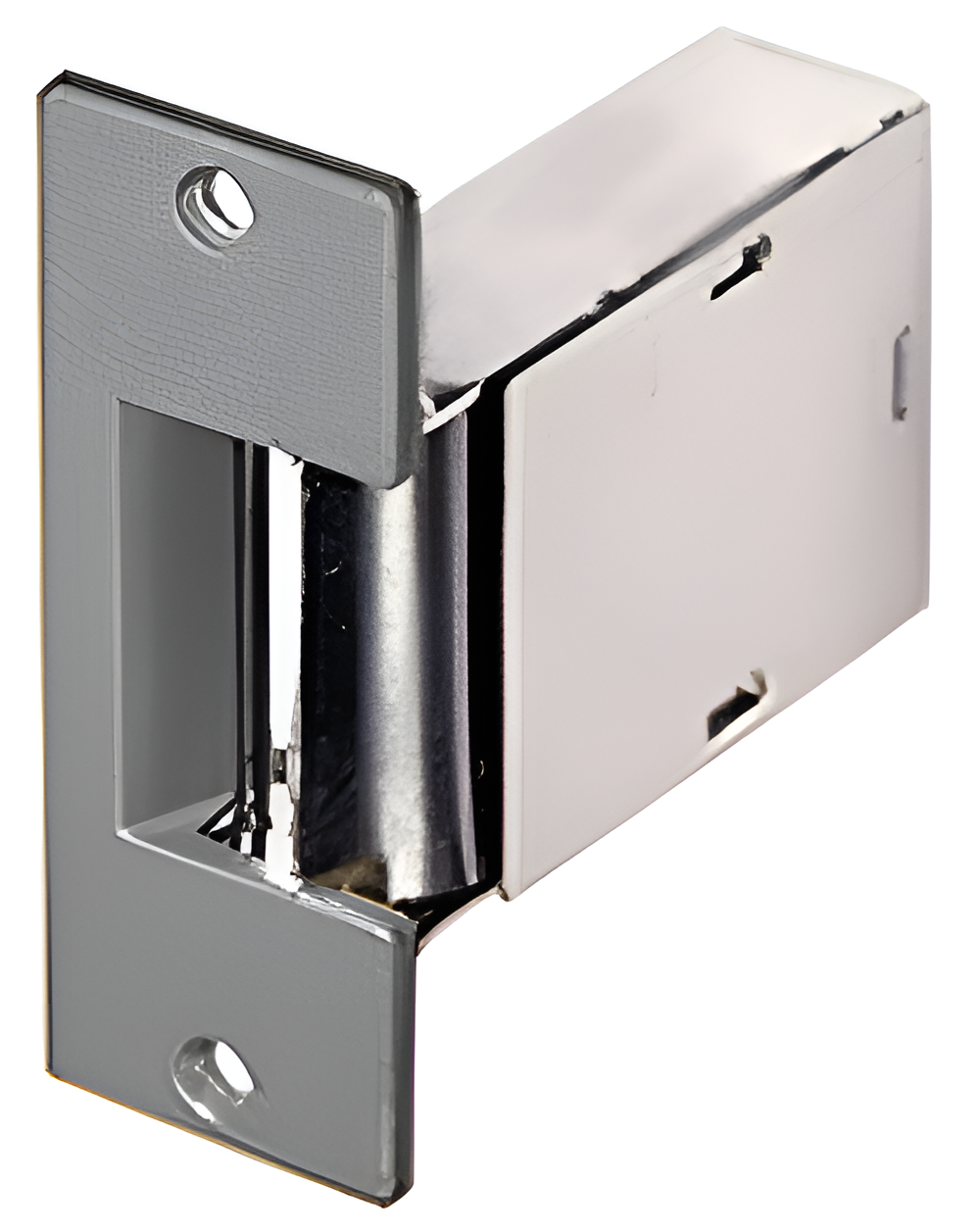

Trine 005C Electric Strike, 8-16VAC, Fail Secure, Satin Chrome, 3.5"x1.375", 5/8" Throw

Trine Access Technology 005C Electric Strike offers a robust solution for enhancing security in both wood jambs and iron gates. Designed for use with bored cylindrical locksets featuring a throw of up to 5/8", this electric strike is perfect for replacement installations, ensuring a seamless fit with a standard 1/8" door gap. Measuring 3-1/2" x 1-3/8", the satin chrome faceplate not only adds a sleek aesthetic but also provides durability and reliability. The strike operates on 8-16VAC voltage, making it versatile for various applications. With a mortise backset of 2-3/4" and a cavity depth of 1/2", the 005C is engineered for easy installation and compatibility with multiple frame types, including both metal and wood. This fail secure model ensures that when power is lost, the door remains locked, providing peace of mind for residential and commercial users alike. Additionally, the non-handed design simplifies installation, accommodating any door orientation. The 005C Electric Strike is an ideal choice for those seeking a dependable, stylish, and efficient access control solution that meets modern security needs.

Electric Strike, 8-16VAC, Fail Secure, 3-1/2in x 1-3/8in Faceplate, up to 5/8in Throw, Satin Chrome

For use in replacement installations in wood jambs and iron gates. Use with bored cylindrical locksets having up to 5/8" throw, based on 1/8" door gap.

Features:

• Face Plate: 3-1/2" x 1-3/8"
• Mortise Backset: 2-3/4"
• Cavity Depth: 1/2"
• Cavity Width: 9/16"
• Cavity Height: 1-1/2"
• Options: RS (fail safe) -- on DC only -- add "RS" to model #

Finishes:

• 005 - Brass powder coated
• 005C - Satin chrome

Resources

• Diagram
