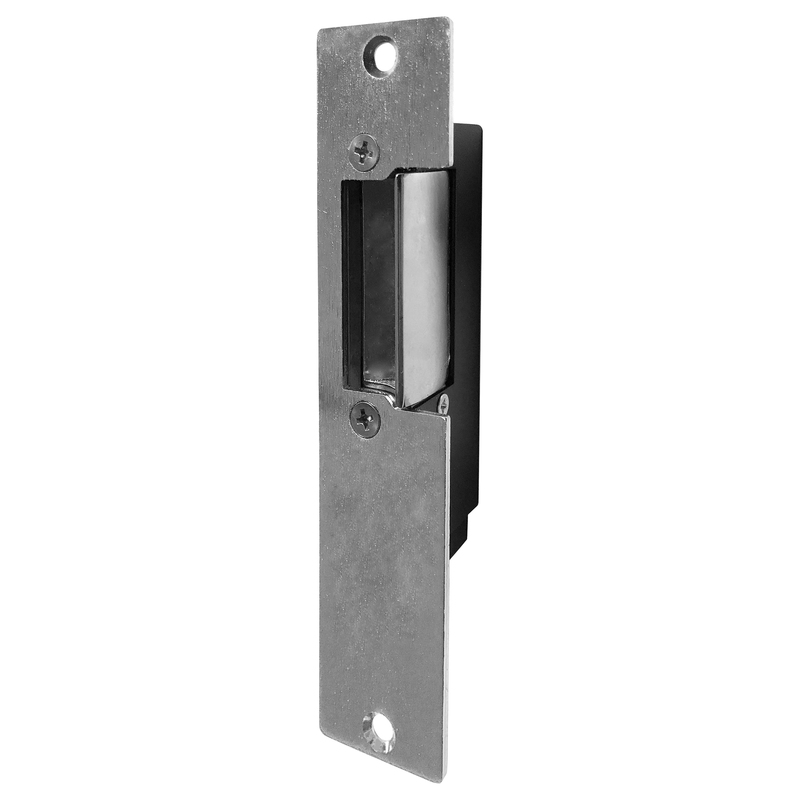

Trine 1001-2C-16-24AC/DC Electric Strike

Trine 1001-2C-16-24AC/DC Electric Strike is engineered for light commercial applications, delivering reliability and security in a sleek satin chrome finish. With dimensions of 5-7/8" x 1-1/4", this electric strike features a fail secure function, making it an excellent choice for environments where safety is a priority. Designed to handle poorly aligned frames, the non-handed operation allows for versatile installation in both new and replacement scenarios. The 1001-2C boasts an impressive holding force of 1,000 lbs and has undergone rigorous durability testing for up to 500,000 life cycles, ensuring long-lasting performance. Its tall latch cavity further enhances its adaptability. Installation is straightforward thanks to screw terminals that allow for quick connections. The adjustable amperage draw of 0.27 to 0.48 ensures compatibility with various systems operating at 14-24 VAC/DC. This product also comes with a one-year limited warranty, providing peace of mind. Whether you're outfitting a commercial space or upgrading an existing security system, the Trine 1001-2C Electric Strike combines strength, durability, and ease of installation, making it an ideal choice for discerning professionals and homeowners alike.

Electric Strike

Electric Strike, 14-24VAC/DC, Fail Secure, 5-7/8" x 1-1/4", Satin Chrome

The adjustable 1000 & 2000 Seies is a light commercial series. These strike are non-handed used in new and replacement applications. The stike is used in poorly aligned frames. Holding force is 900lbs and a duribility testing of 500,000 life cycles.

Durability - 500,000 Life Cycles.

• Releases Under Slight Door Pre-Load.
• Holding Force - 1000 lbs.
• Tall Latch Cavity.
• Non Handed Operation.
• Screw Terminals - Quick Connection.

Resources

• 1000 Series Electric Strikes Cut Sheet
• 2023 Trine Price Book (effective 4.28.2023)
