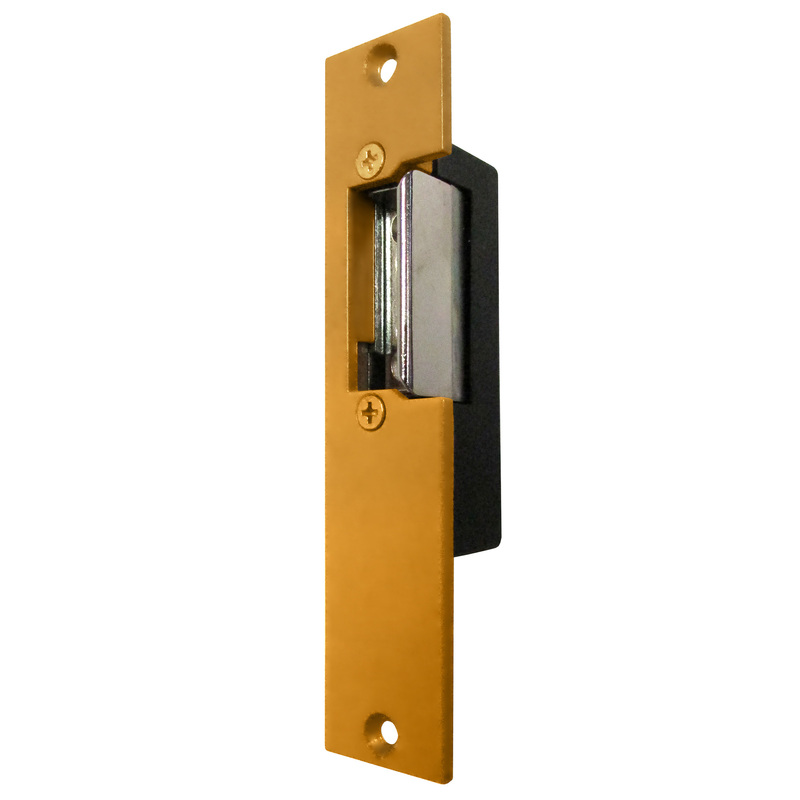

Trine 2001-24DC Electric Strike

Trine 2001-24DC Electric Strike offers a reliable and efficient solution for both new installations and replacements in light commercial applications. Designed with a fail secure configuration, this electric strike operates at 24VDC and features a robust holding force of 900 lbs, ensuring secure access control. Measuring 5-7/8" x 1-1/4", its brass powder-coated finish not only enhances durability but also complements any door aesthetic. The Trine 2001-24DC is particularly suited for poorly aligned frames, thanks to its adjustable horizontal latch that allows for 1/8" of horizontal movement. This feature ensures that it accommodates wider latch bolts and misaligned doors with ease. With a remarkable durability rating of 500,000 life cycles, it provides long-lasting performance that building professionals can count on. Installation is straightforward, as the non-handed design allows for versatile application, while the screw terminals enable quick connections. The solid cast latch is chrome-plated, adding an extra layer of resilience. Backed by a one-year limited warranty, the Trine 2001-24DC Electric Strike stands out as an essential component for any commercial security setup, marrying functionality with reliability seamlessly.

Electric Strike

Electric Strike, 24VDC, Fail Secure, 5-7/8" x 1-1/4", Brass Powder Coated

The adjustable 1000 & 2000 Seies is a light commercial series. These strike are non-handed used in new and replacement applications. The stike is used in poorly aligned frames. Holding force is 900lbs and a duribility testing of 500,000 life cycles.

Allows adjustment for wider latch bolts & poorly aligned doors & locksets.

• 1/8” Horizontal Latch Adjustment.
• Releases Under Slight Door Pre-Load.
• 500,000 Life Cycles -- Holding Force - 900 lbs.
• Solid Cast Latch - Chrome Plated.
• Non Handed Operation.
• Screw Terminals - Quick Connection.

Resources

• 2000 Series Electric Strikes Cut Sheet
• 2023 Trine Price Book (effective 4.28.2023)
