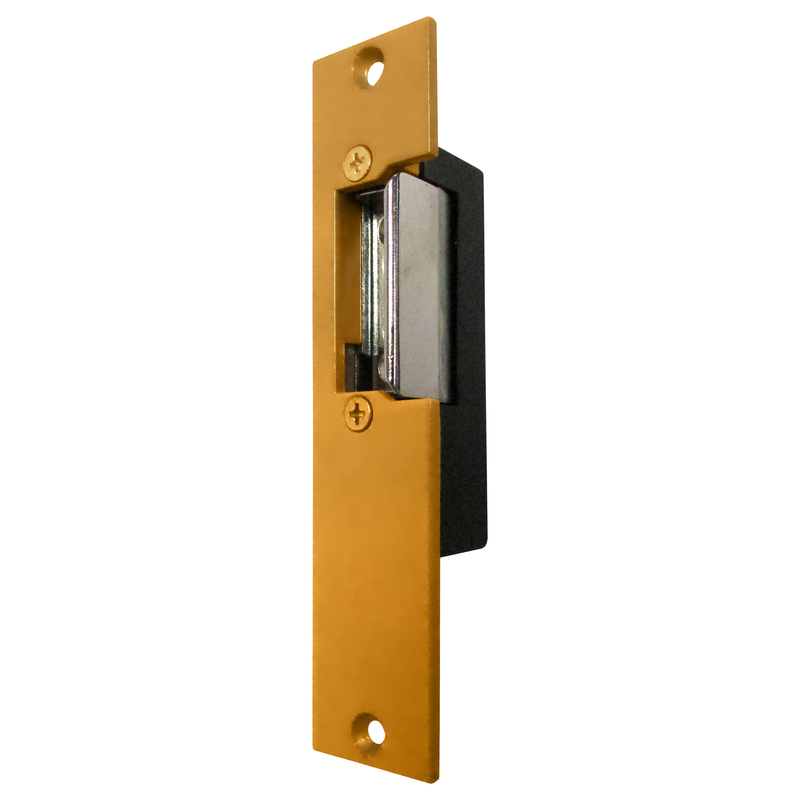

Trine 2001-6-14AC/DC Electric Strike

Trine 2001-6-14AC/DC Electric Strike offers a reliable solution for both new installations and replacements in commercial settings. Designed for light commercial use, this electric strike features a fail secure operation, ensuring that the door remains locked under power failure conditions. With a compact faceplate size of 5-7/8" x 1-1/4", it fits seamlessly into various door frames, even those that are poorly aligned. One of its standout features is the adjustable horizontal latch, which accommodates wider latch bolts and helps to compensate for misaligned doors and locksets. The strike boasts an impressive holding force of 900 lbs, backed by rigorous durability testing of 500,000 life cycles, ensuring long-lasting performance. Installation is straightforward, thanks to quick-connect screw terminals that facilitate an efficient setup. Crafted from high-quality materials and finished in a matte brass powder coating, the Trine 2001-6 not only performs well but also enhances the aesthetic of any entryway. With an operating voltage of 6-14 VAC/DC and a limited one-year warranty, this electric strike is a dependable choice for professionals seeking security solutions that blend functionality with ease of use.

Electric Strike

Electric Strike, 6-14VAC/DC, Fail Secure, 5-7/8" x 1-1/4", Brass Powder Coated

The adjustable 1000 & 2000 Seies is a light commercial series. These strike are non-handed used in new and replacement applications. The stike is used in poorly aligned frames. Holding force is 900lbs and a duribility testing of 500,000 life cycles.

Allows adjustment for wider latch bolts & poorly aligned doors & locksets.

• 1/8” Horizontal Latch Adjustment.
• Releases Under Slight Door Pre-Load.
• 500,000 Life Cycles -- Holding Force - 900 lbs.
• Solid Cast Latch - Chrome Plated.
• Non Handed Operation.
• Screw Terminals - Quick Connection.

Resources

• 2000 Series Electric Strikes Cut Sheet
• 2023 Trine Price Book (effective 4.28.2023)
