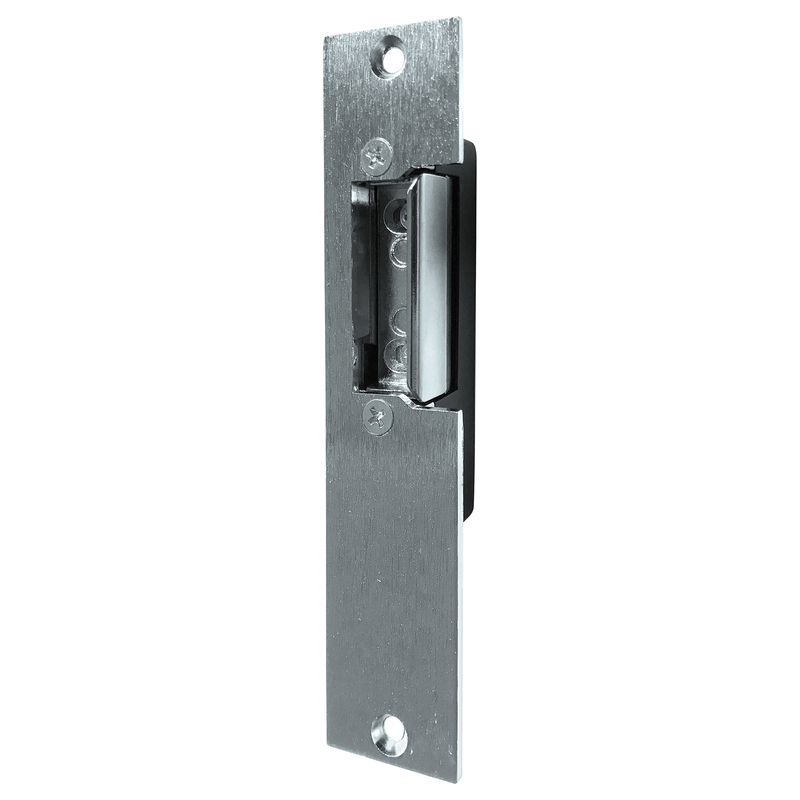

Trine 2001C-24DC Electric Strike

Trine 2001C-24DC Electric Strike offers a robust and reliable solution for your access control needs, featuring a fail secure design that ensures security even in power outages. With a compact faceplate size of 5-7/8" x 1-1/4" and a sleek satin chrome finish, this electric strike seamlessly integrates into both new and replacement applications. Engineered for light commercial use, the 2000 Series strikes are non-handed, making installation straightforward regardless of door orientation. Designed to accommodate poorly aligned frames, the Trine 2001C allows for 1/8" horizontal latch adjustments and releases under slight door pre-load, enhancing functionality and ease of use. With a remarkable holding force of 900 lbs and durability rated for 500,000 life cycles, this electric strike meets the demands of high-traffic areas. The solid cast latch is chrome plated for added durability, while screw terminals provide quick and convenient connections. Operating on 24 VDC and drawing between 0.11 to 0.47 amps, the Trine 2001C-24DC Electric Strike is ideal for commercial installations. Backed by a one-year limited warranty, it is a dependable choice for securing your premises efficiently and effectively.

Electric Strike

Electric Strike, 24VDC, Fail Secure, 5-7/8" x 1-1/4", Satin Chrome

The adjustable 1000 & 2000 Seies is a light commercial series. These strike are non-handed used in new and replacement applications. The stike is used in poorly aligned frames. Holding force is 900lbs and a duribility testing of 500,000 life cycles.

Allows adjustment for wider latch bolts & poorly aligned doors & locksets.

• 1/8” Horizontal Latch Adjustment.
• Releases Under Slight Door Pre-Load.
• 500,000 Life Cycles -- Holding Force - 900 lbs.
• Solid Cast Latch - Chrome Plated.
• Non Handed Operation.
• Screw Terminals - Quick Connection.
