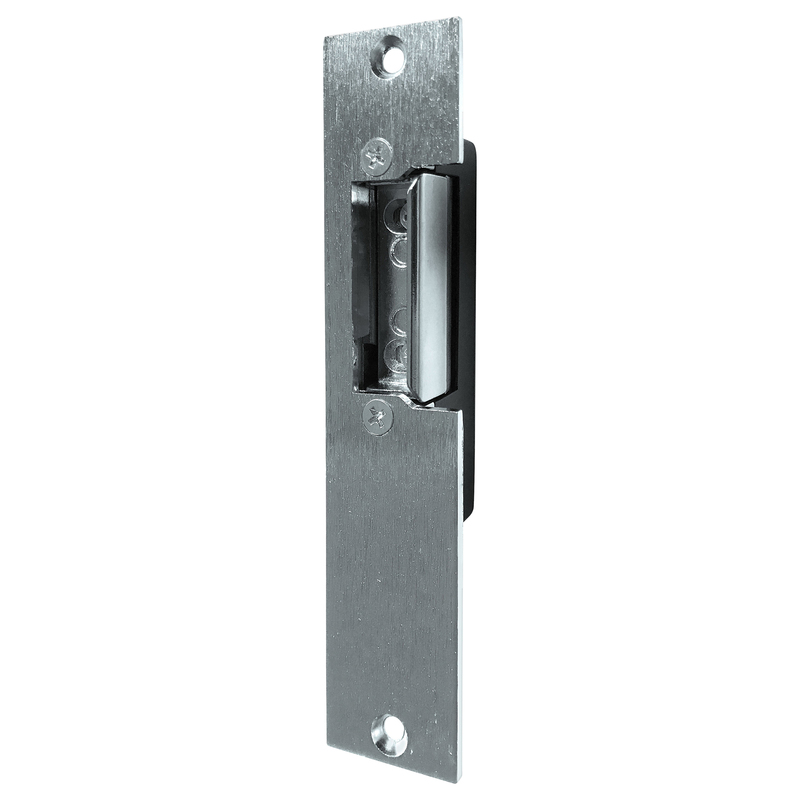

Trine 2001C-6-14AC/DC Electric Strike Hardware

Trine 2001C-6-14AC/DC Electric Strike delivers reliable access control with its fail secure design, making it an ideal choice for both new installations and replacements in commercial settings. Measuring 5-7/8" x 1-1/4", this electric strike features a sleek satin chrome finish that complements various door styles. Designed for light commercial use, the 2000 Series strikes are non-handed and provide an adjustable solution for poorly aligned frames. With a holding force of 900 lbs, the Trine 2001C can withstand significant pressure, ensuring security without compromise. It accommodates wider latch bolts and door pre-loads, thanks to its 1/8" horizontal latch adjustment feature. Built to last, this electric strike has been rigorously tested for 500,000 life cycles, promising long-term durability. Quick connection is facilitated through screw terminals, making installation straightforward and efficient. Constructed from solid steel with a matte silver finish, this strike combines strength with aesthetic appeal. Operating at 6-14 VAC/DC, Trine’s electric strike is an exceptional choice for commercial applications, backed by a one-year limited warranty. Enhance your building’s security with the Trine 2001C-6-14AC/DC Electric Strike, where performance meets quality.

Electric Strike

Electric Strike, 6-14VAC/DC, Fail Secure, 5-7/8" x 1-1/4", Satin Chrome

The adjustable 1000 & 2000 Seies is a light commercial series. These strike are non-handed used in new and replacement applications. The stike is used in poorly aligned frames. Holding force is 900lbs and a duribility testing of 500,000 life cycles.

Allows adjustment for wider latch bolts & poorly aligned doors & locksets.

• 1/8” Horizontal Latch Adjustment.
• Releases Under Slight Door Pre-Load.
• 500,000 Life Cycles -- Holding Force - 900 lbs.
• Solid Cast Latch - Chrome Plated.
• Non Handed Operation.
• Screw Terminals - Quick Connection.
