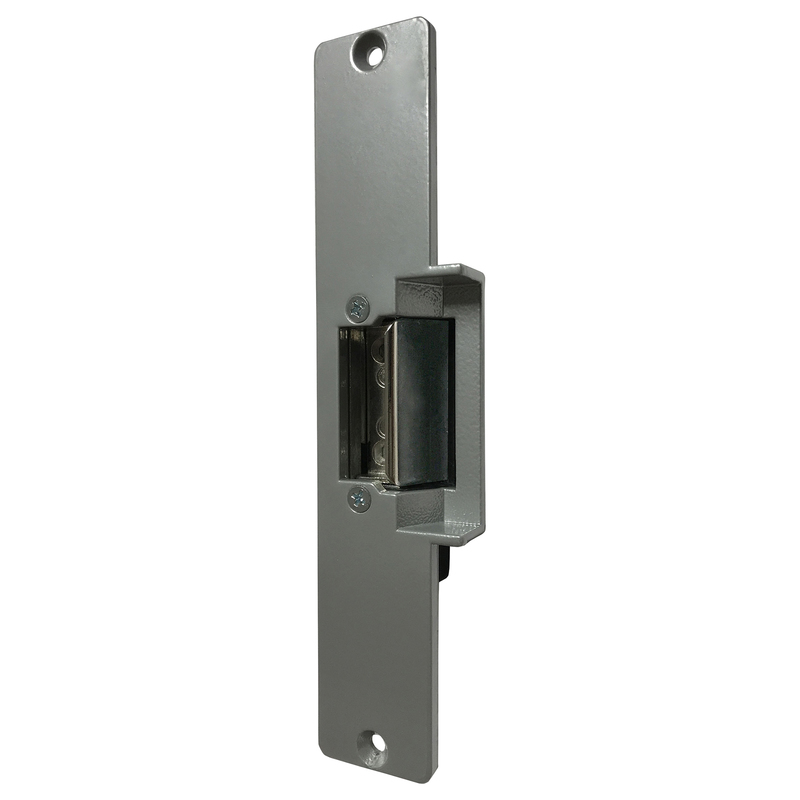

Trine 2002-16-24AC/DC-US28 Metal Frame Electric Strike

Trine 2002-16-24AC/DC-US28 Electric Strike - Metal Frame offers a robust solution for securing doors in light commercial environments. Designed to operate at 16-24VAC/DC, this fail-secure electric strike provides reliable performance with a holding force of up to 900 lbs. Measuring 7-15/16" x 1-7/16", it features a durable aluminum powder-coated finish in a sleek matte silver that complements various door styles. The adjustable 1000 and 2000 series strikes are non-handed, making them ideal for both new installations and replacements. They excel in applications with poorly aligned frames, allowing for 1/8" horizontal latch adjustment and releasing under slight door pre-load. With an impressive durability rating of 500,000 life cycles, the solid cast latch is chrome-plated for added strength and longevity. Installation is straightforward, thanks to screw terminals that enable quick connections. This electric strike is designed specifically for commercial applications, ensuring consistent security and ease of use. Backed by a one-year limited warranty, the Trine 2002-16-24AC/DC is a trusted choice for professionals seeking dependable door hardware solutions.

Electric Strike - Metal Frame

Electric Strike, 16-24VAC/DC, Fail Secure, 7-15/16" x 1-7/16", Aluminum Powder Coated

The adjustable 1000 & 2000 Seies is a light commercial series. These strike are non-handed used in new and replacement applications. The stike is used in poorly aligned frames. Holding force is 900lbs and a duribility testing of 500,000 life cycles.

Allows adjustment for wider latch bolts & poorly aligned doors & locksets.

• 1/8” Horizontal Latch Adjustment.
• Releases Under Slight Door Pre-Load.
• 500,000 Life Cycles -- Holding Force - 900 lbs.
• Solid Cast Latch - Chrome Plated.
• Non Handed Operation.
• Screw Terminals - Quick Connection.
