Trine 30RS Electric Strike

Your Price: $129.000

Retail Price:$215.000

Your Savings:$86.00(40%)

3000 Series Electric Strike Body, 12/24VAC/DC, Fail Safe

Part Number : TRI_30RS

Availability: 55 In Stock

Quantity

Description

Trine 30RS Electric Strike

The 3000 Series Electric strike. The smallest strike in the world. Grade 1 sereies electric strike with over 500,000 life cycles with solid steel stainless steel latch. Fail secure is standard fail safe is optional.

GRADE 1
500,000 + life cycles
1,500 + lbs. holding force (1,200 lbs. for 334)
Dynamic Force 70 ft/lb.
Solid stainless steel latch and in the device body.
Accepts a bolt with a up to 5/8" throw
Non-handed Unit (except 458, 478 LO/RO)
Fail secure - standard action (unlocks with power)
Fail safe - "RS" (locks with power)
Mechanism spacers increase cavity depth up to 1/8"

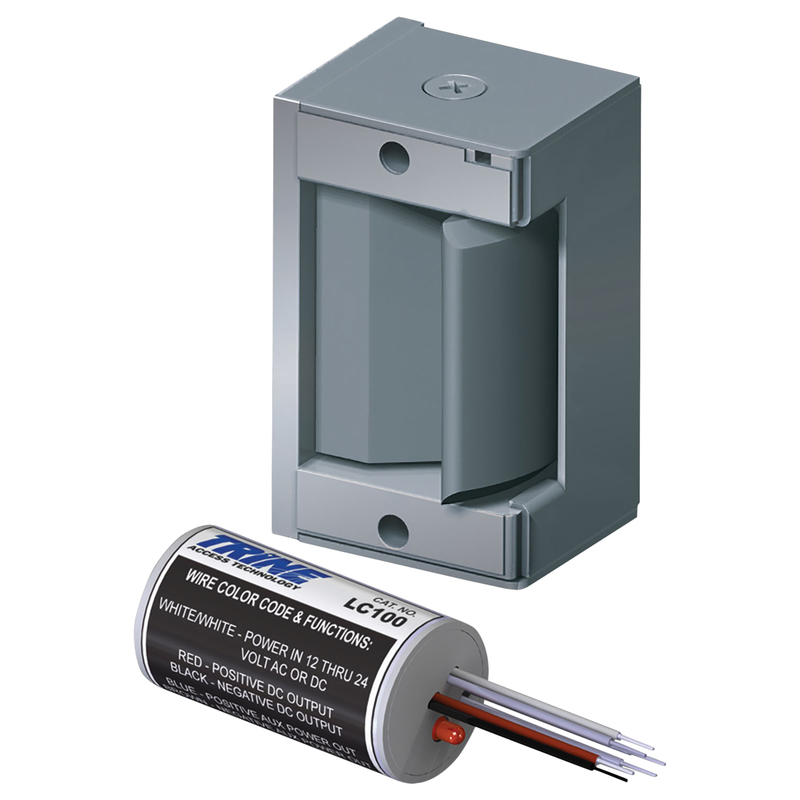

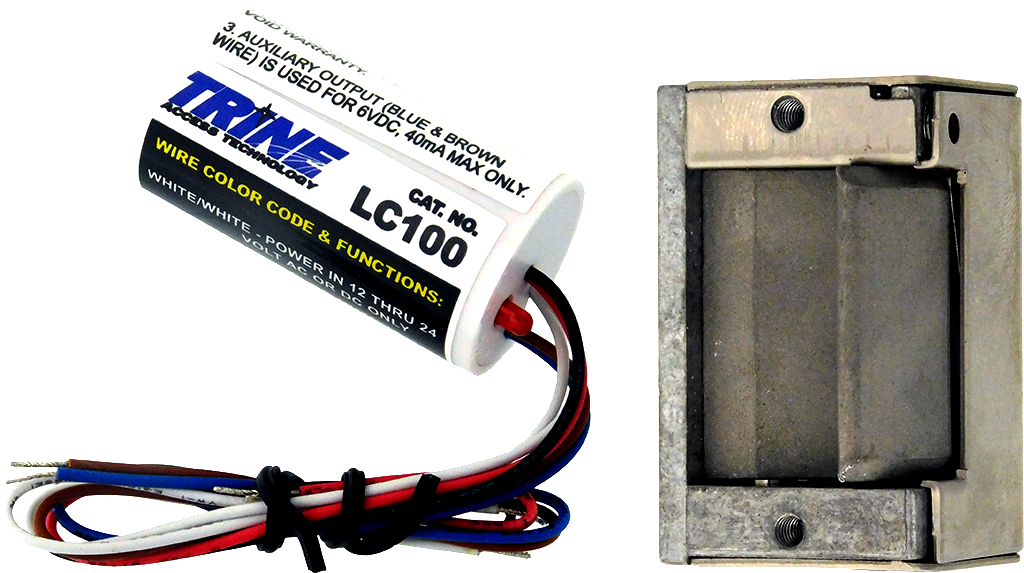

Available in 12 or 24 volts DC or with a Line Condition (LC100) which allows 11 thru 29 AC/DC Voltage input – with surge and kickback protection and continuous duty (use RS for Fail Safe configuration)

Attributes

Manufacturer surcharge: $ 0.0

Alternate Codes: 140652, 30RS

Amp Draw: .715-.743 / .378-.397

Base Material: VARIES

Category: Access Control, Electric Strikes

Commercial Residential: Commercial

Configuration: Centered

Fail Status: Fail Safe

Finish: 689/US28

Finish Description: Aluminum Painted

Finish Family: Matte Silver

Frame Type: Metal, Wood

Function: Electrically Locked (Fail Safe)

Grade: Grade 1

Handing: Non-Handed

Installation: Commercial

Keeper Size: 1/2 In.

Limited Warranty: 1 Year

Lock Category: Cylindrical

Operating Voltage: 12VACDC/24VACDC

Pack Qty: 1

Pbs Options: 147314045

Series: 3000 Series Electric Strikes

Subtype: Electric Strike

Switch Type: None

Throw: 5/8"

Type: ACCESS CONTROL

Unit of Measure: Each

Voltage: 12V DC, 24V DC
