Trine 3234-12/24DC26D KIT - 3000 Electric Strike Kit, Fail Secure, Satin Chrome, Fits Timely

Trine Access Technology 3234-12/24DC26D KIT is a powerful electric strike kit designed for maximum security and convenience. This kit features a BHMA Grade 1 mechanism that delivers an impressive 1,500 lbs of holding force, making it one of the strongest options available on the market. Perfect for tight installations, the 3000 series strikes are ideal for applications involving glass and aluminum doors or challenging frame materials like concrete-filled steel. The kit includes a 30LC body, a 234-375-26D faceplate with an extended ramp compatible with Timely frames, and an LC100 line conditioner that regulates voltage for optimal performance. The fail secure operation ensures that the strike unlocks with power, providing peace of mind. An impressive lifespan of over 500,000 cycles ensures durability, while the solid stainless steel latch and device body reinforce reliability. Available in 12 or 24 volts DC, this non-handed unit accommodates bolts with up to a 5/8" throw. The LC100 enhances functionality by offering surge protection and reduced heat output, making it suitable for continuous operation. With a sleek satin chrome finish, the Trine 3234-12/24DC26D KIT not only provides security but also complements modern architectural aesthetics.

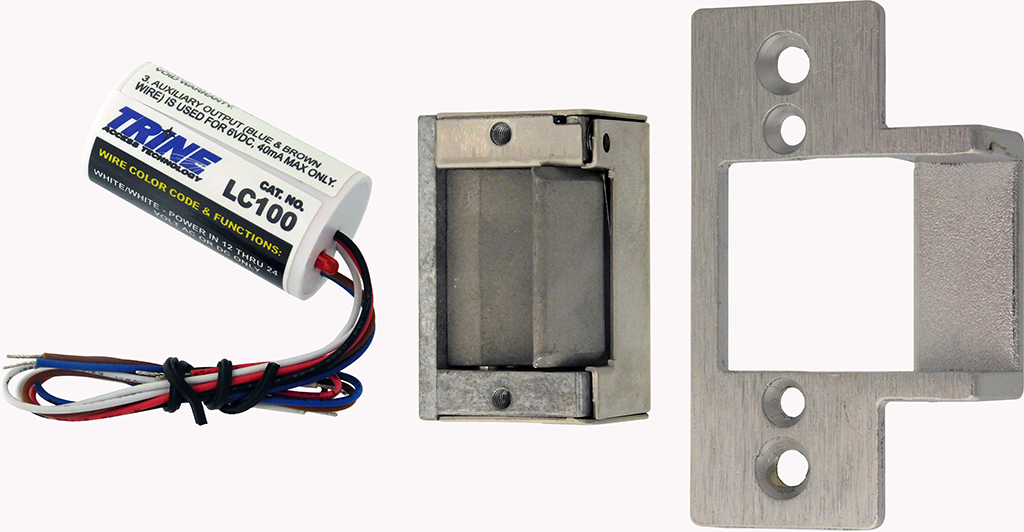

KIT - 3000 Electric Strike Kit, 12-24VAC/DC, Fail Secure, Contains 30LC Body, 234-375-26D Faceplate with Extended Ramp (Fits Timely), and LC100 Line Conditioner, Satin Chrome

The small 3000 series strikes pack a powerful punch. A BHMA grade 1 mechanism with up to 1,500 lbs of holding force. This is the most powerful strike you can get, a BHMA grade 1 electric strike with just a 1" total backset installation could not be easier. Consider installing the smallest electric strike series in the world in any tight installation. Any door front glass and aluminum situation, or when frame material is extremely difficult to cut, such as concrete filled steel.

Features:

• Grade 1
• 500,000 + life cycles
• 1,500 + lbs. holding force (1,200 lbs. for 334)
• Dynamic force 70 ft/lb.
• Solid stainless steel latch and in the device body.
• Accepts a bolt with a up to 5/8" throw
• Non-handed unit (except 458, 478 LO/RO)
• Fail secure - standard action (unlocks with power)
• Fail safe - "RS" (locks with power)
• Mechanism spacers increase cavity depth up to 1/8"
• Available in 12 or 24 volts DC or with a line condition (LC100) which allows 11 thru 29 AC/DC voltage input – with surge and kickback protection and continuous duty (use RS for fail safe configuration)

Specifications:

• BHMA Grade 1 - all models (except 334)
• BHMA Grade 2 - 334

3012/3024 Mechanism Electrical Characteristics:

Item	Voltage	Current/Amps	Ohms	Duty	Sound	Wire Color
3012	12DC	0.480	25.0	Intermittent	Silent	Blue
3024	24DC	0.240	100.0	Intermittent	Silent	White

30LC/30RS Mechanism Electrical Characteristics:

Voltage	Current/Amps	Ohms	Duty	Sound	Wire Color
12DC	0.743/0.298	13.0	Into./Cont.	Silent	Red
12AC	0.715/0.277	13.0	Into./Cont.	Silent	Red
24DC	0.397/0.170	13.0	Into./Cont.	Silent	Red
24AC	0.378/0.173	13.0	Into./Cont.	Silent	Red

LC100 - (Round unit; Updated in 2010):

• This model utilizes an external line conditioner (LC100) module to regulate input voltages, 11-29 AC or DC, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC100 provides current and voltage surge protection and kickback protection. LC100 can be placed up to 15 feet away from the electric strike body.
• Note: the 'square' LC100's are older units, are all prior to the 2010 upgrade. They do not contain the new features.

Options:

• Piezo buzzer for"standard models"
• BZ-12: Audible buzzer for 12DC power
• BZ-24: Audible buzzer for 24DC power
• Piezo buzzer for "LC models"
• BZ-6: Audible buzzer for 6DC power
