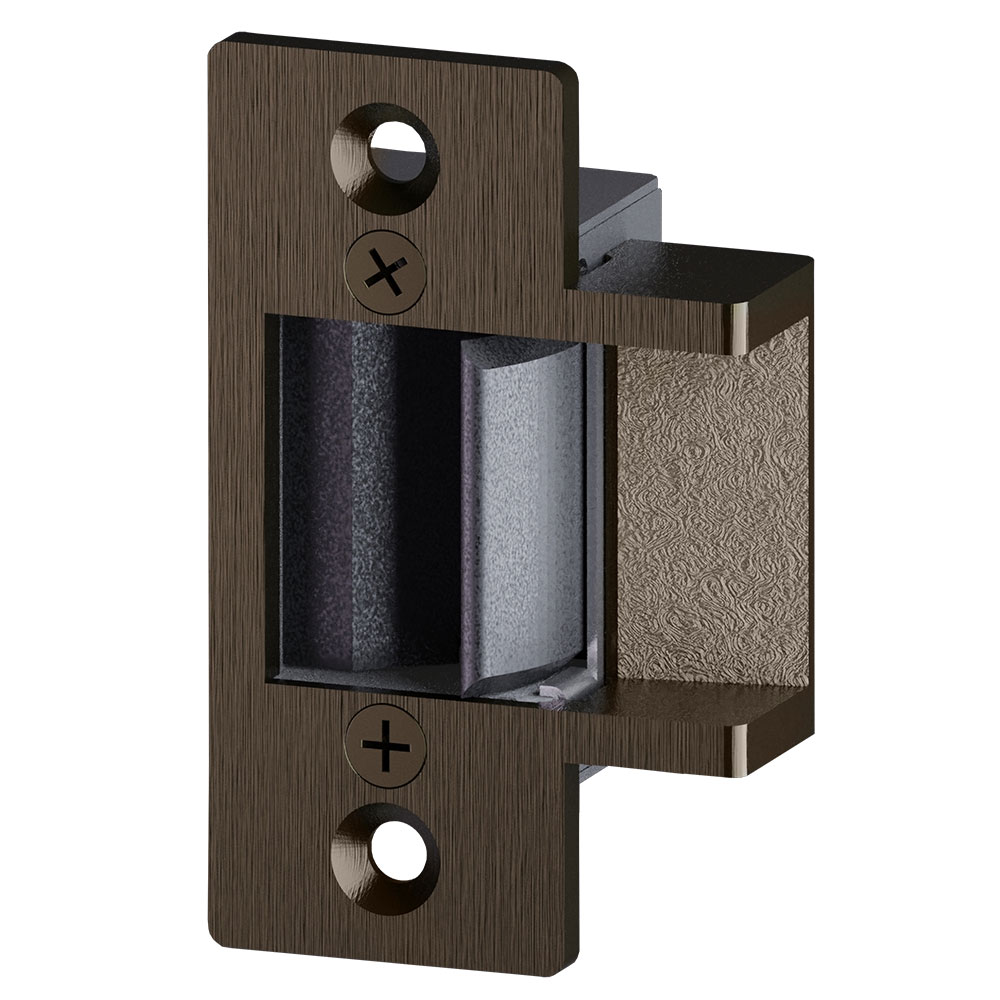

Trine 3234RS-10B 3000 Series Electric Strike

Trine 3234RS-10B 3000 Series Electric Strike delivers robust security in a compact design, making it the smallest strike in the world. Engineered for both durability and performance, this Grade 1 electric strike boasts an impressive lifespan of over 500,000 cycles, thanks to its solid steel and stainless steel latch construction. With a holding force of up to 1,500 lbs, it ensures that your entry points remain secure under all circumstances. Designed for commercial applications, the 3000 Series Electric Strike features a fail-safe operation, with an optional fail-secure configuration available. Measuring 2-3/4" x 1-1/8", its faceplate is finished in a rich oil-rubbed bronze (613/US10B) that complements various architectural styles. The strike operates on a voltage of 12/24VAC/DC and draws between .11 and .29 amps, ensuring efficient power usage. Installation is straightforward, designed for commercial settings, and comes with a limited one-year warranty for peace of mind. The centered configuration and 1/2" keeper size enhance compatibility with various door types. Trust the Trine 3234RS-10B to provide reliable access control while seamlessly integrating into your security system.

3000 Series Electric Strike

3000 Series Electric Strike, 12/24VAC/DC, Fail Safe2-3/4" x 1-1/8", Oil Rubbed Bronze

The 3000 Series Electric strike. The smallest strike in the world. Grade 1 sereies electric strike with over 500,000 life cycles with solid steel stainless steel latch. Fail secure is standard fail safe is optional.

A BHMA Grade 1 Mechanism with up to 1,500 lbs of holding force.
