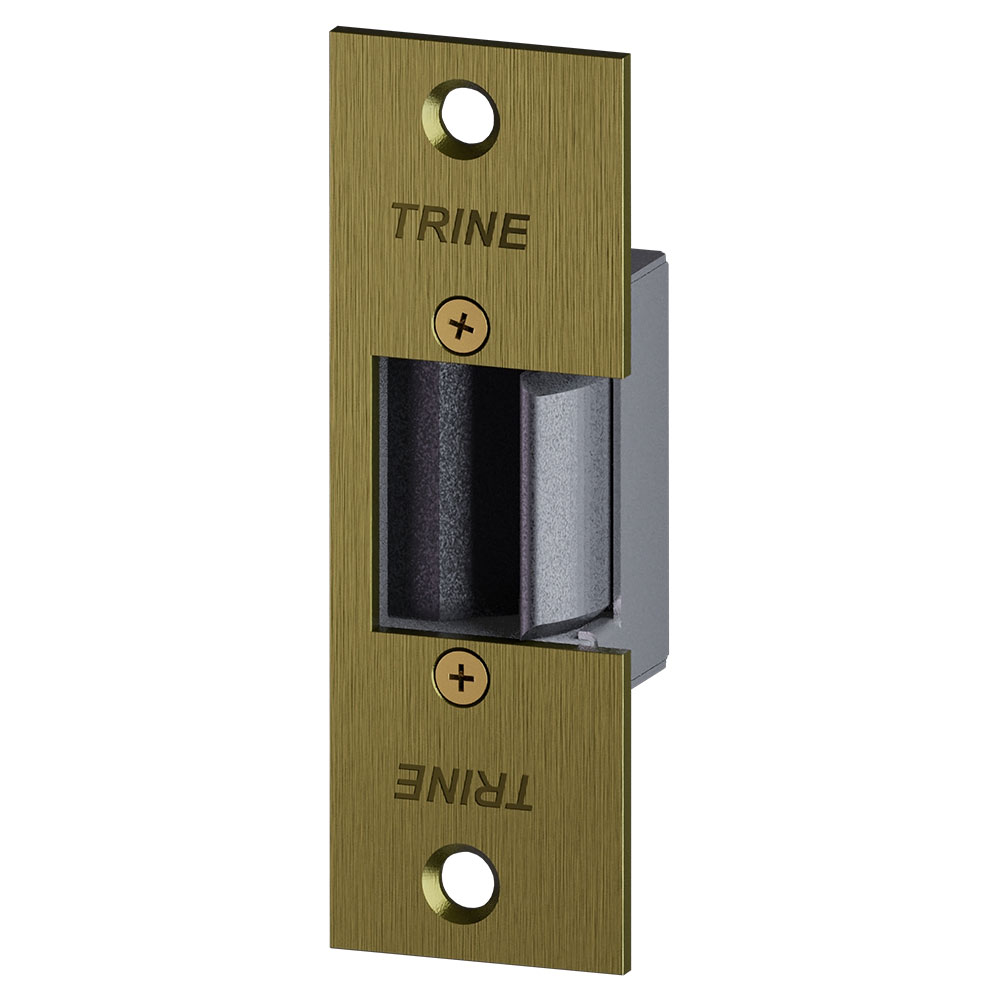

Trine 3234WLC-US4 3000 Series Electric Strike

Trine 3234WLC-US4 3000 Series Electric Strike offers an innovative solution for secure access control in commercial settings. This Grade 1 electric strike is recognized as the smallest in the world, making it ideal for installations where space is at a premium. Designed to operate on 12/24VAC/DC, it provides reliable performance with a fail secure function as standard, while fail safe is available as an option. Crafted from solid brass with a sleek matte brass finish, the 3000 Series Electric Strike features a compact faceplate size of 3-3/4" x 1-1/4". Its robust construction ensures longevity, boasting over 500,000 life cycles and a remarkable holding force of up to 1,500 lbs, thanks to its solid stainless steel latch. This electric strike is not only efficient but also easy to install in commercial applications. With an amp draw ranging from .715 to .743 and a keeper size of 1/2", the Trine 3234WLC-US4 is designed for seamless integration into your access control system. Backed by a limited one-year warranty, this electric strike is a reliable choice for building professionals and knowledgeable homeowners seeking enhanced security solutions.

3000 Series Electric Strike

3000 Series Electric Strike, 12/24VAC/DC, Fail Secure3-3/4" x 1-1/4", Satin Brass

The 3000 Series Electric strike. The smallest strike in the world. Grade 1 sereies electric strike with over 500,000 life cycles with solid steel stainless steel latch. Fail secure is standard fail safe is optional.

A BHMA Grade 1 Mechanism with up to 1,500 lbs of holding force.

Resources

• 2023 Trine Price Book (effective 4.28.2023)
• 3000 Series Electric Strikes Cut Sheet
