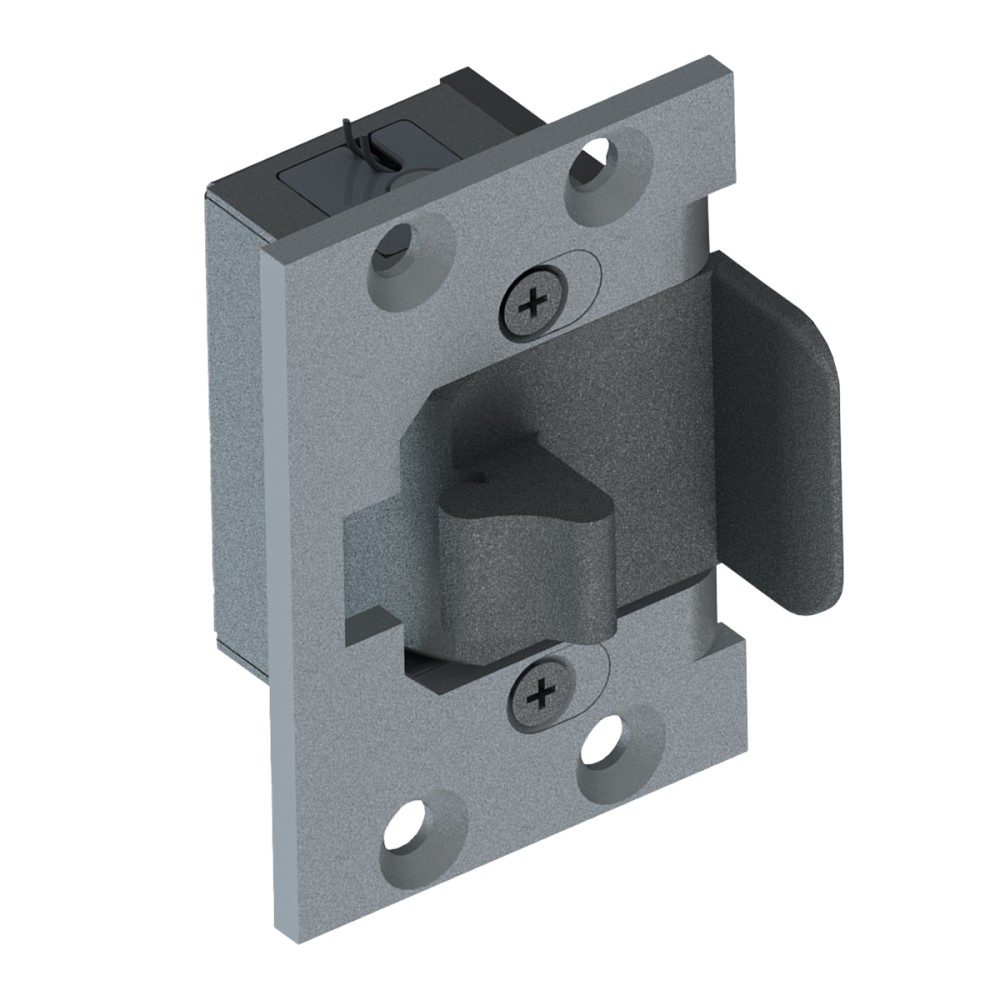

Trine 3250SOM-LC-ALDB Falcon 1990 Electric Strike, 12-24VAC/DC, Field Selectable, LC100 Conditioner

Trine Access Technology 3250SOM-LC-ALDB Electric Strike is designed for superior performance in access control systems. This heavy-duty Grade 1 electric strike boasts an impressive lifespan of over 500,000 cycles, making it an enduring choice for both commercial and residential applications. The 3250SOM-LC-ALDB features a solid stainless steel latch and locking mechanism, ensuring reliability and security. One of its standout attributes is the inclusion of two interchangeable faceplates in aluminum and dark bronze finishes, allowing seamless integration into various architectural styles. The device also offers horizontal adjustment, providing flexibility during installation. The integrated LC100 line conditioner is essential for surge and kickback protection, regulating input voltages of 11-28 AC or DC. This feature not only enhances operational efficiency but also reduces heat during continuous use, ensuring the longevity of the device. With versatile voltage options of 12 or 24 volts AC/DC and silent operation, the 3250SOM-LC-ALDB is perfect for environments that require discreet access. This electric strike is a reliable solution for those seeking advanced security without compromising on aesthetics or performance.

Electric Strike Falcon 1990 CVR Devices, 12-24VAC/DC, Field Selectable FS or FSE, LC100 Line Conditioner, Includes Both Aluminum and Dark Bronze Powder Coated Faceplates

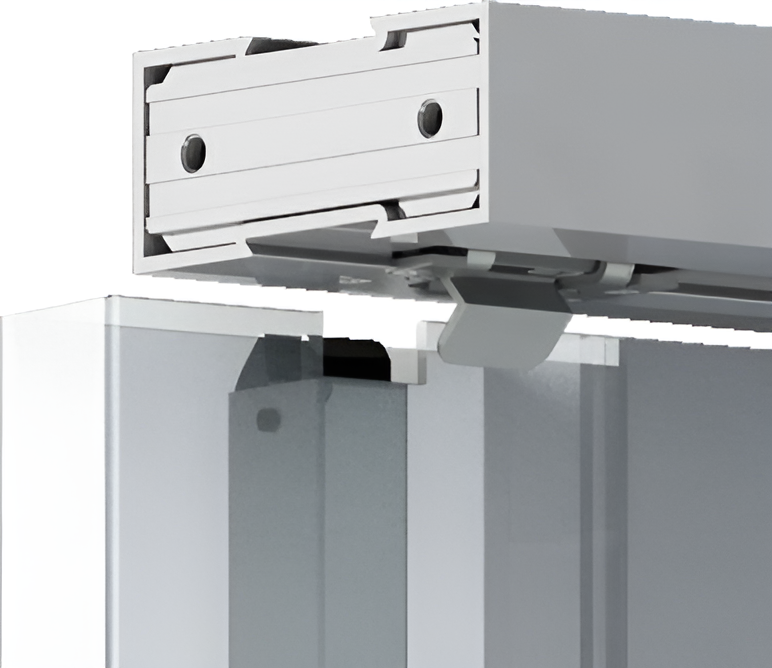

The vertical rod solution utilizes the reliable 3000 series mechanism to offer the smallest solution on the market for vertical rods.

Features:

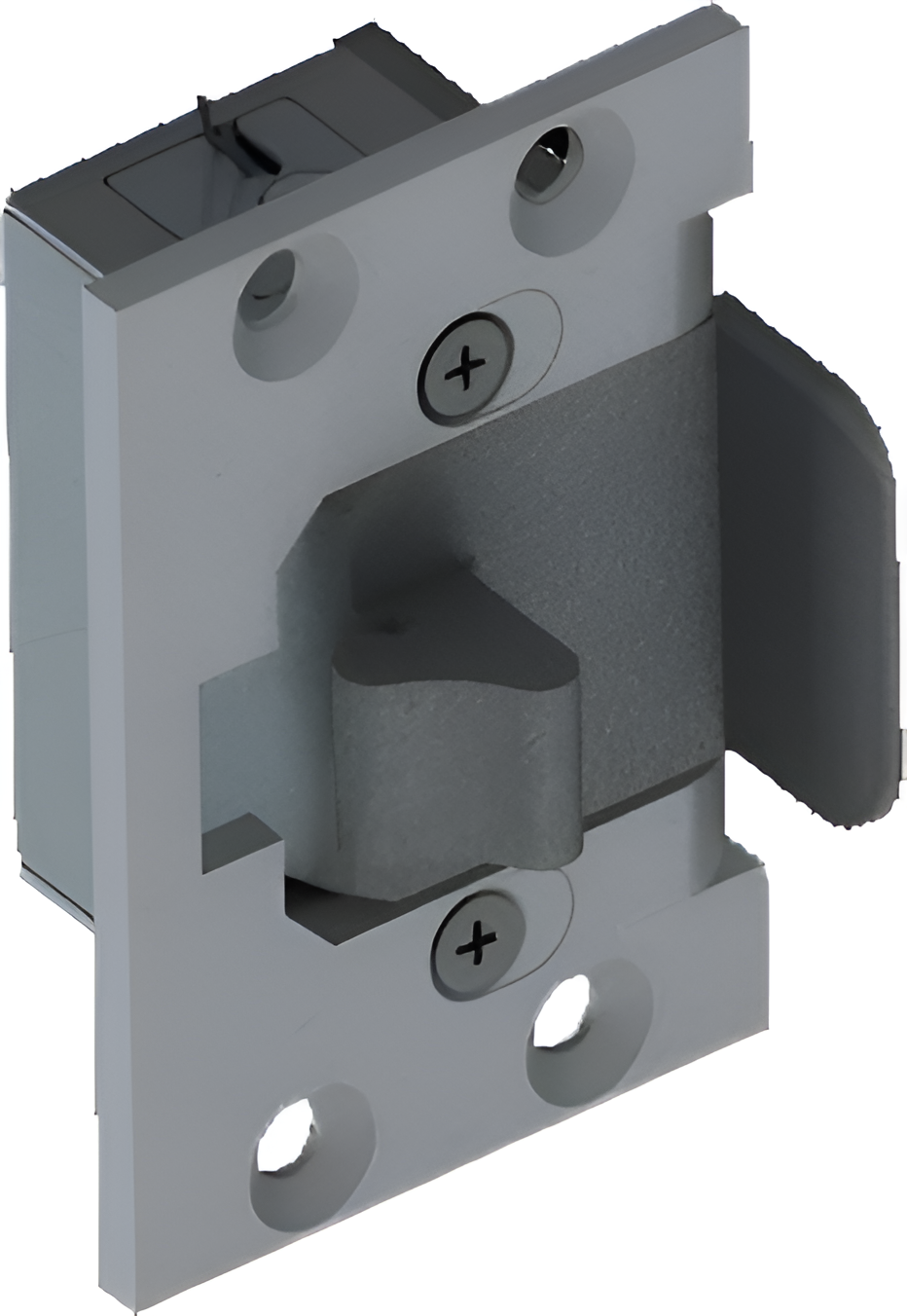

• Two faceplates provided in aluminum and dark bronze finish
• Grade 1 - heavy duty
• 500,000 + life cycles
• Horizontal adjustment
• Solid stainless steel latch and locking mechanism
• LC100 included for surge and kickback protection
• Patented

LC100:

• This model utilizes an external line conditioner (LC100) module to regulate input voltages, 11-28 AC or DC, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC100 provides current and voltage surge protection and kickback protection. LC100 must be used within 15' of the mechanism.

3250SOM Electrical Characteristics:

• Voltage: 12DC
• Current/Amps: 0.743/0.298
• Ohms (Ω): 13.0
• Duty: Into./Cont.
• Sound: Silent
• Wire Color: Red
• Voltage: 12AC
• Current/Amps: 0.715/0.277
• Ohms (Ω): 13.0
• Duty: Into./Cont.
• Sound: Silent
• Wire Color: Red
• Voltage: 24DC
• Current/Amps: 0.397/0.170
• Ohms (Ω): 13.0
• Duty: Into./Cont.
• Sound: Silent
• Wire Color: Red
• Voltage: 24AC
• Current/Amps: 0.378/0.173
• Ohms (Ω): 13.0
• Duty: Into./Cont.
• Sound: Silent
• Wire Color: Red
