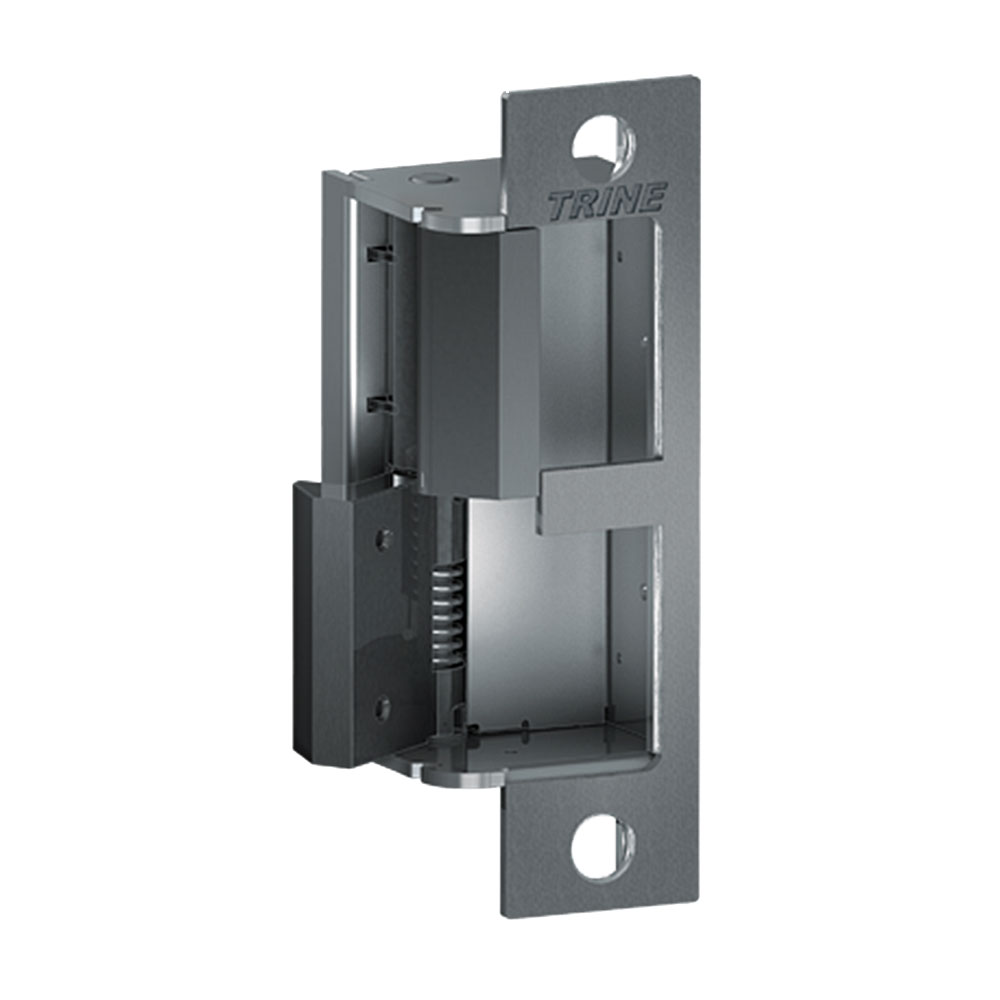

Trine 4100DBDL-32D-LH 4100 Series Electric Strike offers a robust and versatile solution for securing doors equipped with cylindrical and mortise locks. Designed for both commercial and residential applications, this electric strike features a remarkable 3,250 lbs. holding force, providing peace of mind in high-security environments. The unit boasts a Grade 1 rating and is tested to withstand over 1,000,000 cycles, ensuring long-lasting performance. Equipped with four interchangeable faceplates, the 4100 series covers over 90% of cylindrical and mortise lock configurations, making it an adaptable choice for various installations. Its fail-secure function guarantees that the latches remain locked during a power failure, enhancing security further. The satin stainless steel finish not only adds an elegant touch but also ensures durability against wear and tear. Operating on 12/24VDC and drawing low current of 0.240-0.210 A/0.114-0.420 A, the Trine 4100DBDL is an energy-efficient option that meets ANSI A156.5 standards. Additionally, it is fire-rated for three hours, making it suitable for a range of safety-conscious applications. Experience security and reliability with the Trine 4100 Series Electric Strike, a top-tier choice for demanding environments.
4100 Series Electric Strike
The Deadbolt Split Latch Solution, 4 Faceplates Included, 12/24VAC/DC, Low Current Draw, 2,000 lbs. Holding Force Each Latch, Both Latches Fail Secure, Left Hand, Satin Stainless Steel
The 4100 Electric strike for cylindrical and mortise locks. The 4100 strike has 1034 burglury rating with 3250 lbs of holding force. Over 1,000,000 life cylcle testing and 4 faceplates which covers 90% of all cylidrical and mortise locks
Covers 90%+ of Cylindrical & Mortise Lock configurations.
Amp Draw: 0.240-0.210 A/0.114-0.420 A
Ansi: A156.5
Commercial Residential: Commercial
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Fail Secure
Grade: Grade 1
Holding Force: 3250 lbs.
Installation: Commercial
Operating Voltage: 12/24 VDC
Pack Qty: 1
Series: 4100 Series Electric Strikes
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
