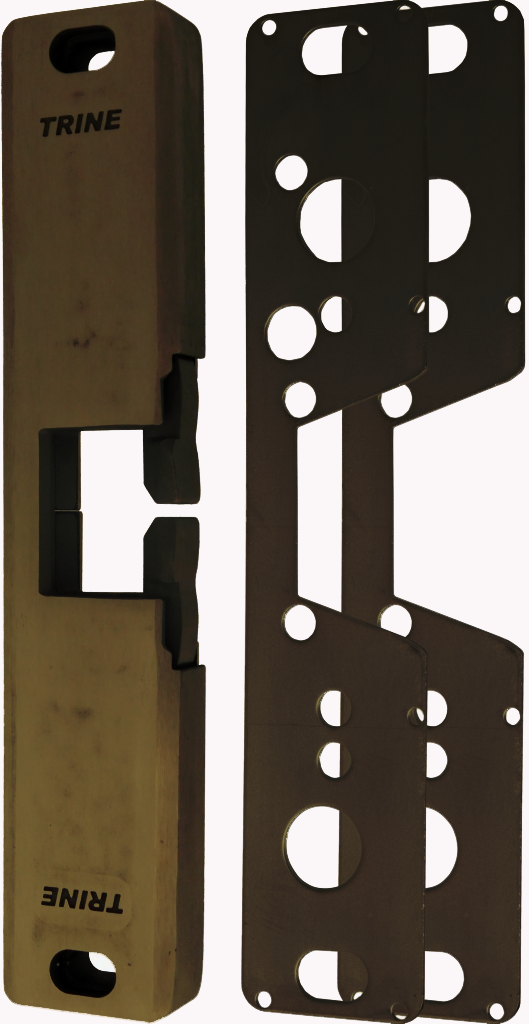

Trine 4800F-US10B Fire Rated Electric Strike for Rim Exits, 12-24VAC/DC, Dark Bronze

Trine Access Technology 4800F-US10B Electric Strike provides reliable security for surface-mounted rim exit devices. This fire-rated electric strike is designed for installations in both wood and metal single door frames, seamlessly accommodating a 3/4" throw or greater, ensuring optimal performance in safety-critical situations. With a robust 3-hour fire rating and a Grade 1 classification, the 4800F offers an impressive holding force of over 3,000 lbs and is engineered for durability, boasting more than 1,500,000 life cycles. Its innovative design features a fully open cavity that allows for versatile installation with the included 1/16" spacers, a benefit not commonly found in competing products. The built-in electronics of the 4800F allow for a flexible voltage input range between 12-24VAC/DC, complete with surge and kickback protection for peace of mind. The fail-safe/fail-secure functionality is field selectable, allowing customization based on security needs. Additionally, the patented 4-pin anchoring system ensures a sturdy installation, while the one-piece locking mechanism minimizes potential failure points. Available in a dark bronze finish, the Trine 4800F is an ideal solution for those seeking reliable access control without compromising on safety or aesthetics.

Electric Strike for Rim Exits, Fire Rated, 12-24VAC/DC, Field Selectable FS or FSE, 3/4in Thick Plus 2 Each 1/16in Spacers, 9in x 1-3/4in, Dark Bronze

3 Hour fire rated electric strike for use with surface mounted rim exit devices with 3/4" (or greater) throw. For use in new or replacement installations in wood or metal single door frames.

Features:

• Fire rated standard, 3/4" strike - no upcharge for fire rating.
• The cavity is completely open -- which means the 4800F allows for a full 3/4" depth and up to a 1" throw with the included two (2) 1/16" spacer plates -- competitor backplates do not allow for this versatility.
• Built-in electronics automatically allow 11 thru 28 AC & DC voltage input -- with surge and kickback protection
• Comes with Trines - patented 4 pin anchoring system.
• Contains a one piece locking mechanism with one solenoid -- less parts mean less problems.
• Fail-safe/fail-secure - field selectable (like all electric strikes, it is not fire rated in Fail safe mode).
• Grade 1 electric strike -- 1,500,000+ life cycles -- 3,000+ lbs. holding force
• No cutting or worrying about voltage means you are always prepared.

4800F Standards:

• Class A, 3 hour single door/frame configuration
• UL10C, fire tests of door assemblies
• UBC 7-2, Uniform building Code
• CAN4 S104, standard method for fire tests of door assemblies NFPA 252
• Issue: 1999/01/01 standard methods of fire tests of door assemblies
• NOTE: WH fire listing is void when using fail safe action.

4800F Electrical Characteristics:

• Voltage: 12DC
• Pull In/Holding Current/Amps: 0.566/0.217
• Duty: Into./Cont.
• Sound: Silent
• Voltage: 24DC
• Pull In/Holding Current/Amps: 0.253/0.099
• Duty: Into./Cont.
• Sound: Silent
• Voltage: 12AC
• Pull In/Holding Current/Amps: 0.509/0.181
• Duty: Into./Cont.
• Sound: Silent
• Voltage: 16AC
• Pull In/Holding Current/Amps: 0.405/0.149
• Duty: Into./Cont.
• Sound: Silent
• Voltage: 24AC
• Pull In/Holding Current/Amps: 0.215/0.087
• Duty: Into./Cont.
• Sound: Silent

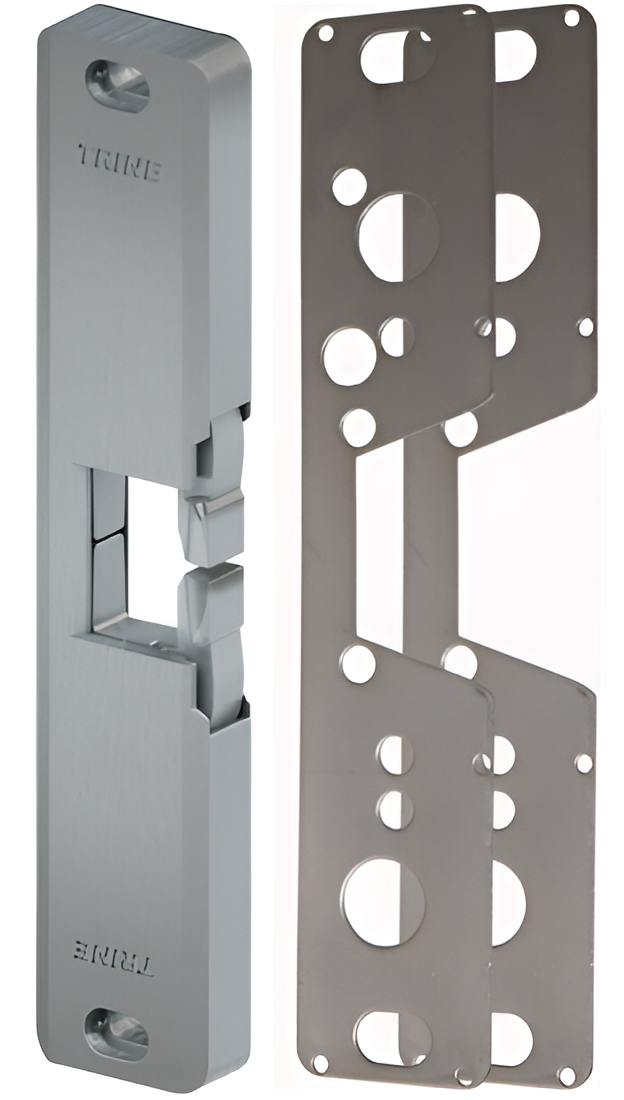

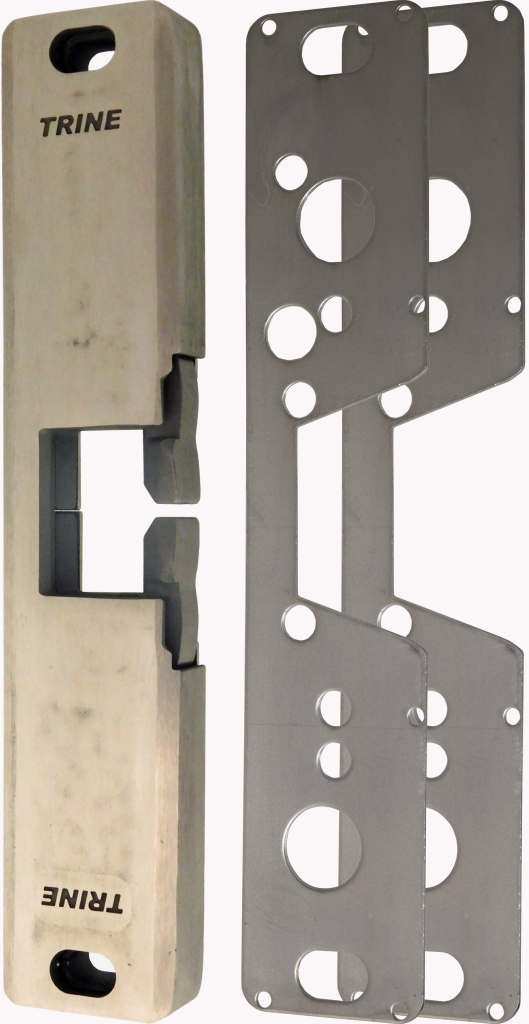

Finishes:

• 32D/630 - Satin stainless steel
• US3/605 - Bright brass
• 10/612 - Satin bronze
• DKBZ - Dark bronze powder coat
• US4/606 - Satin brass
• 32/651 - Stainless steel
• BLK - Black powder coat
