Trine 4800F-US32D Electric Strike for Rim Exits, Fire Rated, 12-24VAC/DC, Satin Stainless

Trine Access Technology 4800F-US32D Electric Strike offers an exceptional solution for securing surface mounted rim exit devices. With a robust 3-hour fire rating and compatibility with 3/4" or greater throw, this electric strike is perfect for both new installations and upgrades in wood or metal single door frames. Designed for versatility, the 4800F features an open cavity that accommodates a full 3/4" depth and up to a 1" throw using the included 1/16" spacers, surpassing competitors' backplates. The built-in electronics support a wide voltage range from 12 to 28 AC/DC, complete with surge and kickback protection, ensuring reliable operation. This Grade 1 electric strike boasts a solid construction with a one-piece locking mechanism and patented 4-pin anchoring system, providing over 1,500,000 life cycles and a holding force exceeding 3,000 lbs. The field-selectable fail-safe or fail-secure option allows for customization based on your security needs, although it’s important to note that the fire rating is void in fail-safe mode. Finished in satin stainless steel, the 4800F also meets various industry standards, including UL10C and UBC 7-2, making it a trusted choice for professionals seeking quality and reliability in access control.

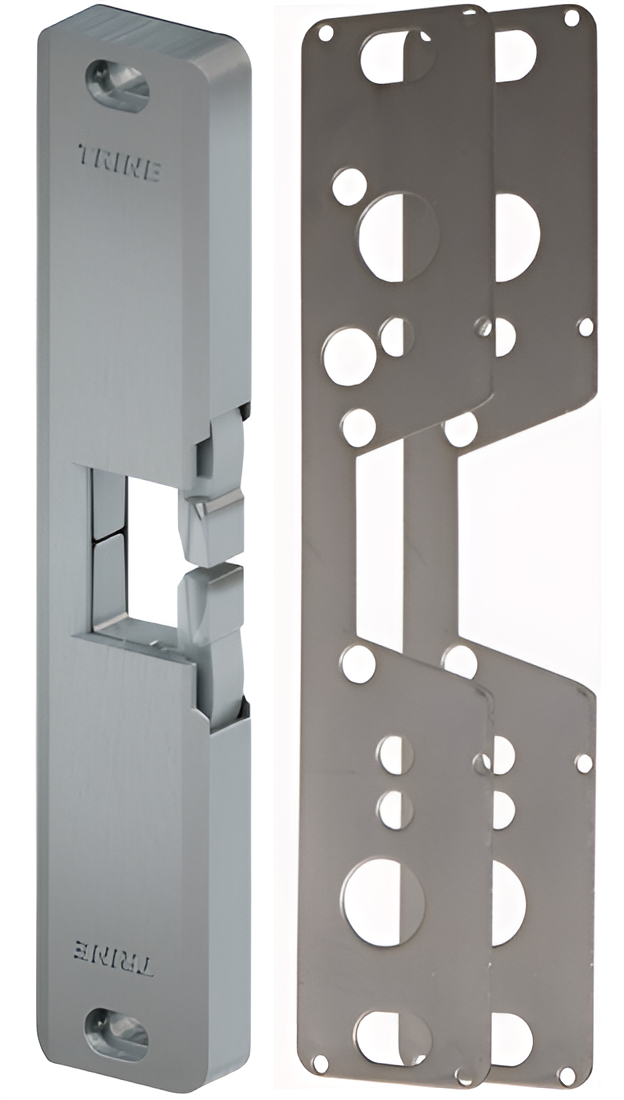

Electric Strike for Rim Exits, Fire Rated, 12-24VAC/DC, Field Selectable FS or FSE, 3/4in Thick Plus 2 Each 1/16in Spacers, 9in x 1-3/4in, Satin Stainless

3 Hour fire rated electric strike for use with surface mounted rim exit devices with 3/4" (or greater) throw. For use in new or replacement installations in wood or metal single door frames.

Features:

• Fire rated standard, 3/4" strike - no upcharge for fire rating.
• The cavity is completely open -- which means the 4800F allows for a full 3/4" depth and up to a 1" throw with the included two (2) 1/16" spacer plates -- competitor backplates do not allow for this versatility.
• Built-in electronics automatically allow 11 thru 28 AC & DC voltage input -- with surge and kickback protection
• Comes with Trines - patented 4 pin anchoring system.
• Contains a one piece locking mechanism with one solenoid -- less parts mean less problems.
• Fail-safe/fail-secure - field selectable (like all electric strikes, it is not fire rated in Fail safe mode).
• Grade 1 electric strike -- 1,500,000+ life cycles -- 3,000+ lbs. holding force
• No cutting or worrying about voltage means you are always prepared.

4800F Standards:

• Class A, 3 hour single door/frame configuration
• UL10C, fire tests of door assemblies
• UBC 7-2, Uniform building Code
• CAN4 S104, standard method for fire tests of door assemblies NFPA 252
• Issue: 1999/01/01 standard methods of fire tests of door assemblies
• NOTE: WH fire listing is void when using fail safe action.

4800F Electrical Characteristics:

• Voltage: 12DC
• Pull In/Holding Current/Amps: 0.566/0.217
• Duty: Into./Cont.
• Sound: Silent
• Voltage: 24DC
• Pull In/Holding Current/Amps: 0.253/0.099
• Duty: Into./Cont.
• Sound: Silent
• Voltage: 12AC
• Pull In/Holding Current/Amps: 0.509/0.181
• Duty: Into./Cont.
• Sound: Silent
• Voltage: 16AC
• Pull In/Holding Current/Amps: 0.405/0.149
• Duty: Into./Cont.
• Sound: Silent
• Voltage: 24AC
• Pull In/Holding Current/Amps: 0.215/0.087
• Duty: Into./Cont.
• Sound: Silent

Finishes:

• 32D/630 - Satin stainless steel
• US3/605 - Bright brass
• 10/612 - Satin bronze
• DKBZ - Dark bronze powder coat
• US4/606 - Satin brass
• 32/651 - Stainless steel
• BLK - Black powder coat
