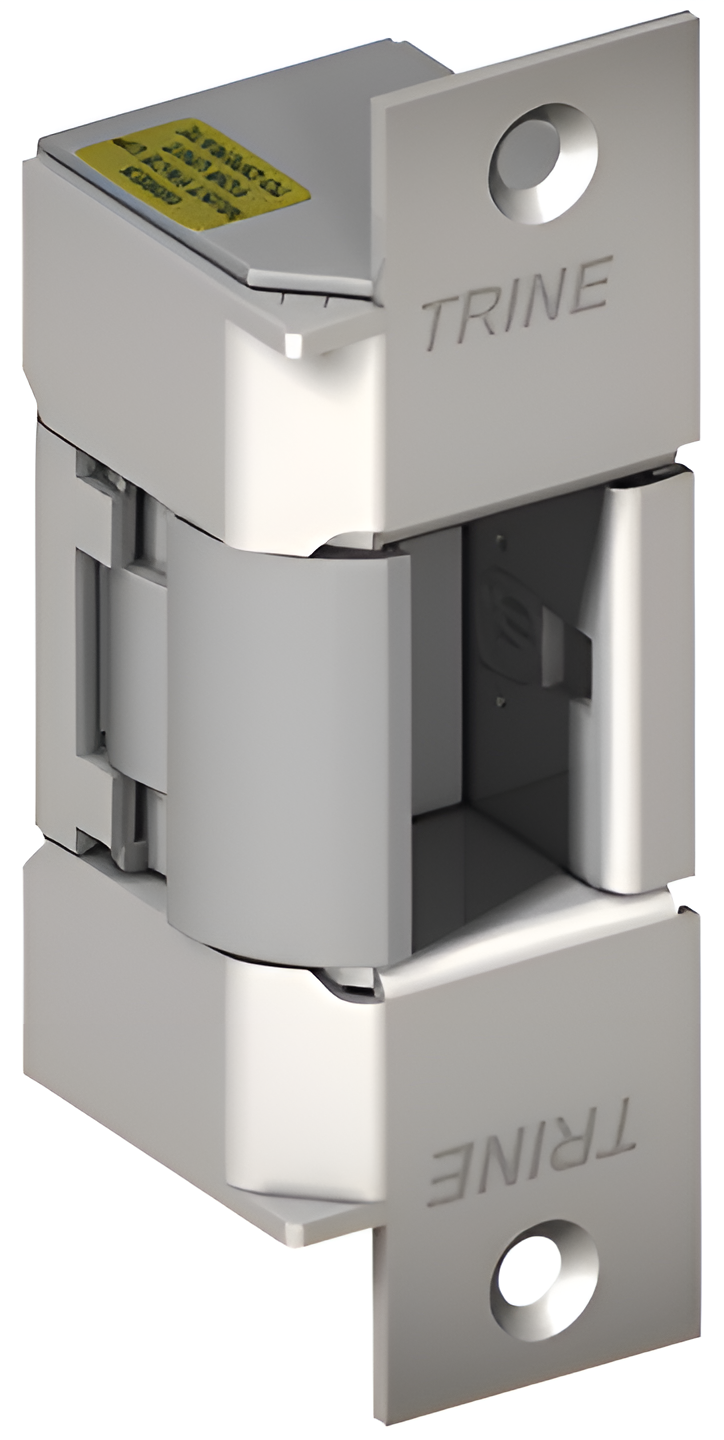

Trine EN400-12DC-32D Electric Strike, Fire Rated, 12VDC, Satin Stainless Steel, Right Hand Reversible

Trine Access Technology EN400-12DC-32D Electric Strike combines advanced engineering with robust design to enhance your security system. This fire-rated strike operates on 12V DC and is field selectable for fail secure or fail safe configurations, making it adaptable to a variety of applications. Its 4-7/8" x 1-1/4" satin stainless steel faceplate not only provides a sleek finish but also ensures long-lasting durability. Designed for both indoor and outdoor use, the EN400-12DC-32D is UL® listed for use in high humidity environments, such as marinas and pools, where traditional strikes may falter. With a throw of up to 7/8", it is compatible with cylindrical locksets, mortise locks without deadbolts, and mortise exit devices. Its superior strength is evident in its UL® testing, withstanding over 2,000 lbs of force, and durability with over 1,000,000 life cycles. Field reversible for both left and right handing, this Grade 1 electric strike simplifies installation and maintenance. Its centered cavity accommodates various door types, making it a versatile choice for new or replacement installations in wood or metal jambs. Experience reliability and performance with the Trine EN400-12DC-32D Electric Strike, your go-to solution for access control needs.

Electric Strike, Fire Rated, 12VDC, Field Selectable FS or FSE, 4-7/8in x 1-1/4in Faceplate, up to 7/8in Throw, Right Hand Field Reversible, Satin Stainless Steel, Indoor/Outdoor, Centered Cavity

For new or replacement installations in wood or metal jambs. Use with cylindrical locksets, mortise locks without dead bolts, and mortise exit devices with up to 7/8" throw.

Features:

• Superior strength – 2,000+ lbs UL® tested.
• Superior life – durability of 1,000,000+ life cycles
• Superior Application - outdoor UL rating allows the strike to be used anywhere - especially good for gates.
• Fail secure/fail safe field reversible on DC units.
• Grade 1 strike – contains a one piece locking mechanism with one solenoid – less parts mean less problems.
• Left and right handing is field reversible.
• Great for all high humidity environments like at marinas and pools. The go anywhere strike!

Specifications:

• UL® Listed 10C - fire-rated - class A, 3-hour, single swing door
• UL® Listed 1034 - Indoor/outdoor burglary resistant
• BHMA 156.31 2001, grade 1
• NYC MEA 79-01-E

EN Series Electrical Characteristics:

• Volts: 12AC
• Current: 0.700
• Ohms (Ω): 4.5
• Duty: Into.
• Sound: Buzz
• Wire: 1-Blue, 1-Orange/White
• Volts: 24AC
• Current: 0.370
• Ohms (Ω): 18.0
• Duty: Into.
• Sound: Buzz
• Wire: 1-Blue, 1-Black/White
• Volts: 12DC
• Current: 0.280
• Ohms (Ω): 43.0
• Duty: Into./Cont.
• Sound: Silent
• Wire: 2-Orange/White
• Volts: 24DC
• Current: 0.150
• Ohms (Ω): 164.0
• Duty: Into./Cont.
• Sound: Silent
• Wire: 2-Black/White

Finishes:

• 32D/630 - Satin stainless steel
• 10B/613 - Dark bronze
• US3/605 - Bright brass
• US4/606 - Satin brass
• 10/612 - Satin bronze
• 32/629 - Stainless steel
• BLK - Black powder coat
