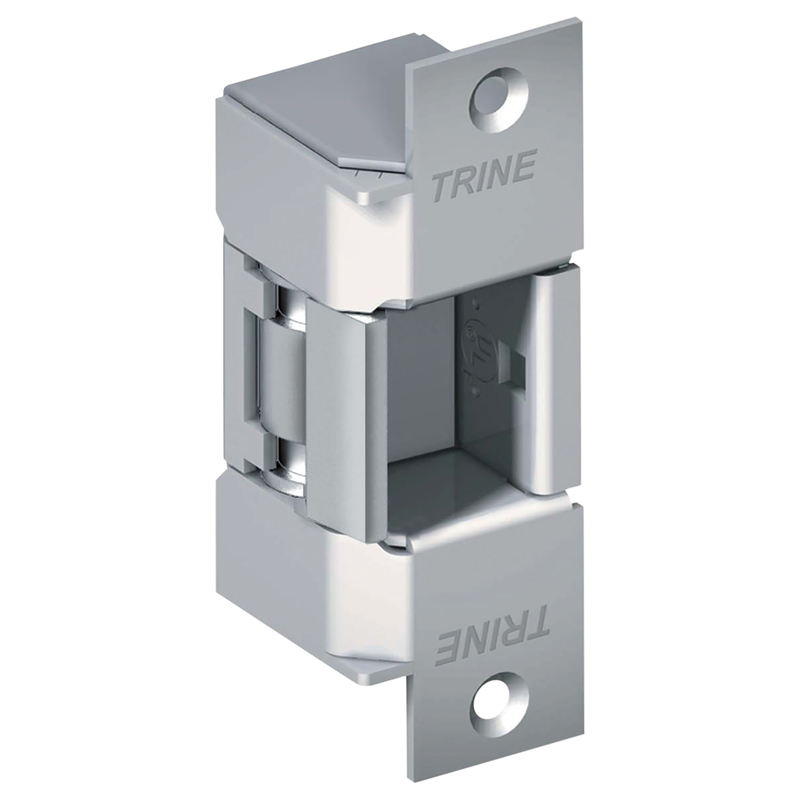

Trine EN400-12DC-LH-US32D 12VDC Left-Hand Electric Strike 32D

Trine EN400-12DC-LH-US32D Electric Strike 12VDC LH 32D is a robust solution for both indoor and outdoor security needs. Designed with a fail secure function, this electric strike boasts a remarkable 2,000 lbs holding force and delivers exceptional durability with over 1,000,000 life cycles. Ideal for commercial environments, it is UL listed and features a 3-hour Class A fire rating, ensuring safety and reliability under pressure. Made from high-quality satin stainless steel, the EN Series strike is not only aesthetically pleasing but also built to withstand the elements, making it suitable for any installation scenario. The strike's compact design, measuring 4-7/8" x 1-1/4", allows for a centered configuration that fits seamlessly into various door applications. With an operational voltage of 12 VDC and an amp draw of only 0.28, this electric strike is energy efficient without compromising on performance. It is also burglar rated, providing peace of mind for building professionals and homeowners alike. Trine's EN400-12DC-LH-US32D is an excellent choice for those seeking versatility, durability, and security in one reliable package.

Electric Strike 12VDC LH 32D

EN Series Electric Strike, 12VDC, Fail Secure, Left-Handed, Satin Stainless Steel

The EN Series electric strike is an Outdoor and indoor strike. The strike has a 2000lbs holding force with the durability of 1,000,000 life cycles. Fail safe and fail secure on DC units. The 4200 electric strike has a 3hr Class A fire rating.

En Series strikes contain only 8 total parts.

• Durability - BHMA grade 1 strike , 2,000+ lbs UL Tested, 1,000,000+ cycles
• Versitility
•  EN Series is UL® Outdoor rated UL®Listed 10C Fire Rated to be used everywhere.

Resources

• 2023 Trine Price Book (effective 4.28.2023)
• EN Series Electric Strikes Cut Sheet
