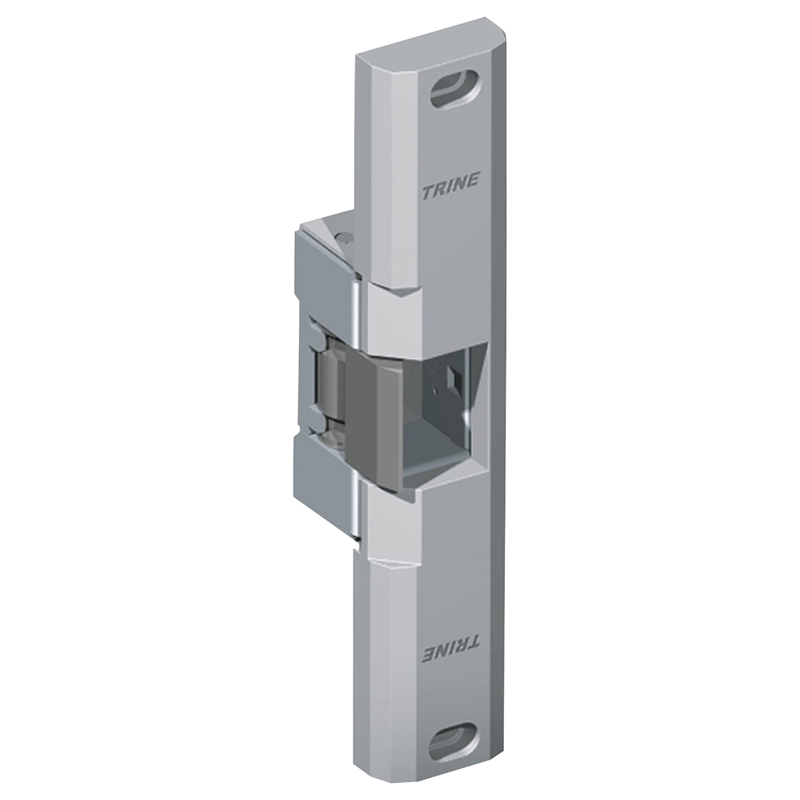

Trine EN800-12DC-LH-US32D Electric Rim Panic Strike

Trine EN800-12DC-LH-US32D Rim Panic Electric Strike delivers exceptional security and durability for both commercial and residential applications. This electric strike operates on 12VDC and features a fail secure function, ensuring robust access control. Crafted from high-quality satin stainless steel, it boasts a 2000 lbs holding force and is tested for over 1,000,000 life cycles, making it a reliable choice for various environments. The EN Series electric strike is UL listed for outdoor use and is rated for a 3-hour Class A fire safety, providing peace of mind in emergency situations. With its compact design, measuring 9" x 1-3/4", it fits seamlessly into standard door frames. Installation is straightforward, and its centered configuration simplifies the setup process. Designed with only eight parts, this strike offers remarkable versatility and ease of maintenance. The matte silver finish not only enhances its aesthetic appeal but also contributes to its durability. Backed by a one-year limited warranty, the Trine EN800-12DC-LH-US32D is the ideal choice for building professionals and homeowners seeking a reliable, high-performance electric strike solution.

Rim Panic Electric Strike

EN Series Electric Strike, 12VDC, Fail Secure, Left-Handed, Satin Stainless Steel

The EN Series electric strike is an Outdoor and indoor strike. The strike has a 2000lbs holding force with the durability of 1,000,000 life cycles. Fail safe and fail secure on DC units. The 4200 electric strike has a 3hr Class A fire rating.

En Series strikes contain only 8 total parts.

• Durability - BHMA grade 1 strike , 2,000+ lbs UL Tested, 1,000,000+ cycles
• Versitility
•  EN Series is UL® Outdoor rated UL®Listed 10C Fire Rated to be used everywhere.

Resources

• 2023 Trine Price Book (effective 4.28.2023)
• EN Series Electric Strikes Cut Sheet
