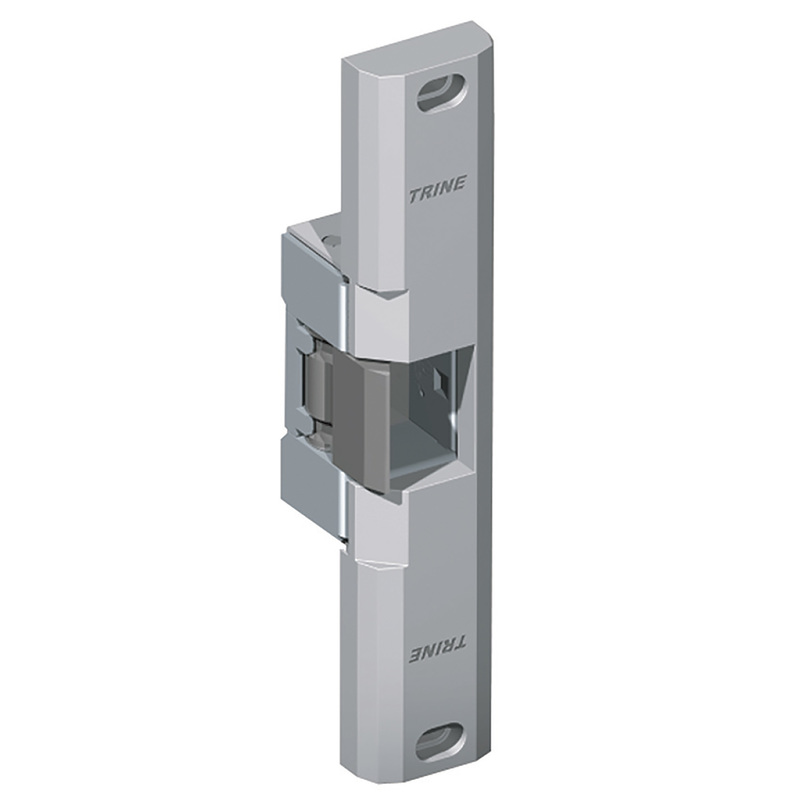

Trine EN800-12DC-RH-US32D Electric Rim Panic Strike

Trine EN800-12DC-RH-US32D Rim Panic Electric Strike is designed for both indoor and outdoor applications, providing security and peace of mind for commercial properties. With a robust 2000 lbs holding force and an impressive durability rating of 1,000,000 life cycles, this electric strike ensures reliable performance even in high-traffic environments. This model features fail secure functionality, making it a safe choice for emergency exit systems, while its 3-hour Class A fire rating enhances its reliability during critical situations. Constructed from stainless steel with a sleek satin finish (630/US32D), it not only offers durability but also complements various architectural styles. The EN800-12DC-RH is UL listed and rated for outdoor use, making it versatile enough for any location. Its centered configuration allows for straightforward installation, while the compact faceplate size of 9" x 1-3/4" fits seamlessly into existing door frames. Additionally, this electric strike operates on 12V DC power with a low amperage draw of just 0.28 amps. With a limited one-year warranty, the Trine EN800-12DC-RH-US32D Rim Panic Electric Strike is a reliable choice for professionals seeking a blend of security, durability, and ease of installation.

Rim Panic Electric Strike

EN Series Electric Strike, 12VDC, Fail Secure, Right-Handed, Satin Stainless Steel

The EN Series electric strike is an Outdoor and indoor strike. The strike has a 2000lbs holding force with the durability of 1,000,000 life cycles. Fail safe and fail secure on DC units. The 4200 electric strike has a 3hr Class A fire rating.

En Series strikes contain only 8 total parts.

• Durability - BHMA grade 1 strike , 2,000+ lbs UL Tested, 1,000,000+ cycles
• Versitility
•  EN Series is UL® Outdoor rated UL®Listed 10C Fire Rated to be used everywhere.

Resources

• 2023 Trine Price Book (effective 4.28.2023)
• EN Series Electric Strikes Cut Sheet
