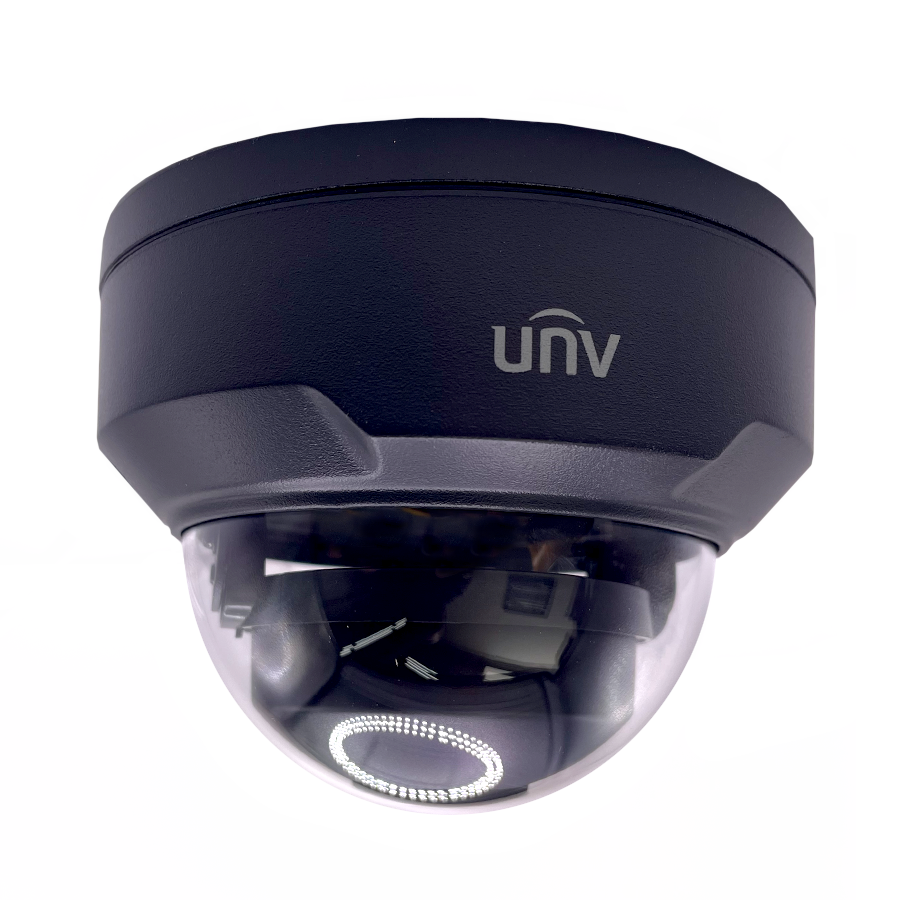

UniView IPC324SB-DF28K-I0-BK 4MP HD LightHunter IR Fixed Dome Network Camera, Black

UniView Technology IPC324SB-DF28K-I0-BK 4MP HD LightHunter IR Fixed Dome Network Camera in black delivers exceptional security solutions with its advanced imaging capabilities. Featuring a 5MP 1/2.8" CMOS sensor, this camera captures high-resolution images at 2592 x 1944 pixels, ensuring clarity in every frame at up to 30fps. The cutting-edge 120dB true Wide Dynamic Range (WDR) technology allows for detailed visuals in challenging lighting conditions, making it ideal for varied environments. Equipped with Smart IR technology, the IPC324SB can illuminate areas up to 10 meters (33 feet) away, ensuring comprehensive night vision capabilities. Built-in dual microphones enhance audio detection, allowing for clear sound capture over longer distances. With an IP66 rating, this camera is weatherproof, while its IK10 vandal resistance offers additional durability against impacts. For ease of installation, it supports Power over Ethernet (PoE), minimizing cable clutter. The device also accommodates a micro SD card of up to 256GB for local storage, alongside advanced networking protocols including ONVIF compatibility, ensuring seamless integration into existing security systems. With its robust features and reliable performance, the UniView IPC324SB-DF28K-I0-BK is a top choice for enhancing security in both residential and professional settings.

4MP HD LightHunter IR Fixed Dome Network Camera, Black

Features:

• High quality image with 5MP, 1/2.8" CMOS sensor.
• 5MP (2592 x 1944): @ 30/25fps.
• Ultra 265, H.265, H.264, MJPEG.
• 120dB true WDR technology enables clear image in strong light scene.
• Built-in 2 mic, Supports the detection of sounds over longer distances.
• Alarm:1 in/1 out, audio: 1 in/1 out.
• Smart IR, up to 10m (33ft) IR distance.
• Supports 256 G micro SD card.
• IK10 vandal resistant.
• IP66 protection.
• Support PoE power supply.

Specifications:

• General:
• Power: DC12V ± 25%, PoE (IEEE 802.3af) power consumption: Max. 8.5W.
• Power Interface: Ø 5.5mm coaxial power plug.
• Dimensions (Ø x H): Ø 4.9"(125mm) x 1.7"(43.7mm).
• Weight: 0.36kg (0.79lb).
• Material: Metal + plastic.
• Working Environment: - 30°C ~ 60°C (- 22°F ~ 140°F), Humidity: ≤ 95% RH (non-condensing).
• Surge protection: 4KV.
• Reset Button: Supported.
• Ingression protection: IP66.
• Vandal resistant: IK10.
• Certifications:
• EMC: FCC CFR 47 Part 15; EN 55032:2015; EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3-2013.
• Safety: IEC 62368-1; EN 62368-1; UL 62368-1.
• Environment: CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (regulation (EC) No 1907/2006).
• Interface:
• Audio I/O: Input: impedance 35 kΩ; amplitude 2 V [p-p]; output: impedance 600 Ω; amplitude 2 V [p-p].
• Alarm I/O: 1/1.
• RS485: N/A.
• Built-in Mic: Supported 2.
• Built-in Speaker: N/A.
• WIFI: N/A.
• Network: (1) RJ45 10M/100M Base-TX auto-adaptive ethernet.
• Video Output: N/A.
• Live View Display:
• Mount Type: Support table, wall, and ceiling.
• Decoding Mode: Support software decoding.
• Display Mode: 11 display modes in total.
• Ceiling mount: fisheye view, 360°panoramic + 1PTZ, 180°panoramic, fisheye + 3PTZ, fisheye + 4PTZ, 360°panoramic + 6PTZ, fisheye + 8PTZ.
• Wall mount: Fisheye view, panoramic, panoramic + 3PTZ, panoramic + 4PTZ, panoramic + 8PTZ.
• Table mount: Fisheye view, 360°panoramic + 1PTZ, 180°panoramic, fisheye + 3PTZ, fisheye + 4PTZ, 360°panoramic + 6PTZ, fisheye + 8PTZ.
• Network:
• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH.
• Compatible Integration: ONVIF (profile S, profile G, profile T), API,SDK.
• User/Host: Up to 32 users. 2 user levels: administrator and common user.
• Security: Password protection, strong password, HTTPS encryption, export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF.
• Client: EZStation; EZView; EZLive.
• Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below.; plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
• Storage:
• Edge Storage: Micro SD, up to 256GB.
• Network Storage: ANR, NAS(NFS).
• Audio:
• Audio Compression: G.711.
• Audio Bitrate: 64 Kbps.
• Two-way audio: Supported.
• Suppression: Supported.
• Sampling Rate: 8 KHZ.
• Image:
• White Balance: Auto/outdoor/fine tune/sodium lamp/locked/auto2.
• Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser.
• Digital noise reduction: 2D/3D DNR.
• Smart IR: Support.
• Flip: Normal/flip vertical/ flip horizontal/180°
• Dewarping: N/A.
• HLC: N/A.
• BLC: Support.
• Defog: Digital defog.
• Video:
• Compression: Ultra 265, H.265, H.264, MJPEG.
• H.264 code profile: Baseline profile, main profile, high profile.
• Frame Rate:
• Main Stream: 5MP (2592 x 1944): Max 30fps.
• Sub Stream: 1080P (1920 x 1080): Max 30fps; 720P (1280 x 720), Max 30fps.
• Third Stream: D1 (720 x 576), Max 30fps; (640 x 360),Max 30fps; 2CIF(704 x 288), Max 30fps; CIF(352 x 288), Max 30fps.
• Video Bit Rate: 128 Kbps ~ 16 Mbps.
• U-code: Support.
• ROI: Up to 8 areas.
• Video Stream: Triple streams.
• OSD: Up to 8 OSDs.
• Privacy Mask: Up to 4 areas.
• Illuminator:
• IR Range: UP to 10m (33ft).
• wavelength: 850nm.
• IR On/Off Control: Auto/manual.
• Lens:
• Lens type: 1.4mm @ F2.0.
• Angle of View: 360°
• Camera:
• Image sensor: 1/2.8", progressive scan, 5.0 megapixel, CMOS.
• Minimum Illumination: Colour: 0.01 Lux (F2.0, AGC ON) 0 Lux with IR.
• Day/Night: IR-cut filter for day & night function.
• Shutter: Auto/manual, shutter time: 1 ~ 1/100000 s.
• WDR: 120dB.
• S/N: < 55dB.
