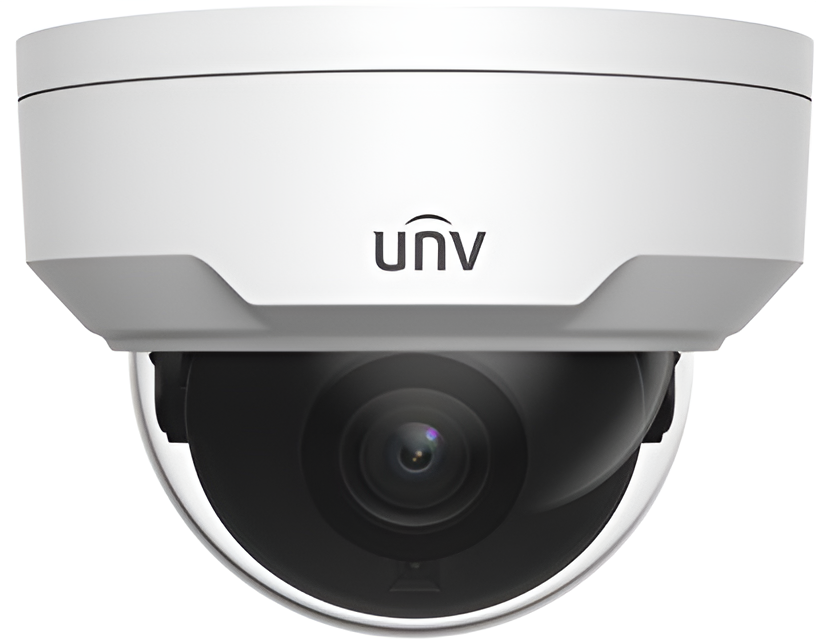

UniView IPC324SR3-DSF28K-G-BK 4MP HD Vandal-Resistant 2.8mm IR Fixed Dome Network Camera, Black

UniView Technology IPC324SR3-DSF28K-G-BK is a state-of-the-art 4MP HD vandal-resistant network camera designed to deliver exceptional surveillance performance in a variety of environments. Equipped with LightHunter technology, this camera excels in ultra-low light conditions, providing vivid color and clarity thanks to its F1.2 large iris and high-sensitivity BSI sensor. This model captures high-quality images at resolutions up to 2688 x 1520 pixels, ensuring detailed monitoring with frame rates of up to 30fps. The advanced 120dB true WDR technology allows for clear visuals even in challenging lighting scenarios. Additionally, the camera features built-in smart IR capabilities, providing an impressive IR range of up to 40 meters (131 feet) for night-time surveillance. The IPC324SR3-DSF28K-G-BK is built to withstand the elements with an IP67 rating, making it suitable for outdoor use. It supports Power over Ethernet (PoE), simplifying installation and reducing cable clutter. With a metal construction, it is designed for durability, while its compact dimensions (155.9mm x 63.1mm x 62.7mm) make it easy to integrate into various settings. Ideal for schools, malls, and parking lots, this camera is a reliable choice for enhancing security without compromising image quality.

4MP HD Vandal-Resistant 2.8mm IR Fixed Dome Network Camera, Black

The LightHunter technology is an innovative technology that delivers vivid color, appropriate brightness, and extremely clear images in ultra-low light. LightHunter technology significantly improves the image brightness with F1.2 large iris design & BSI sensor. With the specially designed large size sensors, the IPCs have higher photosensitivity, and feature high SNR. LightHunter technology meets the surveillance requirements of users for high-quality image effects around the clock. The UNV LightHunter cameras can be used in schools, plazas, parking lots, shopping malls, airports, hotels, hospitals or any low-illumination scenes that users need.

Features:

• High quality image with 4MP, 1/3" CMOS sensor.
• 4MP (2688 x 1520) @ 30/25fps; 4MP (2560 x 1440) @ 30/25fps; 3MP (2304 x 1296) @ 30/25fps; 2MP (1920 x 1080) @ 30/25fps.
• Ultra 265, H.265, H.264, MJPEG.
• LightHunter technology ensures ultra-high image quality in low illumination environment.
• 120dB true WDR technology enables clear image in strong light scene.
• Support 9:16 corridor mode.
• Built-in mic.
• Smart IR, up to 40m (131ft) IR distance.
• Supports 256 G micro SD card.
• IP67 protection.
• Support PoE power supply.

Specifications:

• General:
• Power: DC 12V ± 25%, PoE (IEEE 802.3af) power consumption: Max 4.0W.
• Dimensions (L x W x H): 6.1"(155.9mm) x 2.5"(63.1mm) x 2.5"(62.7mm).
• Net Weight: 0.42kg (0.93lb).
• Material: Metal.
• Working Environment: - 30°C ~ 60°C (- 22°F ~ 140°F), humidity: ≤ 95% RH (non-condensing).
• Surge Protection: 2KV.
• Ingress Protection: IP67.
• Reset Button: Supported.
• Certifications:
• CE: EN 60950-1.
• UL: UL60950-1.
• FCC: FCC part 15.
• Interface:
• Network: (1) RJ45 10M/100M Base-TX ethernet.
• Built-in Mic: Supported.
• Network:
• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS.
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API.
• Client: EZStation; EZView; EZLive.
• Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below; plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+.
• Storage:
• Edge Storage: Micro SD, up to 256GB.
• Network Storage: ANR, NAS(NFS).
• Audio:
• Audio Compression: G.711.
• Suppression: Supported.
• Sampling Rate: 8KHZ.
• Image:
• White Balance: Auto/outdoor/fine tune/sodium lamp/locked/auto2.
• Digital Noise Reduction: 2D/3D DNR.
• Smart IR: Support.
• Flip: Normal/vertical/horizontal/180°/90° clockwise/90° anti-clockwise.
• Dewarping: N/A.
• HLC: Supported.
• BLC: Supported.
• Video:
• Video Compression: Ultra 265, H.265, H.264, MJPEG.
• H.264 code profile: Baseline profile, main profile, high profile.
• Frame Rate:
• Main Stream: 4MP (2688 x 1520), Max 30fps;4MP (2560 x 1440), Max 30fps; 3MP (2304 x 1296), Max 30fps; 1080P (1920 x 1080), Max 30fps.
• Sub Stream: 720P (1280 x 720), Max 30fps; D1 (720 x 576), Max 30fps; (640 x 360),Max 30fps;2CIF(704 x 288), Max 30fps; CIF(352 x 288), Max 30fps.
• Third Stream: D1 (720 x576), Max 30fps; 640 x 360,Max 30fps; 2CIF(704 x 288), Max 30fps; CIF(352 x 288), Max 30fps.
• Video Bit Rate: 128 Kbps ~ 16 Mbps.
• 9:16 Corridor Mode: Supported.
• OSD: Up to 8 OSDs.
• Privacy Mask: Up to 4 areas.
• ROI: Up to 8 areas.
• Motion Detection: Up to 4 areas.
• Camera:
• Sensor: 1/3", 4.0 megapixel, progressive scan, CMOS.
• Lens: 2.8mm @ F1.6.
• Angle of View : (H) 101.1° (V) 55.3° (O) 111.1°.
• Adjustment Angle: Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°.
• Shutter: Auto/Manual, 1 ~ 1/100000s.
• Minimum Illumination: Color: 0.0 03 Lux (F 1.6 , AGC) 0Lux with IR on.
• Day/Night: IR-cut filter with auto switch (ICR).
• S/N: > 56dB.
• IR Range: Up to 40m (131 ft) IR range.
• Wavelength: 850nm.
• IR On/Off Control: Auto/manual.
• Defog: Digital defog.
• WDR: 120dB.

Finishes:

• N/A - White
• BK - Black
