Von Duprin 2227EO-F 3 689 Grade 1 SVR Exit Bar SP28

Von Duprin 2227EO-F 3 689 Grade 1 SVR Exit Bar SP28 is a robust solution for ensuring safe and efficient egress in commercial environments. This Grade 1 Surface Vertical Rod Exit Bar is designed to fit 84" doors and is fire-rated, providing an essential safety feature. With a sleek aluminum painted finish, the device is both durable and aesthetically pleasing. This exit device is versatile, fitting both single and double doors, and covers standard hollow metal doors with 86 or 161 cutouts. Its non-handed design allows for easy installation on door stiles as narrow as 3 5/8" (92 mm). The 2227EO-F is UL listed for panic exit hardware, ensuring compliance with safety standards. The push bar’s projection is thoughtfully designed, remaining only 3 3/4" when neutral and 3" when depressed, facilitating unobstructed movement. The deadlocking anti-friction latch bolt offers a secure closure, while the optional features, including various monitor switches and alarm kits, enhance its functionality. With a limited 3-year warranty and ANSI A156.3 – 2008 Grade 1 certification, the Von Duprin 2227EO-F 3 689 is a reliable choice for any commercial setting, delivering both safety and peace of mind.

Grade 1 SVR Exit Bar SP28

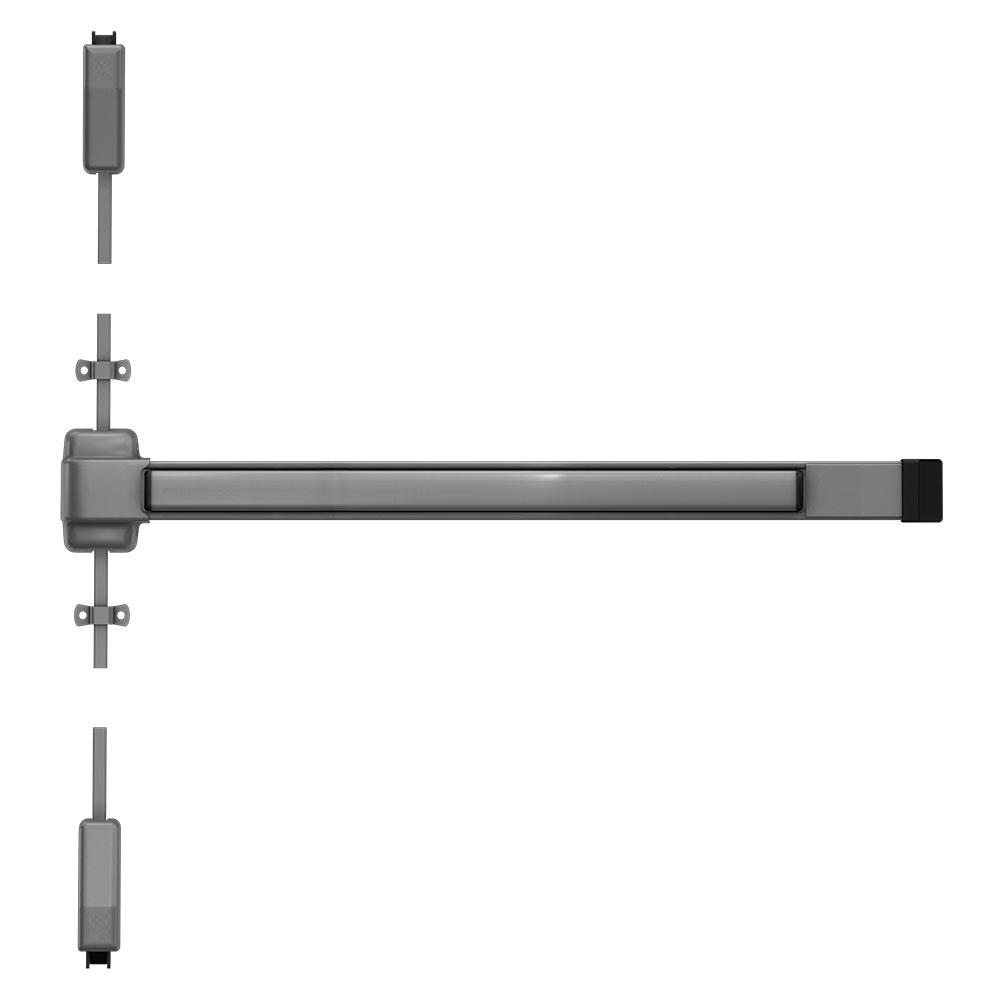

Grade 1 Surface Vertical Rod Exit Bar, 36" Fire-Rated Device, Fits 84" Door, Exit Only, Less Dogging, Aluminum Painted Finish, Field Reversible

2227 Surface mounted vertical rod exit device for all types of single and double doors. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8" (92 mm). The device is non-handed.

UL listed for Panic Exit Hardware.

 Devices are ANSI A156.3 – 2008 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8" (92 mm). The device is non-handed.

• Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device lengths: 3' (914 mm), 4' (1219 mm)
• Door height: 7' (2134 mm) standard door height extension rods available for door heights up to 10' (3048mm) 12" (205 mm), door height 36" (914 mm), door height
• Device centerline from finished floor: 39 13/16" (1011 mm)
• Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
• Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
• Projection push bar: Push bar neutral - 3 3/4" (95 mm) Push bar depressed - 3" (76 mm)
• Door undercut: 1 /4" (7 mm) from finished floor recommended , 3 /4" (19mm) maximum or 1 /8" (3mm) from threshold
• Latch bolt: Deadlocking anti-friction top and bottom bolt, 5 /8" (16 mm) throw
• Fasteners & sex bolts (SNB): Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors. Optional SNB available for device.
• Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
• Mechanical options: PL pullman latch GBK glass bead kit RG rod guards LG latch guards
• Dogging feature: Hex key dogging standard
• Dogging options: LD less dogging
• Strikes: 299 – Dull black Bottom 248L-4 and 304L – unfinished

Resources

• 2227 & 2227-F K, L, & TP Series Wood Door Template
• 2227 Series Vertical Rod Exit Device Service Manual
• 2227 Surface Vertical Rod Exit Device Service Manual
• EL for Exit Devices Data Sheet
• Von Duprin 22 ALK Alarm Kit Installation Instructions
• Von Duprin 2227 Surface Vertical Rod Device Installation Instructions
• Von Duprin Finishes Chart
