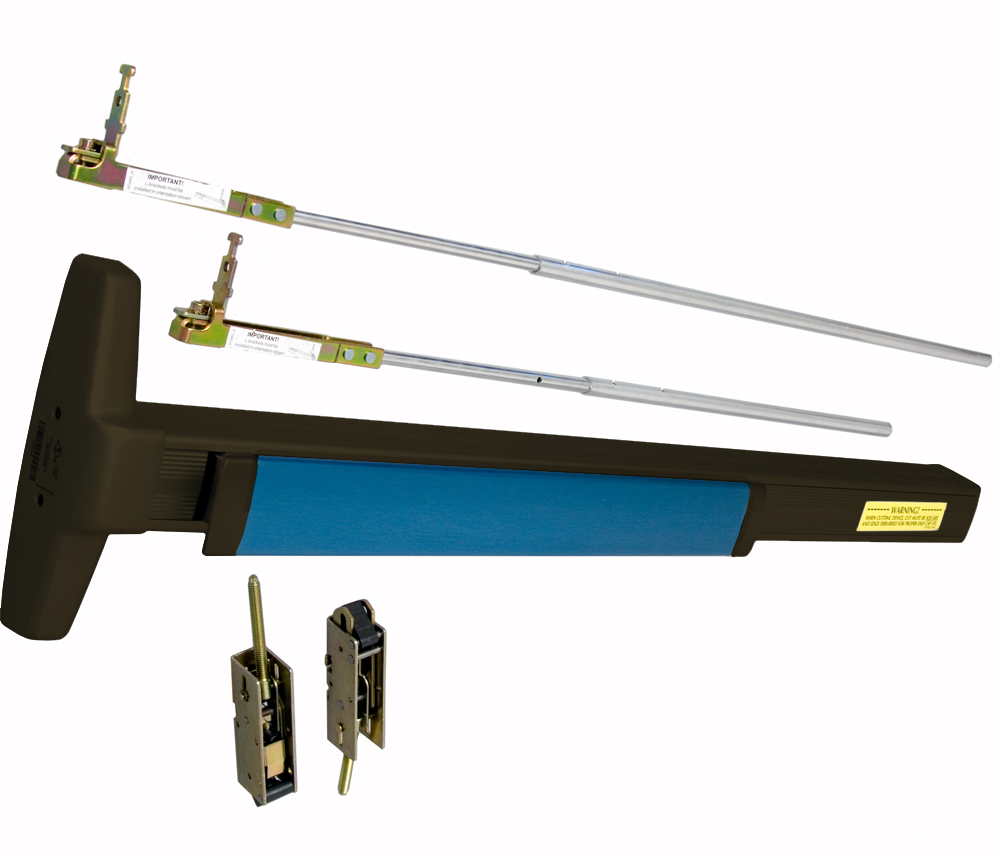

Von Duprin 3547A-EO-710-36 Narrow Stile CVR Concealed Vertical Rod Exit Device, 36in x 84in, Dark BronzeVon Duprin 3547A-EO-710-36 Narrow Stile CVR Concealed Vertical Rod Exit Device combines functionality and robust security in a sleek design. Ideal for both single and double doors, this exit device is UL listed for panic exit hardware and meets ANSI A156.3 Grade 1 standards, ensuring reliability in high-use environments such as schools, hospitals, and government facilities. This model features a hex dogging mechanism that secures the exit device in the open position, facilitating easy egress when needed. With a door size capability of 36 inches by 84 inches, the device is designed to fit door stiles as narrow as 2-1/8 inches, making it a versatile choice for various installations. The modular design allows for easy upgrades, accommodating evolving technology and security needs. The device's deadlocking anti-friction latch bolt provides enhanced security, while adjustable vertical rods ensure a precise fit for door sizes ranging from 6'8" to over 8'4." Available in a dark bronze finish, the 3547A-EO is not only functional but also stylish, seamlessly integrating into contemporary architectural aesthetics. Choose Von Duprin 3547A-EO-710-36 for a dependable exit solution that prioritizes safety without compromising on design.
Narrow Stile CVR Concealed Vertical Rod Exit Device, Exit Only No Trim, 36in x 84in, Hex Dogging, Grade 1, 710/313 Dark Bronze
Notice: The info below is not item specific.
3347A and 3547A for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. The 3547A has a smooth mechanism case and the 3347A has grooved case. The concealed vertical rod device is non-handed except when the SS (signal switch) option is used. 3347A/3547A fits door stiles as narrow as 2-1/8" (44 mm), wood door stiles as narrow as 4" (102mm). Newly designed device has a one piece center case cover.
Features:
- Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs
- Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
- A variety of field-configurable options and retrofit kits available
Specifications:
- Device Lengths:
- 2' 2' (610 mm) door size
- 3' 2'4' to 3' (660mm to 914mm) door size
- 4' 2'8" to 4' (813mm to 1219mm) door size
- Device Centerline From Finished Floor: 39 13/16" (1006 mm)
- Center Case: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
- Mechanism Case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
- Projection:
- Push bar neutral – 3 13⁄16" (97mm)
- Push bar depressed – 3 1⁄16" (78mm)
- Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16mm) throw
- Door Undercut: 1⁄4" (7mm)
- Top and Bottom Latch Case: 3-3/4" x 1-1/2" x 1" (89mm x 38mm x 25mm)
- Vertical Rods:
- Round 2 piece adjustable rods
- Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm)
- Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
- Extension rod kits available for doors over 8'4" (2533mm)
- Fasteners and Sex Bolts (SNB):
- Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood and metal doors
- #425 SNB furnished standard for end case
- #325 SNB furnished standard for EO (exit only device)
- Electrified Options:
- ALK: Alarm exit kit
- CX: Chexit delayed exit
- EL: Electric latch retraction
- ESL: Emergency Secure Lockdown
- HD-EL: Electric latch retraction with hex dogging
- LX: Latch bolt monitor switch
- LX-RX: Request to exit / latch bolt monitoring
- QEL: Quiet electric latch retraction
- RX: Request to exit
- WP-RX: Request to exit, waterproof option
- RX-LC, LX-LC, LX-RX-LC: Low current option for RX, LX, LX-RX
- SS: Signal switch
- CON: Allegion Connect
- Mechanical Options:
- GBK: Glass bead kit
- HH: Hurricane
- INS-2/INS-4: Insulclad kits 1/2" / 1/4" panels
- LBR: Less bottom rod
- PL: Pullman latch
- PN: Pneumatic
- SEC: Security screws
- SG: Safety glow
- SNB: Sex bolts
- WH: Weep holes
- Dogging Feature: Hex dogging standard
- Dogging Options:
- CD: Cylinder dogging
- CDSI: Cylinder dogging with security indicator
- HDSI: Hex dogging with security indicator
- LD: Less dogging
- Strikes:
- 283: top strike, For use with wood frames
- 338: Top Unfinished
- 385A: Bottom Unfinished
Trim:
- EO: No Outside Trim, Exit Only
- DT: Dummy Trim
- Pull when dogged (not recommended for fire device)
- NL: Night latch
- Key retracts latchbolt
- Rim cylinder
- NL-OP: Night Latch, Operational Pull
- Key retracts latchbolt, pull required
- K/L: Lever/Knob
- Key locks and unlocks
- Rim and 1-1/4" mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- L-BE/K-BE: Lever/Knob, Blank Escutcheon
- Always operable (no cylinder)
- TP: Thumbpiece
- Key locks and unlocks
- 1-1/4" mortise cylinder
- TL-BE: - Turn Lever, Blank Escutcheon
- Blank escutcheon always operable (no cylinder)
- TL: Turn Lever
- Key locks and unlocks (use with DT trim)
- 1-1/4" mortise cylinder
- TP-BE: Thumbpiece, Blank Escutcheon
- Blank escutcheon always operable (no cylinder, use with DT trim)
- TL-OP: Turn Lever, Optional Pull
Finishes:
- 605 - Bright brass
- 606 - Satin brass
- 612 - Satin bronze
- 619 - Satin nickel
- 622/711 - Matte black/matte black, anodized
- 625 - Bright chrome
- 626 - Satin chrome
- 626AM - Satin chrome, antimicrobial
- 628 - Aluminum, anodized
- 630 - Satin stainless steel
- 630AM - Satin stainless, antimicrobial
- 643e - Aged bronze
- 693 - Black, painted (not flat powder)
- 710 - Dark brown, anodized
Attributes
Category: Commercial Electric Locks, CVR Panic Devices, Electric Locks, Glass Aluminum Hardware, Lock Sets, Narrow Style Electric Locks, Narrow Style Panic Devices, Panic Devices, Panic Devices & Exit Alarms, Standalone/Pushbutton Locks
Certifications: A156.3, ANSI, ANSI/UL 10C, ANSI/UL 305, BHMA
Device Width: 36"
Dogging: HD - Hex Dogging
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Concealed Vertical Rod Exit CVR
Fasteners: Sex Bolts
Finish Code: 710
Finish Color: Dark Bronze Anodized, Dark Bronze/Clear Coat, Duranotic Dark Bronze
Function: Exit Only
Grade: Grade 1
Manufacturer: Von Duprin
Series: 33/35
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
