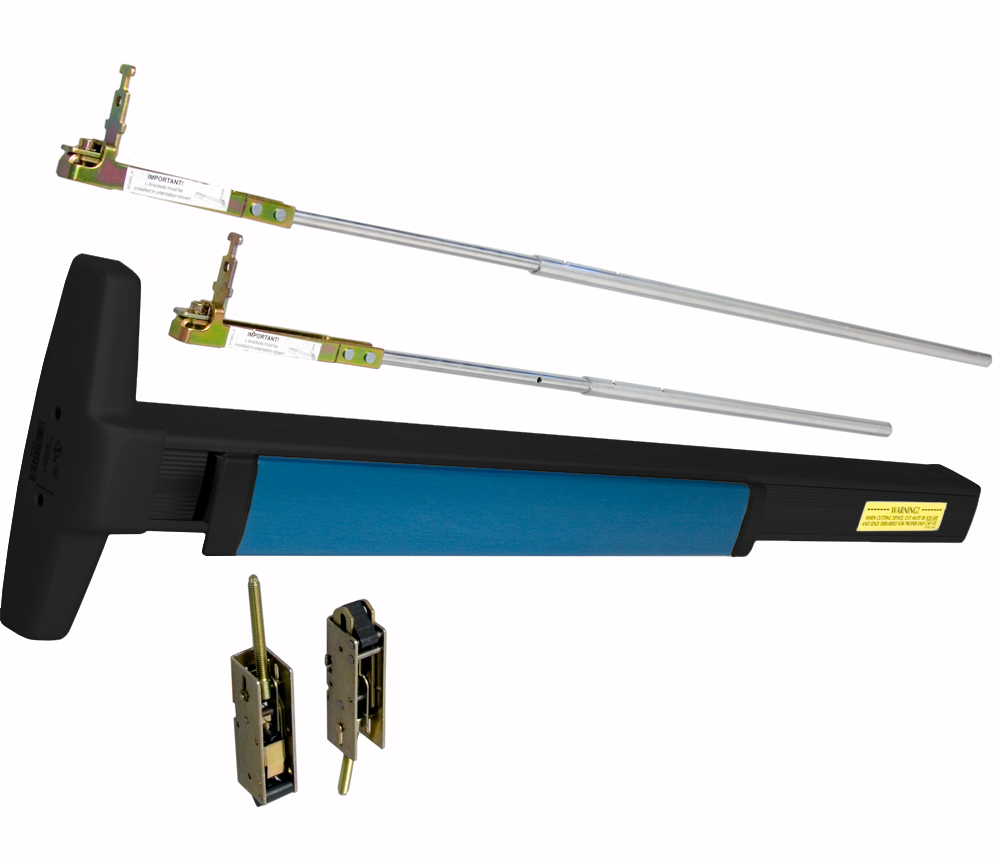

Von Duprin 3547A-EO-711-36 Narrow Stile CVR Concealed Vertical Rod Exit Device, 36"x84", Flat Black

Von Duprin 3547A-EO-711-36 Narrow Stile CVR Concealed Vertical Rod Exit Device is engineered for reliable performance in high-traffic environments, making it an ideal choice for schools, hospitals, and government facilities. This exit-only device, measuring 36 inches in width and 84 inches in height, features hex dogging for enhanced security and ease of use. With a Grade 1 rating, it meets rigorous ANSI A156.3 – 2008 standards, ensuring durability and reliability. Designed for narrow door stiles as slim as 2-1/8 inches, the 3547A accommodates both wood and metal door applications, enhancing its versatility. The modular design allows for easy upgrades, adapting to evolving technology and the specific needs of a facility. The device includes a smooth mechanism case, contributing to its aesthetic appeal and functionality. Additional features such as deadlocking anti-friction latches, adjustable vertical rods, and the option for various electrified and mechanical configurations enhance its adaptability. The unit comes in a sleek flat black finish, blending seamlessly with modern architectural styles. With field-configurable options and extension rod kits available for taller doors, the Von Duprin 3547A-EO-711-36 is a premier solution for effective and secure exit management.

Narrow Stile CVR Concealed Vertical Rod Exit Device, Exit Only No Trim, 36in x 84in, Hex Dogging, Grade 1, 711/315 Flat Black

3347A and 3547A for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. The 3547A has a smooth mechanism case and the 3347A has grooved case. The concealed vertical rod device is non-handed except when the SS (signal switch) option is used. 3347A/3547A fits door stiles as narrow as 2-1/8" (44 mm), wood door stiles as narrow as 4" (102mm). Newly designed device has a one piece center case cover.

Features:

• Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs
• Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
• A variety of field-configurable options and retrofit kits available

Specifications:

• Device Lengths:
• 2' 2' (610 mm) door size
• 3' 2'4' to 3' (660mm to 914mm) door size
• 4' 2'8" to 4' (813mm to 1219mm) door size
• Device Centerline From Finished Floor: 39 13/16" (1006 mm)
• Center Case: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
• Mechanism Case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
• Projection:
• Push bar neutral – 3 13⁄16" (97mm)
• Push bar depressed – 3 1⁄16" (78mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16mm) throw
• Door Undercut: 1⁄4" (7mm)
• Top and Bottom Latch Case: 3-3/4" x 1-1/2" x 1" (89mm x 38mm x 25mm)
• Vertical Rods:
• Round 2 piece adjustable rods
• Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm)
• Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
• Extension rod kits available for doors over 8'4" (2533mm)
• Fasteners and Sex Bolts (SNB):
• Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood and metal doors
• #425 SNB furnished standard for end case
• #325 SNB furnished standard for EO (exit only device)
• Electrified Options:
• ALK: Alarm exit kit
• CX: Chexit delayed exit
• EL: Electric latch retraction
• ESL: Emergency Secure Lockdown
• HD-EL: Electric latch retraction with hex dogging
• LX: Latch bolt monitor switch
• LX-RX: Request to exit / latch bolt monitoring
• QEL: Quiet electric latch retraction
• RX: Request to exit
• WP-RX: Request to exit, waterproof option
• RX-LC, LX-LC, LX-RX-LC: Low current option for RX, LX, LX-RX
• SS: Signal switch
• CON: Allegion Connect
• Mechanical Options:
• GBK: Glass bead kit
• HH: Hurricane
• INS-2/INS-4: Insulclad kits 1/2" / 1/4" panels
• LBR: Less bottom rod
• PL: Pullman latch
• PN: Pneumatic
• SEC: Security screws
• SG: Safety glow
• SNB: Sex bolts
• WH: Weep holes
• Dogging Feature: Hex dogging standard
• Dogging Options:
• CD: Cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• LD: Less dogging
• Strikes:
• 283: top strike, For use with wood frames
• 338: Top Unfinished
• 385A: Bottom Unfinished

Trim:

• EO: No Outside Trim, Exit Only
• DT: Dummy Trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim cylinder
• NL-OP: Night Latch, Operational Pull
• Key retracts latchbolt, pull required
• K/L: Lever/Knob
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• L-BE/K-BE: Lever/Knob, Blank Escutcheon
• Always operable (no cylinder)
• TP: Thumbpiece
• Key locks and unlocks
• 1-1/4" mortise cylinder
• TL-BE: - Turn Lever, Blank Escutcheon
• Blank escutcheon always operable (no cylinder)
• TL: Turn Lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TP-BE: Thumbpiece, Blank Escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)
• TL-OP: Turn Lever, Optional Pull

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 622/711 - Matte black/matte black, anodized
• 625 - Bright chrome
• 626 - Satin chrome
• 626AM - Satin chrome, antimicrobial
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 630AM - Satin stainless, antimicrobial
• 643e - Aged bronze
• 693 - Black, painted (not flat powder)
• 710 - Dark brown, anodized
