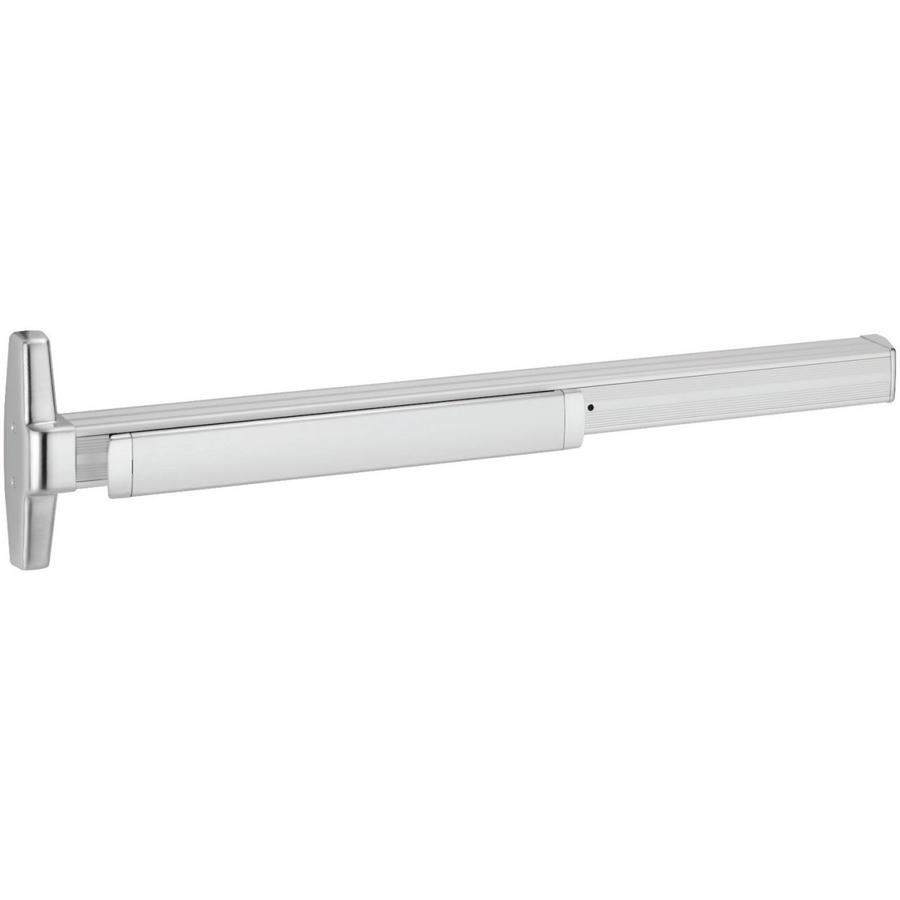

Von Duprin 3549A-EO-626-36 Narrow Stile CVC Exit Device, Exit Only, 36in-96in, Hex Dogging, Grade 1, Satin Chrome

Von Duprin 3549A-EO-626-36 Narrow Stile CVC Exit Device offers a reliable and efficient solution for panic exit hardware. Designed specifically for hollow metal single and double doors, this exit device is UL listed and meets ANSI A156.3 – 2008 (Grade 1) standards, ensuring safety and durability. The exit-only configuration features a sleek design without outside trim, making it ideal for high-traffic commercial environments. With a device length of 36 inches and adjustable height from 82 to 96 inches, the 3549A-EO fits door stiles as narrow as 2 1/8 inches. This model integrates a concealed vertical cable mechanism that operates smoothly, thanks to its innovative one-piece center case cover and hex key dogging feature. The deadlocking anti-friction latch bolt provides a 1/2-inch throw for enhanced security. Constructed with stainless steel vertical cables and finished in a sophisticated satin chrome (626/US26D), this exit device not only performs well but also complements modern architectural styles. It includes essential fasteners and sex bolts for straightforward installation. Whether for emergency exits or regular use, the Von Duprin 3549A-EO-626-36 delivers peace of mind with its robust design and reliable performance.

Narrow Stile CVC (Concealed Vertical Cable) Exit Device, Exit Only No Trim, 36in x Adjustable up to 96in, Hex Dogging, Grade 1, 626/US26D Satin Chrome

3349A and 3549A for hollow metal single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 (LBL option 2014) grade 1. The 3549A has a smooth mechanism case and the 3349A has grooved case. The concealed vertical cable device is non-handed except when the SS (signal switch) option is used. 3349A/3549A fits door stiles as narrow as 2 1/8" (44 mm). Newly designed device has a one piece center case cover.

Specifications:

• Device Lengths:
• 2' - 2' (610 mm) door size
• 3' - 2'4' to 3' (660mm to 914mm) door size
• 4' - 2'8" to 4' (813mm to 1219mm) door size
• Device Centerline From Finished Floor: 39 13/16" (1006mm)
• Center Case: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
• Mechanism Case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
• Projection:
• Push bar neutral – 3 13⁄16" (97mm)
• Push bar depressed – 3 1⁄16" (78mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt 1/2" (13mm) throw
• Door Undercut: 3/4" (19mm) maximum
• Top and Bottom Latch Case: 5 13/16" x 1 1/4" x 1 7/16" (147mm x 32mm x 37mm)
• Vertical Cables: 7/32" (6mm) diameter stainless steel cables
• Fasteners and Sex Bolts (SNB):
• Includes 1 3/4" (44mm) – 2 1/4" (57mm) metal doors
• #425 SNB furnished standard for end case
• #325 SNB furnished standard for EO (exit only device)
• Electrified Options:
• ALK: Alarm exit kit
• CX: Chexit delayed exit
• EL: Electric latch retraction
• ESL: Emergency Secure Lockdown
• HD-EL: Electric latch retraction with hex dogging
• LX: Latch bolt monitor switch. For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• LX-RX: Request to exit / latch bolt monitoring. For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• QEL: Quiet electric latch retraction
• RX: Request to exit
• WP-RX: Request to exit, waterproof option
• RX-LC, LX-LC, LX-RX-LC: Low current option for RX, LX, LX-RX. For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• SS: Signal switch
• CON: Allegion Connect
• Mechanical Options:
• AX: Accessible device
• GBK: Glass bead kit
• HH: Hurricane
• INS-2/INS-4: Insulclad kits 1/2" / 1/4" panels
• LBL: Less bottom latch
• PL: Pullman latch
• PN: Pneumatic
• SEC: Security screws
• SG: Safety glow
• SNB: Sex bolts
• WH: Weep holes
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• LD: Less dogging
• Strikes:
• 249: Top
• 349: Bottom

Trim:

• EO: No Outside Trim, Exit Only
• DT: Dummy Trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim cylinder
• NL-OP: Night Latch, Operational Pull
• Key retracts latchbolt, pull required
• K/L: Lever/Knob
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• L-BE/K-BE: Lever/Knob, Blank Escutcheon
• Always operable (no cylinder)
• TP: Thumbpiece
• Key locks and unlocks
• 1-1/4" mortise cylinder
• TL-BE: - Turn Lever, Blank Escutcheon
• Blank escutcheon always operable (no cylinder)
• TL: Turn Lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TP-BE: Thumbpiece, Blank Escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)
• TL-OP: Turn Lever, Optional Pull

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 622/711 - Matte black/matte black, anodized
• 625 - Bright chrome
• 626 - Satin chrome
• 626AM - Satin chrome, antimicrobial
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 630AM - Satin stainless, antimicrobial
• 643e - Aged bronze
• 693 - Black, painted (not flat powder)
• 710 - Dark brown, anodized
