Von Duprin 3549A-EO-710-36 Narrow Stile CVC Concealed Vertical Exit Device, 36in-96in, Hex Dogging, Grade 1

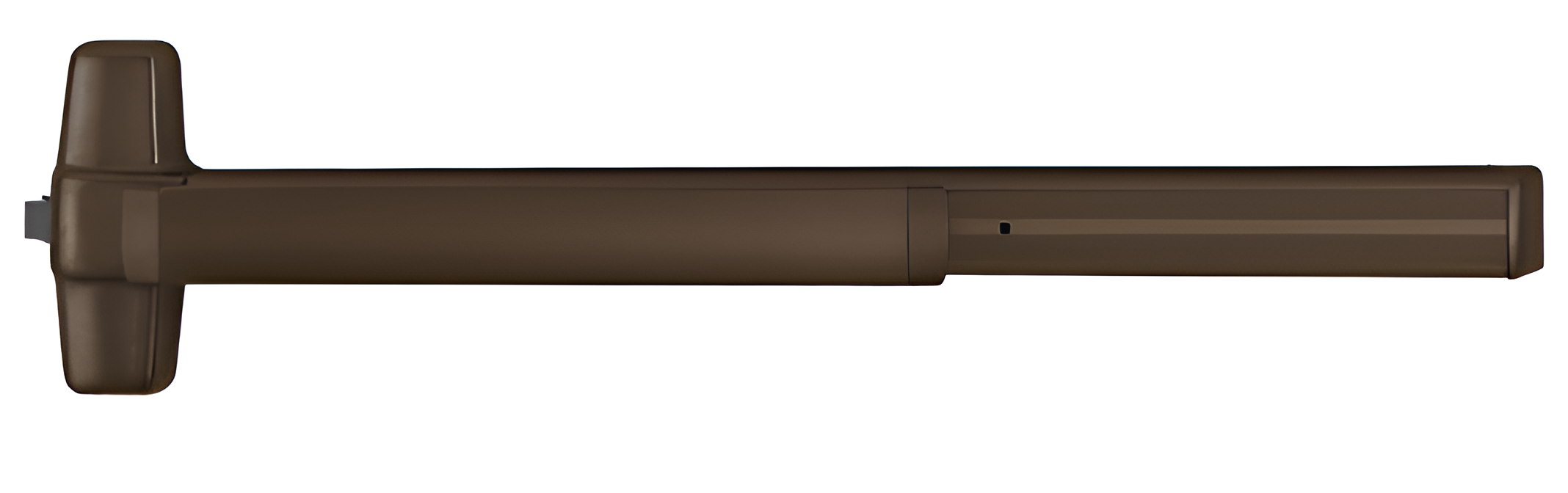

Von Duprin 3549A-EO-710-36 Narrow Stile CVC Concealed Vertical Cable Exit Device offers a robust solution for emergency exits in commercial settings. Designed for hollow metal single and double doors, this exit device is UL listed for panic exit hardware and meets ANSI A156.3 – 2008 (Grade 1) standards, ensuring reliability and security. This model features a sleek, concealed vertical cable design that fits door stiles as narrow as 2 1/8 inches, making it ideal for modern architectural needs. The device measures 36 inches in width and can be adjusted for door heights ranging from 82 to 96 inches, providing versatile installation options. A smooth mechanism case enhances aesthetic appeal while ensuring seamless operation. The 3549A includes a hex key dogging feature for easy locking and unlocking, along with a deadlocking anti-friction latch bolt with a 1/2-inch throw for enhanced security. Additionally, the stainless steel vertical cables offer durability and strength. Available in a dark bronze finish, the Von Duprin 3549A-EO-710-36 is designed to withstand the rigors of high-traffic environments while maintaining an elegant appearance. This exit device is perfect for those seeking a combination of security, functionality, and style in their panic exit solutions.

Narrow Stile CVC Concealed Vertical Cable Exit Device, Exit Only No Trim, 36in x Adjustable up to 96in, Hex Dogging, Grade 1, 710/313 Dark Bronze

3349A and 3549A for hollow metal single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 (LBL option 2014) grade 1. The 3549A has a smooth mechanism case and the 3349A has grooved case. The concealed vertical cable device is non-handed except when the SS (signal switch) option is used. 3349A/3549A fits door stiles as narrow as 2 1/8" (44 mm). Newly designed device has a one piece center case cover.

Specifications:

• Device Lengths:
• 2' - 2' (610 mm) door size
• 3' - 2'4' to 3' (660mm to 914mm) door size
• 4' - 2'8" to 4' (813mm to 1219mm) door size
• Device Centerline From Finished Floor: 39 13/16" (1006mm)
• Center Case: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
• Mechanism Case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
• Projection:
• Push bar neutral – 3 13⁄16" (97mm)
• Push bar depressed – 3 1⁄16" (78mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt 1/2" (13mm) throw
• Door Undercut: 3/4" (19mm) maximum
• Top and Bottom Latch Case: 5 13/16" x 1 1/4" x 1 7/16" (147mm x 32mm x 37mm)
• Vertical Cables: 7/32" (6mm) diameter stainless steel cables
• Fasteners and Sex Bolts (SNB):
• Includes 1 3/4" (44mm) – 2 1/4" (57mm) metal doors
• #425 SNB furnished standard for end case
• #325 SNB furnished standard for EO (exit only device)
• Electrified Options:
• ALK: Alarm exit kit
• CX: Chexit delayed exit
• EL: Electric latch retraction
• ESL: Emergency Secure Lockdown
• HD-EL: Electric latch retraction with hex dogging
• LX: Latch bolt monitor switch. For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• LX-RX: Request to exit / latch bolt monitoring. For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• QEL: Quiet electric latch retraction
• RX: Request to exit
• WP-RX: Request to exit, waterproof option
• RX-LC, LX-LC, LX-RX-LC: Low current option for RX, LX, LX-RX. For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• SS: Signal switch
• CON: Allegion Connect
• Mechanical Options:
• AX: Accessible device
• GBK: Glass bead kit
• HH: Hurricane
• INS-2/INS-4: Insulclad kits 1/2" / 1/4" panels
• LBL: Less bottom latch
• PL: Pullman latch
• PN: Pneumatic
• SEC: Security screws
• SG: Safety glow
• SNB: Sex bolts
• WH: Weep holes
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• LD: Less dogging
• Strikes:
• 249: Top
• 349: Bottom

Trim:

• EO: No Outside Trim, Exit Only
• DT: Dummy Trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim cylinder
• NL-OP: Night Latch, Operational Pull
• Key retracts latchbolt, pull required
• K/L: Lever/Knob
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• L-BE/K-BE: Lever/Knob, Blank Escutcheon
• Always operable (no cylinder)
• TP: Thumbpiece
• Key locks and unlocks
• 1-1/4" mortise cylinder
• TL-BE: - Turn Lever, Blank Escutcheon
• Blank escutcheon always operable (no cylinder)
• TL: Turn Lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TP-BE: Thumbpiece, Blank Escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)
• TL-OP: Turn Lever, Optional Pull

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 622/711 - Matte black/matte black, anodized
• 625 - Bright chrome
• 626 - Satin chrome
• 626AM - Satin chrome, antimicrobial
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 630AM - Satin stainless, antimicrobial
• 643e - Aged bronze
• 693 - Black, painted (not flat powder)
• 710 - Dark brown, anodized

Features

• GBK: Glass bead kit
• LX-RX: Request to exit / latch bolt monitoring. For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• LX: Latch bolt monitor switch. For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• Top and Bottom Latch Case: 5 13/16" x 1 1/4" x 1 7/16" (147mm x 32mm x 37mm)
• WP-RX: Request to exit, waterproof option
• PN: Pneumatic
• RX-LC, LX-LC, LX-RX-LC: Low current option for RX, LX, LX-RX. For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• Push bar neutral – 3 13⁄16" (97mm)
• 349: Bottom
• SG: Safety glow
• SS: Signal switch
• 3' - 2'4' to 3' (660mm to 914mm) door size
• Fasteners and Sex Bolts (SNB):
• Mechanism Case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
• Electrified Options:
• 4' - 2'8" to 4' (813mm to 1219mm) door size
• Strikes:
• LBL: Less bottom latch
• SEC: Security screws
• Push bar depressed – 3 1⁄16" (78mm)
• 249: Top
• Includes 1 3/4" (44mm) – 2 1/4" (57mm) metal doors
• Latch Bolt: Deadlocking anti-friction top and bottom bolt 1/2" (13mm) throw
• Center Case: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
• Projection:
• RX: Request to exit
• Device Centerline From Finished Floor: 39 13/16" (1006mm)
• LD: Less dogging
• ALK: Alarm exit kit
• 2' - 2' (610 mm) door size
• AX: Accessible device
• ESL: Emergency Secure Lockdown
• #325 SNB furnished standard for EO (exit only device)
• EL: Electric latch retraction
• Dogging Feature: Hex key dogging standard
• SNB: Sex bolts
• Vertical Cables: 7/32" (6mm) diameter stainless steel cables
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• Door Undercut: 3/4" (19mm) maximum
• PL: Pullman latch
• Device Lengths:
• HD-EL: Electric latch retraction with hex dogging
• CDSI: Cylinder dogging with security indicator
• CX: Chexit delayed exit
• Dogging Options:
• HDSI: Hex dogging with security indicator
• HH: Hurricane
• INS-2/INS-4: Insulclad kits 1/2" / 1/4" panels
• CD: Cylinder dogging
• #425 SNB furnished standard for end case
• WH: Weep holes
